7.2 Oxygen System
Chapter 7: Accessories
Isolette® Infant Incubator (Model C2000) Service Manual Page 7 - 9
7
6. Connect the oxygen sensor cells (E) to the sensor cell connectors
(D).
7. Install the two screws (B) to secure the oxygen cell mounting plate
(F) and the oxygen sensor cover (C) to the sensor module assembly
(A).
8. Install the sensor module assembly (A) in the hood (refer to
procedure 4.2 on page 4-6).
9. Remove the two Nylok®
1
screws (G) that secure the pneumatic
module access door (H) to the shell assembly (I) (see figure 7-4 on
page 7-9). Discard the two Nylok® screws (G).

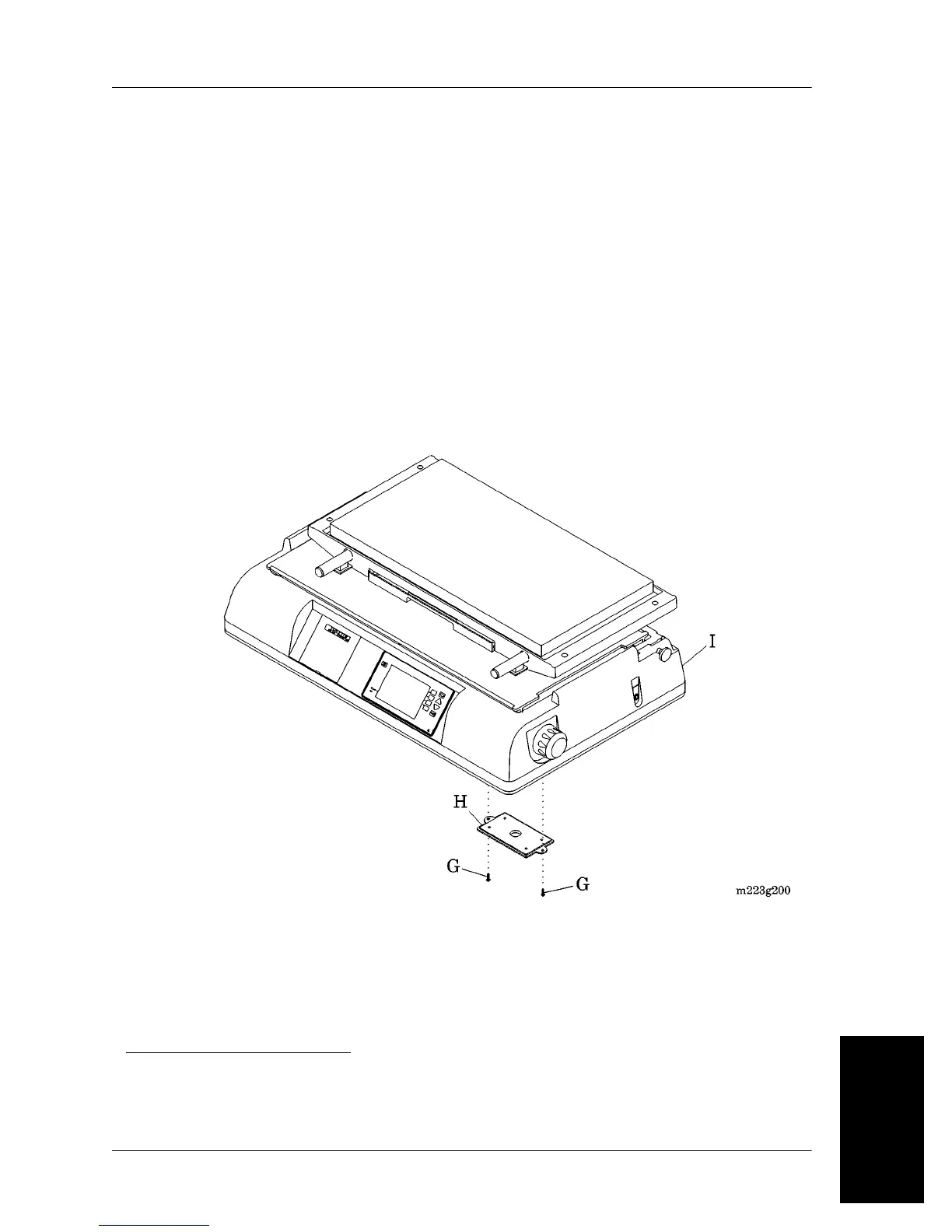

Figure 7-4. Pneumatic Module Access Door
10.Reach into the opening in the shell assembly (I), and perform the
following (see figure 7-5 on page 7-11):
a. Using a flashlight, locate the oxygen hose (J).
1. Nylok® is a registered trademark of Nylok Fastener Corporation.
