4.19 Air Intake Microfilter
Chapter 4: Removal, Replacement, and Adjustment Procedures
Isolette® Infant Incubator (Model C2000) Service Manual Page 4 - 51
4
4.19 Air Intake Microfilter
Tools required: None
Removal
1. Loosen the two thumbscrews (A) that secure the air intake
microfilter cover (B) to the unit (see figure 4-24 on page 4-51).

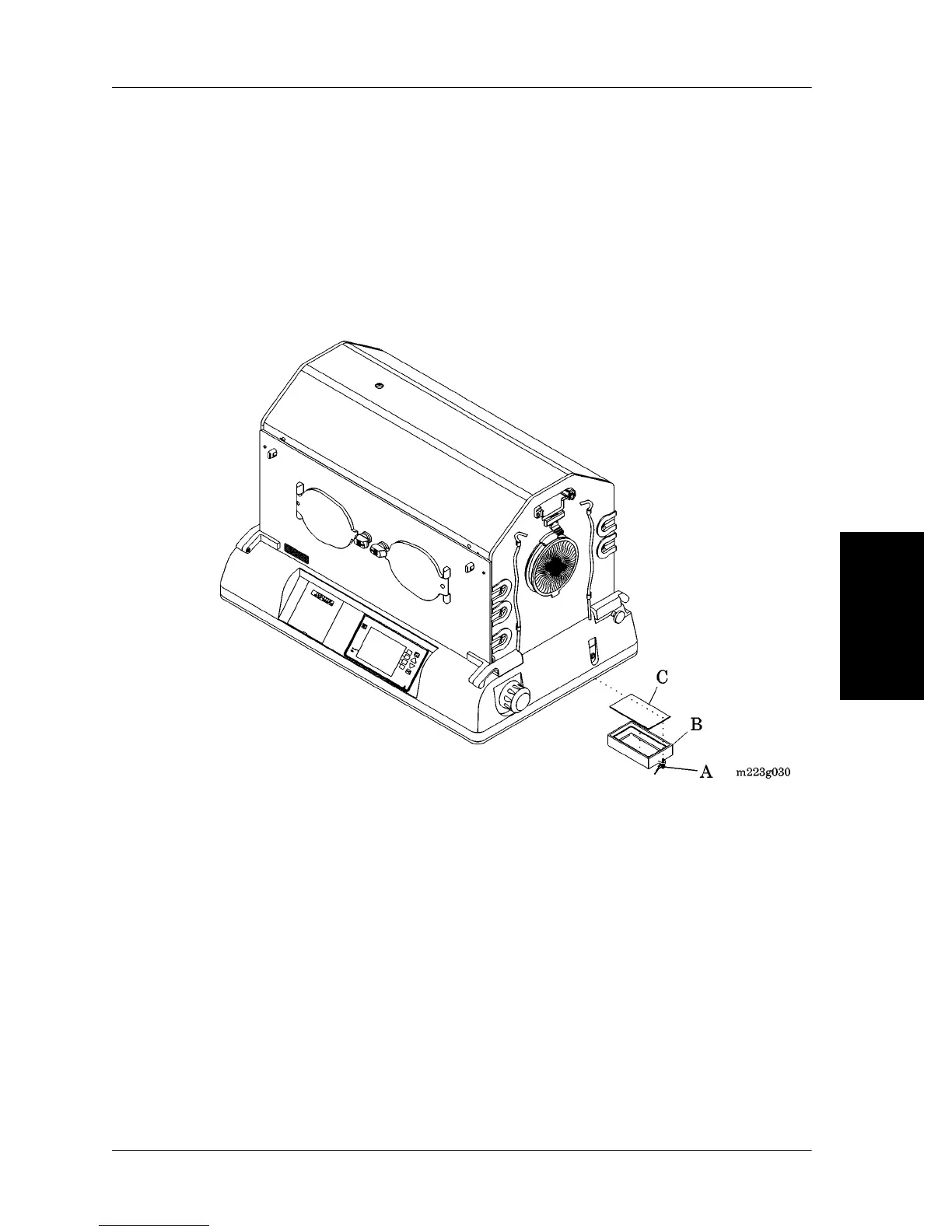

Figure 4-24. Air Intake Microfilter
2. Remove the air intake microfilter cover (B) from the unit.
3. Remove the air intake microfilter (C) from the air intake microfilter
cover (B).
Replacement
1. Perform the removal procedure in reverse order.
2. To ensure proper operation of the Isolette® Infant Incubator,
perform the “Function Checks” on page 2-6.
