4.11 Iris Entry Port Sleeve
Chapter 4: Removal, Replacement, and Adjustment Procedures
Isolette® Infant Incubator (Model C2000) Service Manual Page 4 - 33
4
4.11 Iris Entry Port Sleeve
Tools required: None
Removal
Pull the iris entry port sleeve (A) off the port housing (B) (see figure 4-14
on page 4-33).

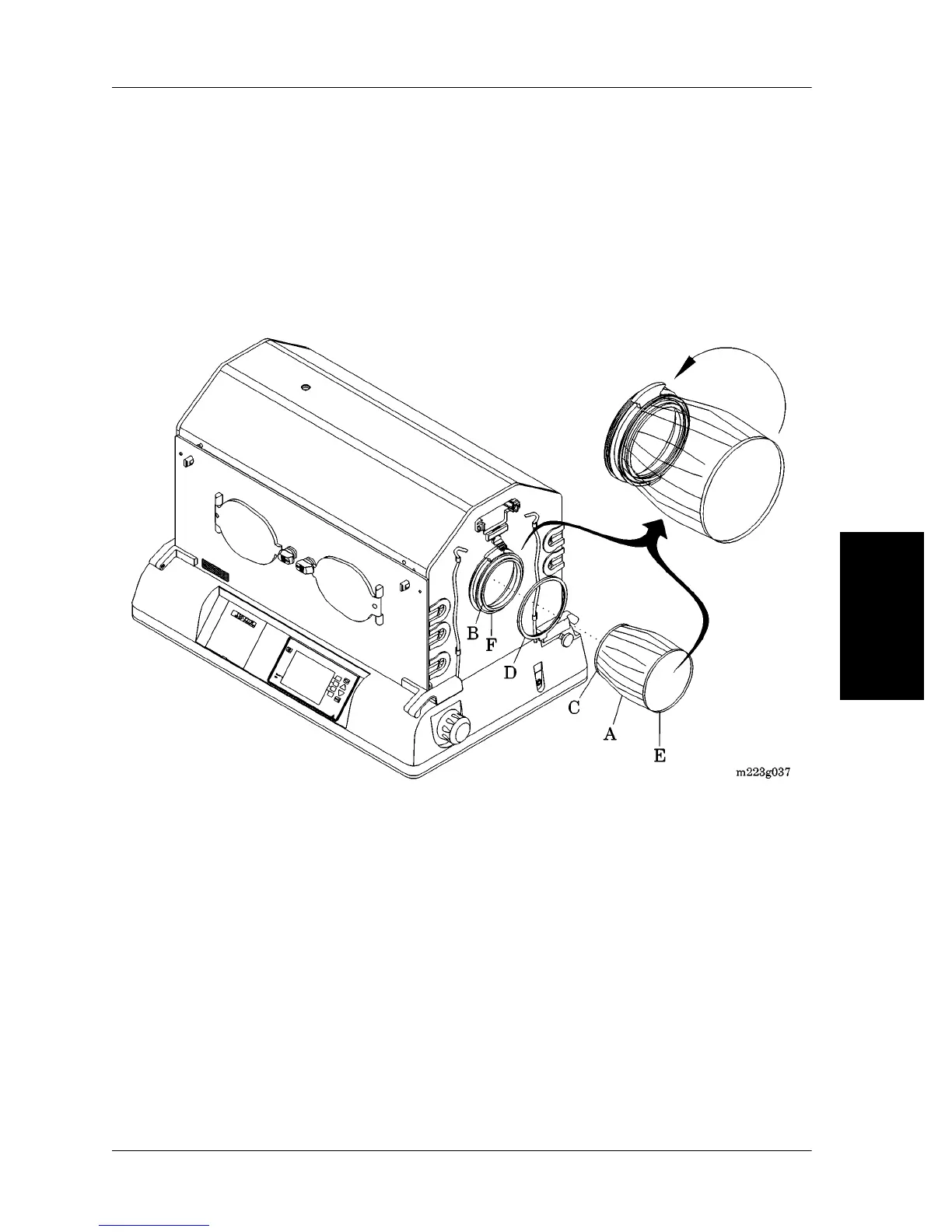

Figure 4-14. Iris Entry Port Sleeve
Replacement
1. Install the smaller diameter elastic band (C) of a new iris entry port
sleeve (A) over the inner ring (D) of the port housing (B).
2. Fold the iris entry port sleeve (A) back upon itself, and slip the larger
elastic band (E) over the outer ring (F) of the port housing (B).
3. Rotate the outer ring (F) to close.
