7.3 Humidity System
Chapter 7: Accessories
Isolette® Infant Incubator (Model C2000) Service Manual Page 7 - 19
7
Installing the Humidity System (Series 02 Models)
1. Connect the AC wiring harness assembly (L) to the connector of the
evaporator assembly (V) (see figure 7-10 on page 7-19).

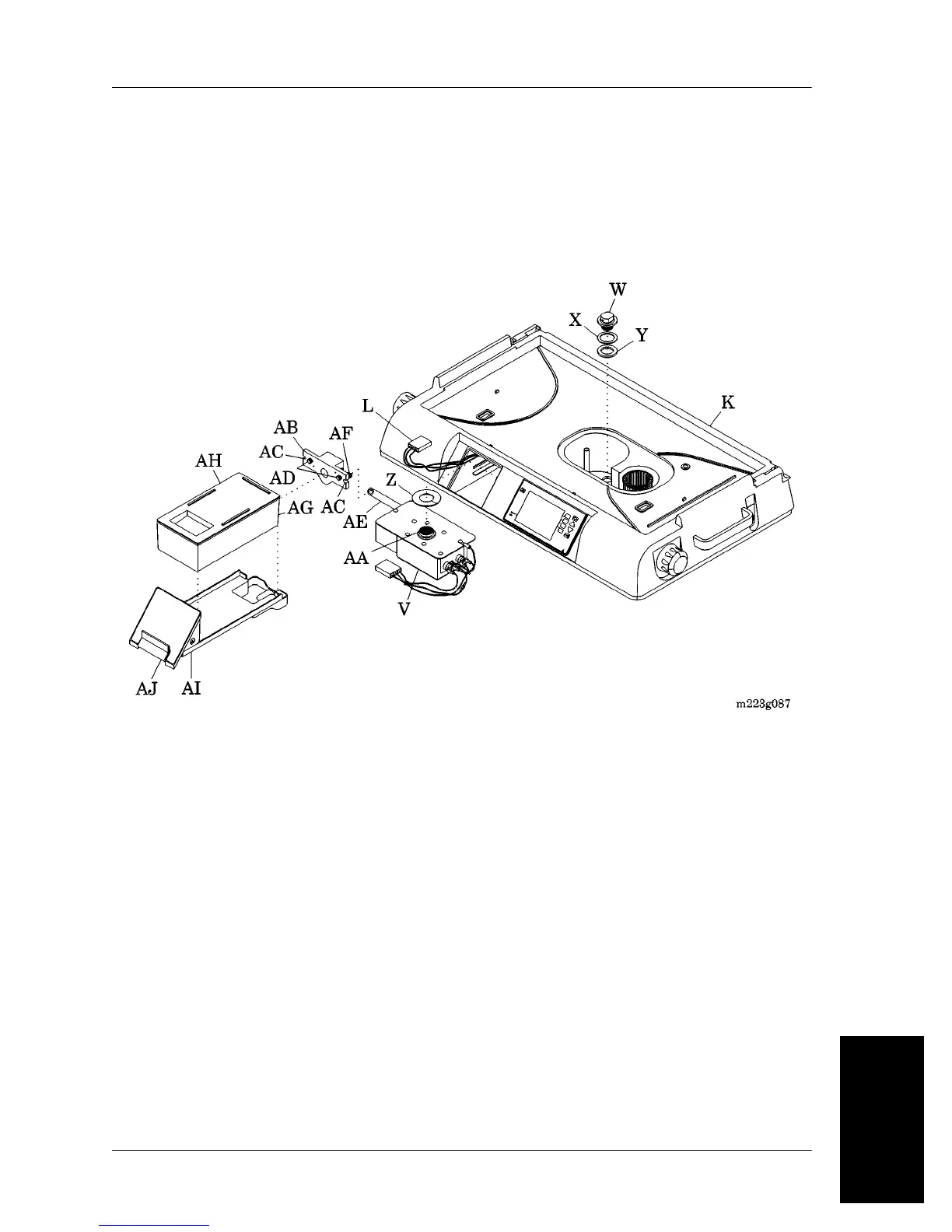

Figure 7-10. Humidity System (Series 02 Models)
2. Remove the evaporator cap (W), the stainless steel flat washer (X),
and the silicone flat washer (Y) from the top of the evaporator
assembly (V). Leave the polypropylene flatwasher (Z) in place.
3. Place the evaporator assembly (V) into the shell assembly (K), and
insert its collar (AA) through the hole in the top of the shell assembly
(K).
4. Install the evaporator cap (W), the stainless steel flatwasher (X), and
the silicone flatwasher (Y) to secure the evaporator assembly (V) to
the shell assembly (K).
5. Orient the humidity manifold assembly (AB) provided so that its
mounting tabs (AC) are horizontal and to the front, and slide the
humidity manifold assembly (AB) to the rear of the humidity cavity.
