4.23 Sensor Module-To-Controller Cable Assembly
Chapter 4: Removal, Replacement, and Adjustment Procedures
Isolette® Infant Incubator (Model C2000) Service Manual Page 4 - 67
4
10.Remove the two hex nuts (J) that secure the sensor module-to-
controller cable assembly (K) to the shell assembly (C) (see figure
4-30 on page 4-67).

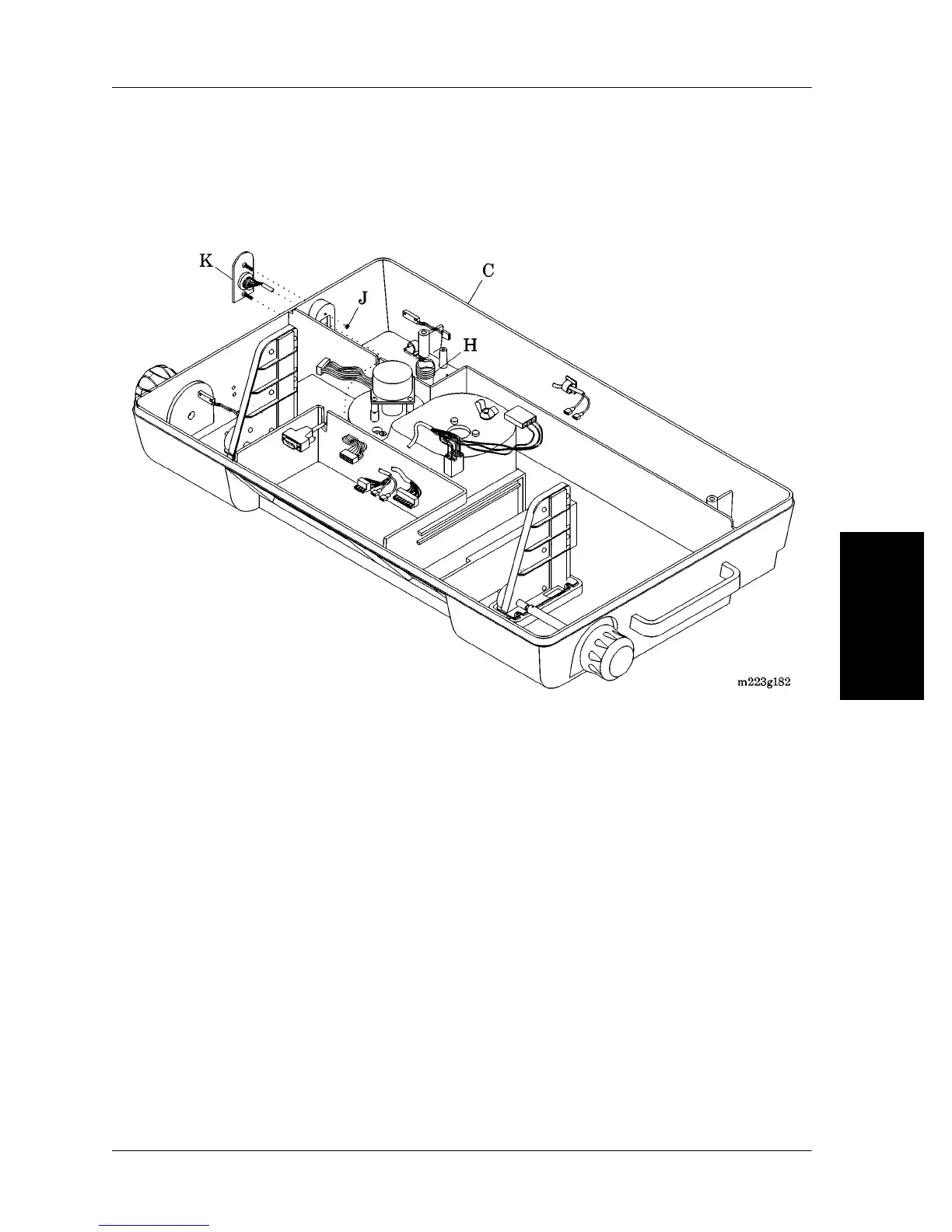

Figure 4-30. Sensor Module-to-Controller Cable Assembly
11. Carefully remove the sensor module-to-controller cable assembly
(K) from the shell assembly (C).
Replacement
1. Route the sensor module-to-controller cable assembly (K) through
the slots in the shell assembly (C).
2. Install the two hex nuts (J) to secure the sensor module-to-controller
cable assembly (K) to the shell assembly (C).
3. Connect the corrugated hose (H) to the shell assembly (C).
