4.28 Pivot/Hook Lock Assembly Bracket
Chapter 4: Removal, Replacement, and Adjustment Procedures
Page 4 - 78 Isolette® Infant Incubator (Model C2000) Service Manual
3. Remove the one or two Nylok®
1
screws (C) that secure the
pivot/hook lock assembly bracket (D) to the shell assembly (B).
Discard the two Nylok® screws (C).
4. Remove the pivot/hook lock assembly bracket (D) from the shell
assembly (B).
Replacement
1. Refer to the data tag (E) on the back of the shell assembly (B) to
check the series number (see figure 4-37 on page 4-78):

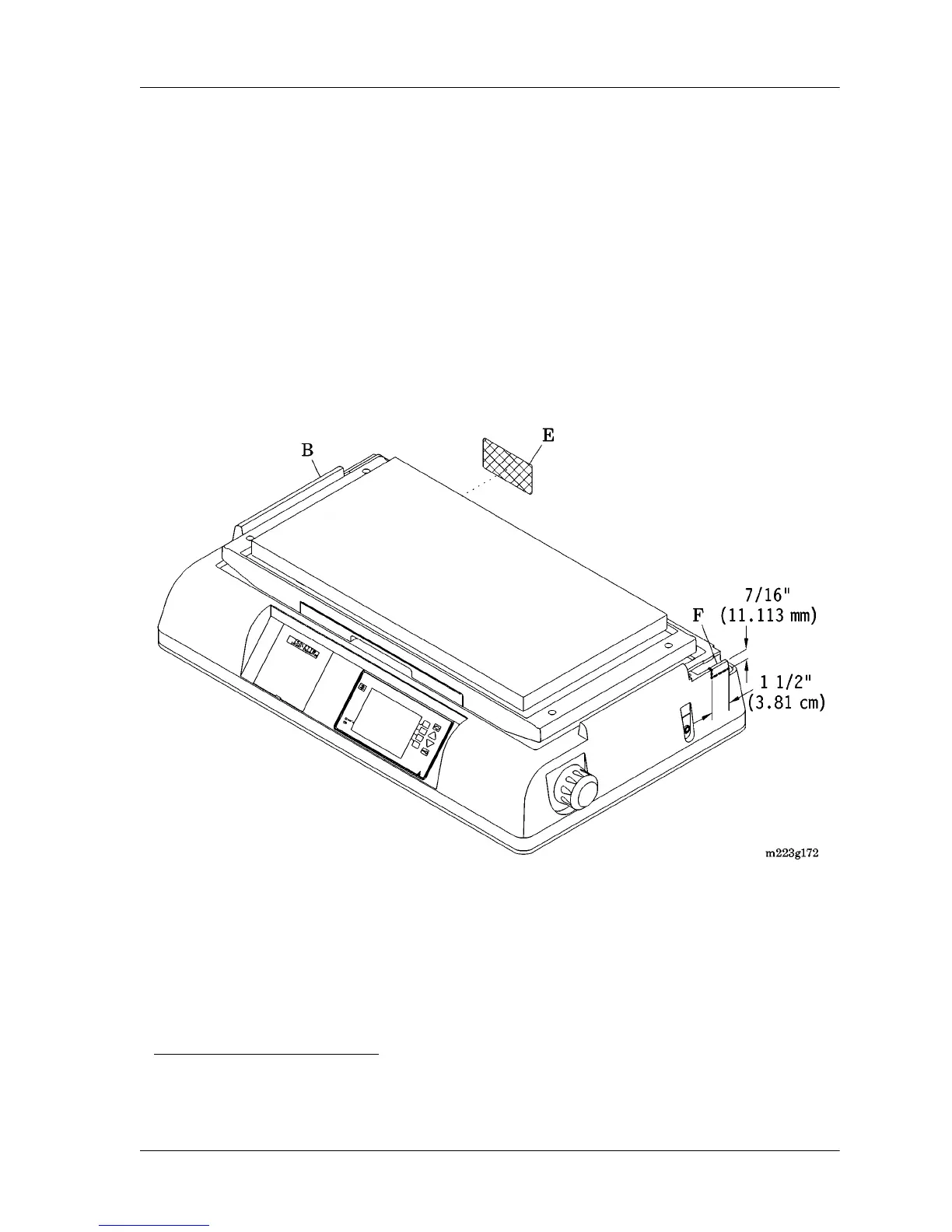

Figure 4-37. Series 00 or 01 Model Shell Assembly
• If the shell assembly (B) is a Series 02 or later model, go to step 2.
• If the shell assembly (B) is a Series 00 or 01 model, perform the
following:
a. Using a ruler and pencil, measure and mark a 7/16" (11.113 mm)
x 1½" (3.81 cm) notch at the rear corner of the shell assembly
(B).
1. Nylok® is a registered trademark of Nylok Fastener Corporation.
