4.33 Sensor Module Lock (Models with Sensor Module Lock Only)
Chapter 4: Removal, Replacement, and Adjustment Procedures
Page 4 - 94 Isolette® Infant Incubator (Model C2000) Service Manual
4.33 Sensor Module Lock (Models with Sensor Module Lock Only)
Tools required: Phillips head screwdriver
Removal
1. Remove the sensor module assembly from the hood assembly
(refer to procedure 4.2 on page 4-6).
2. From inside the hood assembly (A), remove the two Nylok®
1
screws
(B) that secure the slide fixture cover plate (C) to the hood assembly
(A) (see figure 4-49 on page 4-94).

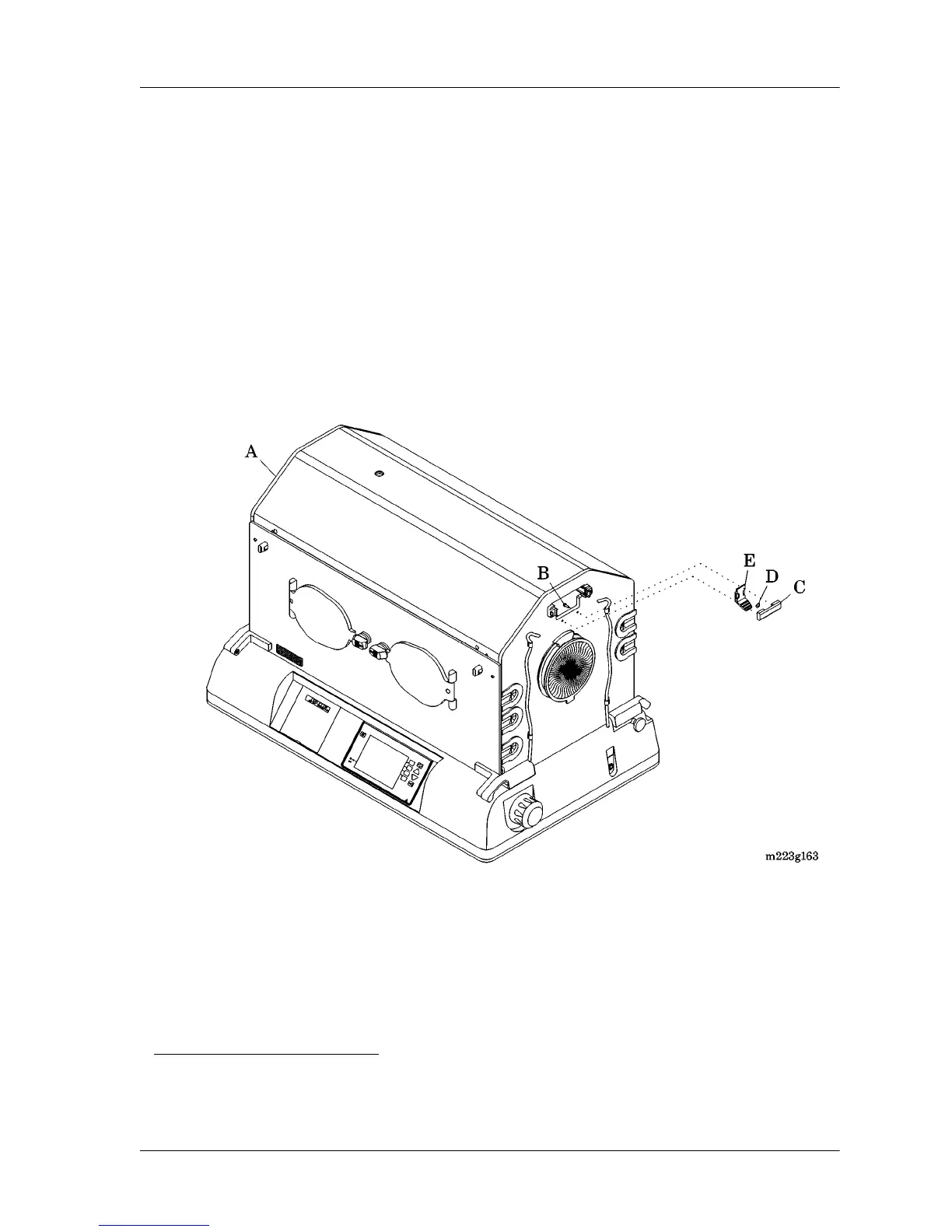

Figure 4-49. Sensor Module Lock
3. Remove the slide fixture cover plate (C), the curved spring washer
(D), and the slide lock (E) from the hood assembly (A).
1. Nylok® is a registered trademark of Nylok Fastener Corporation.
