4.24 Access Panel Pawl Latch and Knob Assembly
Chapter 4: Removal, Replacement, and Adjustment Procedures
Page 4 - 70 Isolette® Infant Incubator (Model C2000) Service Manual
4.24 Access Panel Pawl Latch and Knob Assembly
Tools required: Pliers (two pair)
Clean cloth
Removal
1. Release the access door latch (A) (see figure 4-31 on page 4-70).

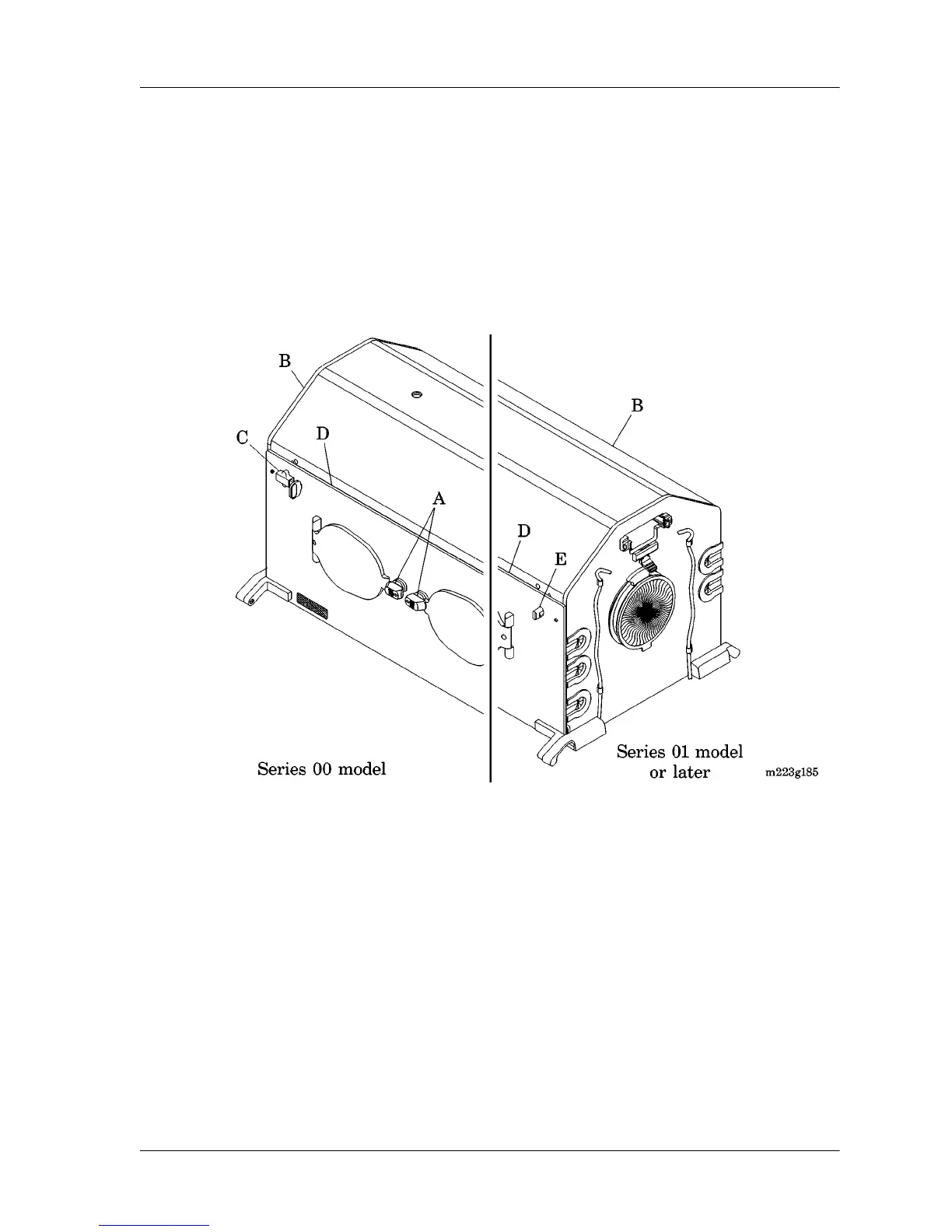

Figure 4-31. Hood Assembly
2. On a unit with a Series 00 hood assembly (B), slide the blue slide
access panel latches (C), and open the access panel (D).
or
On a unit with a hood assembly (B) later than Series 00, rotate the
pawl latch knobs (E), and open the access panel (D).
3. Pivot the access panel (D) to the full-open position so it hangs
straight down.
4. Using two pair of pliers, grasp the pawl latch (F) and the pawl latch
knob (E) (see figure 4-32 on page 4-71).
