4.32 Mattress Tilt Mechanism
Chapter 4: Removal, Replacement, and Adjustment Procedures
Isolette® Infant Incubator (Model C2000) Service Manual Page 4 - 93
4
14.Remove the three Nylok®
1
screws (M) that secure the tilt
mechanism (N) to the shell assembly (B) (see figure 4-48 on page
4-93). Discard the three Nylok® screws (M).

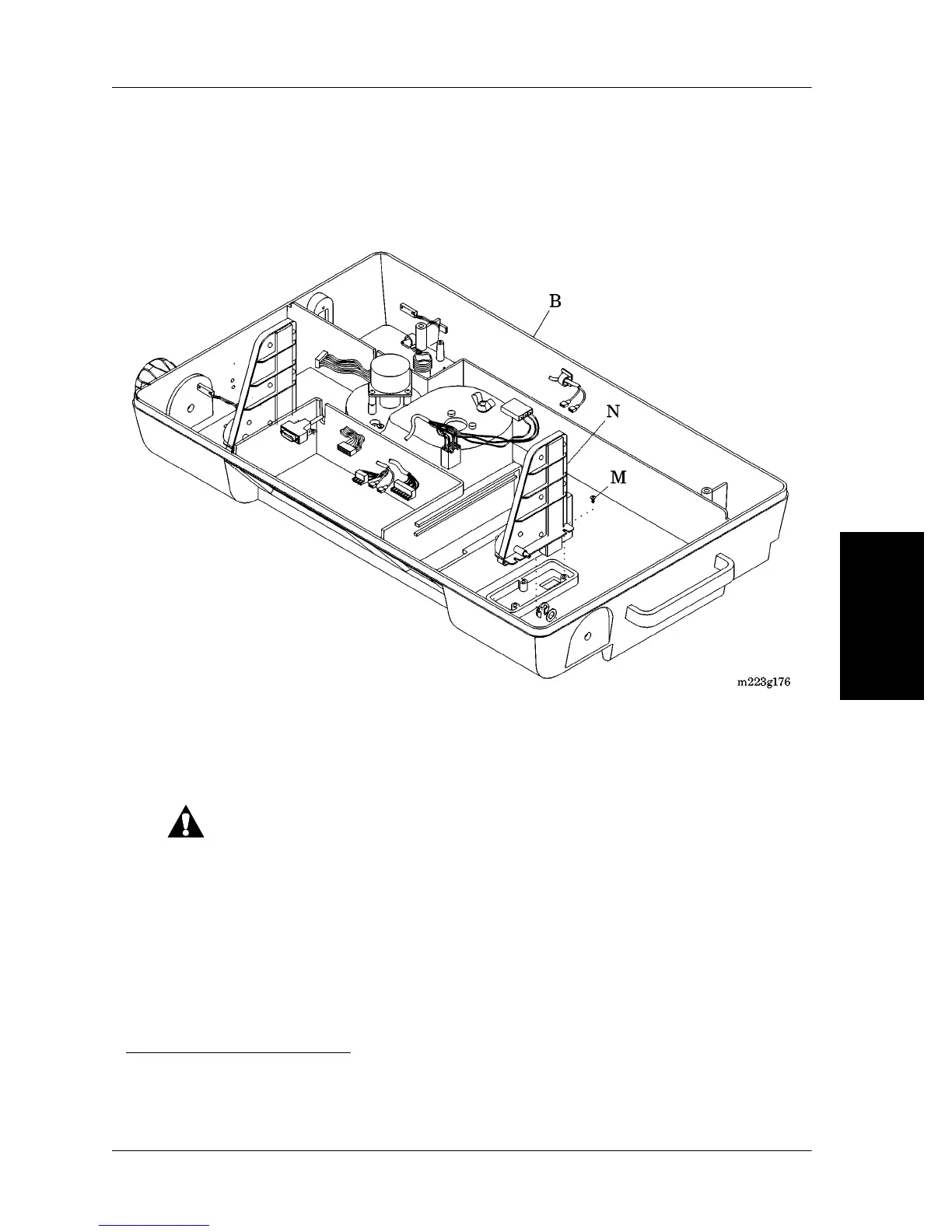

Figure 4-48. Mattress Tilt Mechanism
15.Remove the tilt mechanism (N) from the shell assembly (B).
Replacement
CAUTION:
Always replace Nylok® screws; do not reuse them. Equipment damage
could occur.
1. Replace the Nylok® screws (F (see figure 4-47 on page 4-92) and M
(see figure 4-48 on page 4-93)), and perform the removal procedure
in reverse order.
2. To ensure proper operation of the Isolette® Infant Incubator,
perform the “Function Checks” on page 2-6.
1. Nylok® is a registered trademark of Nylok Fastener Corporation.
