4.32 Mattress Tilt Mechanism
Chapter 4: Removal, Replacement, and Adjustment Procedures
Page 4 - 90 Isolette® Infant Incubator (Model C2000) Service Manual
4.32 Mattress Tilt Mechanism
Tools required: Phillips head screwdriver
Pliers
Flat padded surface
Removal
SHOCK HAZARD:
Unplug the power cord from the controller assembly. Failure to do so
could result in personal injury or equipment damage.
1. Unplug the power cord from the controller assembly (A) (see figure
4-46 on page 4-90).

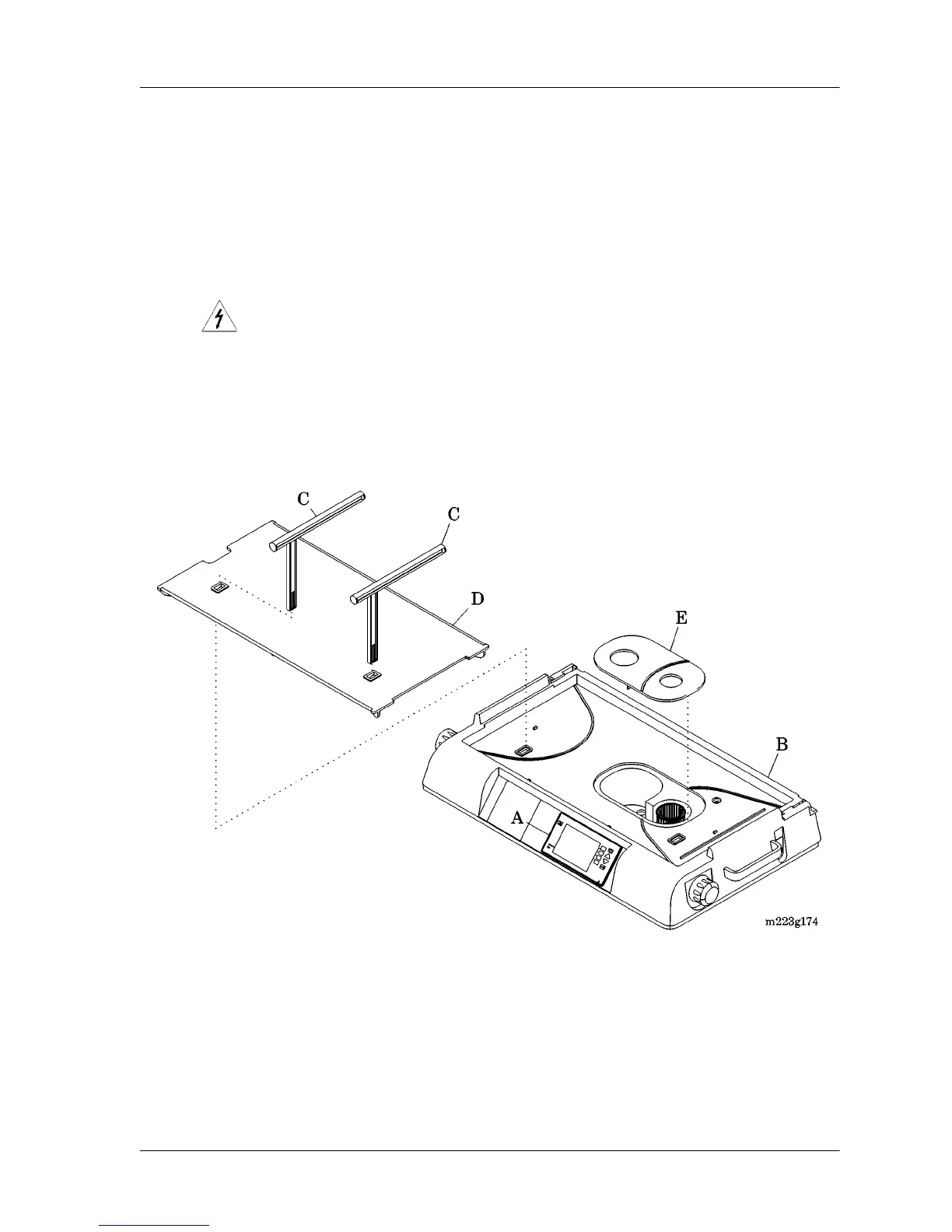

Figure 4-46. Shell Assembly
2. Remove the controller assembly from the shell assembly (refer to
procedure 4.4 on page 4-11).
3. Remove the hood assembly from the unit (refer to procedure 4.5 on
page 4-14).
