4.31 Mattress Tilt Knob
Chapter 4: Removal, Replacement, and Adjustment Procedures
Isolette® Infant Incubator (Model C2000) Service Manual Page 4 - 87
4
13.Using needle-nose pliers, remove the e-ring (M) and flat washer (N)
that secure the knob shaft (O) to the tilt mechanism (P) (see figure
4-44 on page 4-87).

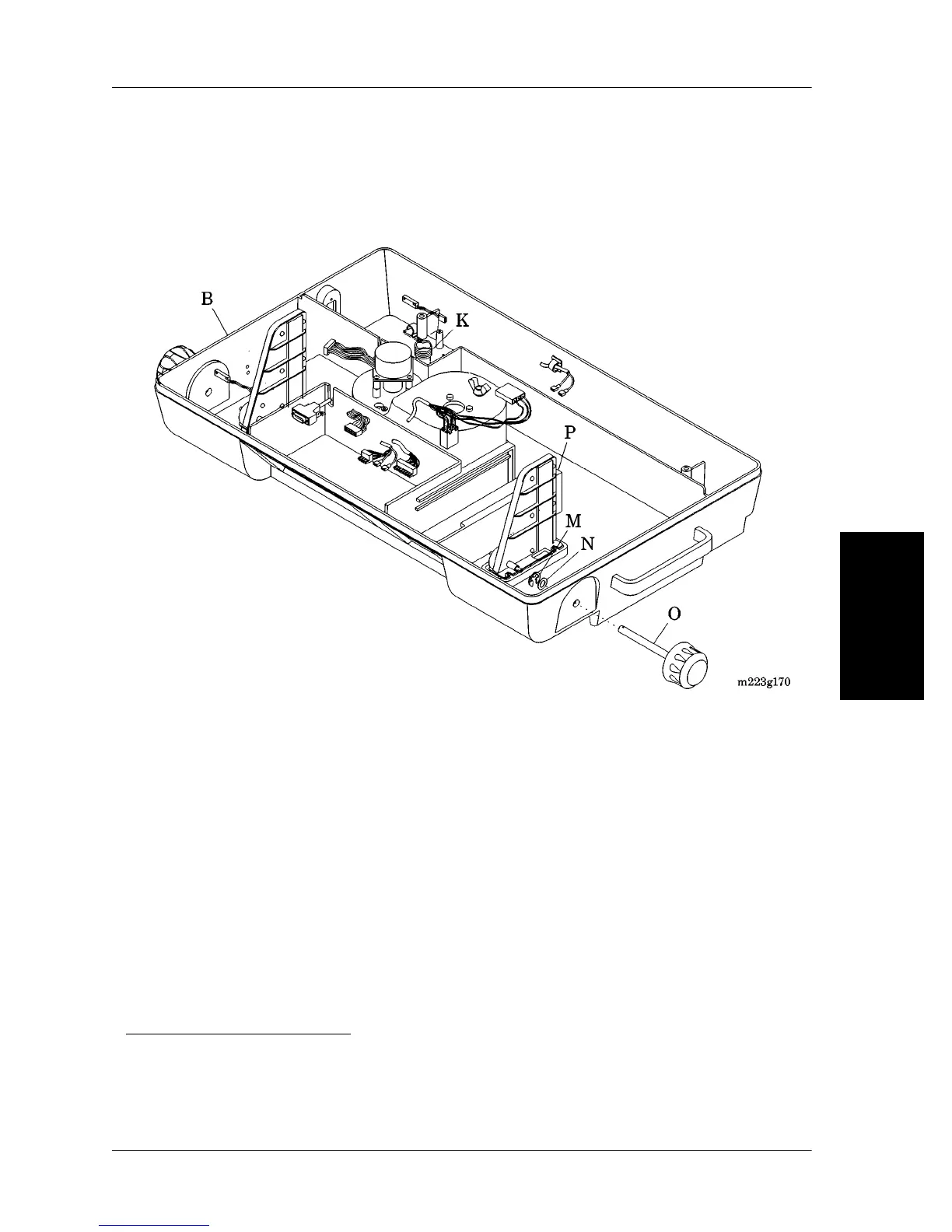

Figure 4-44. Mattress Tilt Knob
14.Remove the knob shaft (O) from the shell assembly (B).
Replacement
1. Install the flat washer (N) on the knob shaft (O).
2. Insert the notched end of the knob shaft (O) into the shell assembly
(B) until it engages the tilt mechanism (P).
3. Using needle-nose pliers, install the e-ring (M) to secure the knob
shaft (O) to the tilt mechanism (P)
4. Using a 9/64" Allen™
1
wrench, install the Nylok®
2
cap screw (Q) to
secure the mattress tilt knob (I) to the knob shaft (O) (see figure 4-
45 on page 4-88).
1. Allen™ is a trademark of Industrial Fasteners, Inc.
2. Nylok® is a registered trademark of Nylok Fastener Corporation.
