4.31 Mattress Tilt Knob
Chapter 4: Removal, Replacement, and Adjustment Procedures
Page 4 - 88 Isolette® Infant Incubator (Model C2000) Service Manual

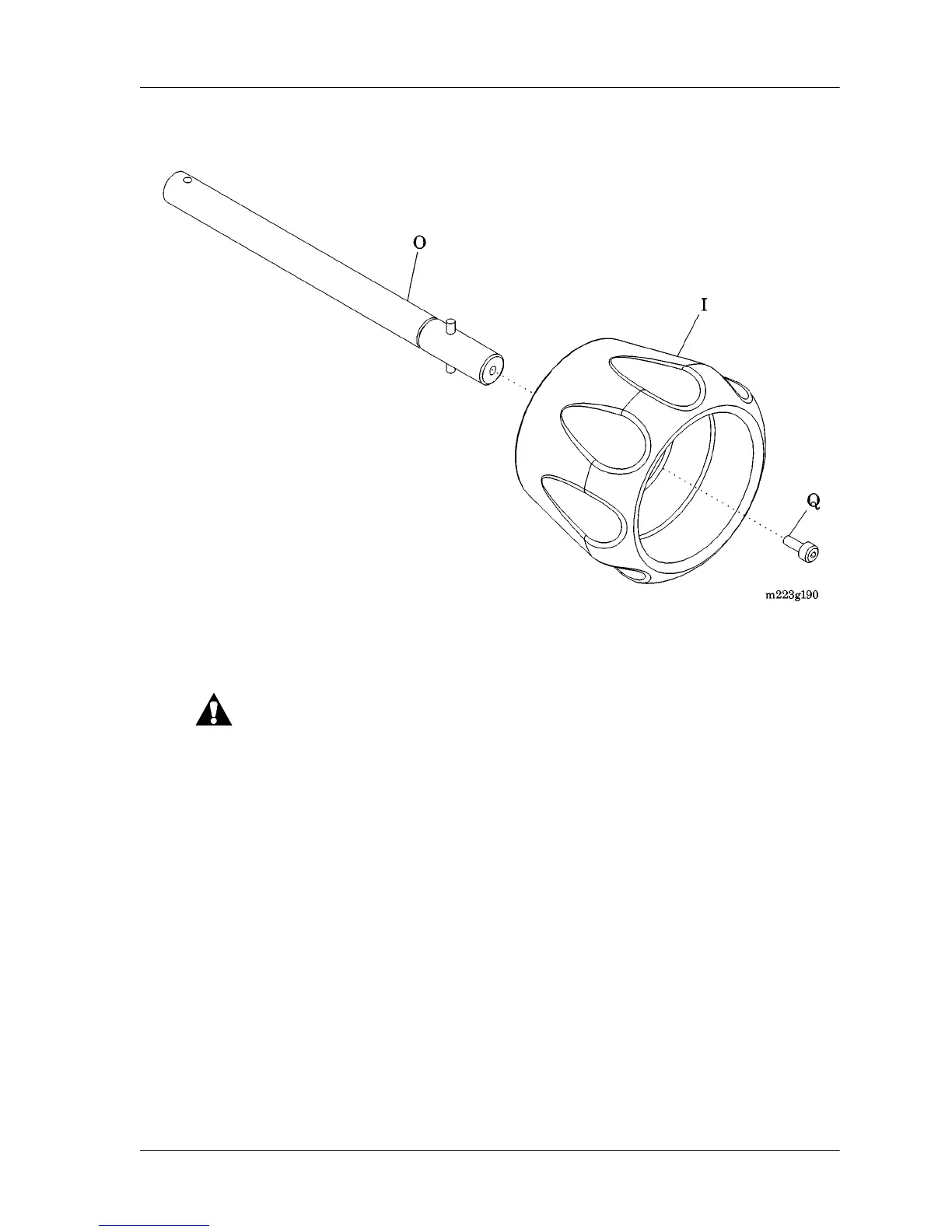

Figure 4-45. Mattress Tilt Knob Assembly
5. Connect the corrugated hose (K) to the shell assembly (B) (see
figure 4-44 on page 4-87).
CAUTION:
Use caution when lowering the shell assembly in place on the shell
bottom. Ensure that no cables are pinched and that the extrusion
bumper fits properly. Failure to do so could result in equipment
damage.
6. Stand at the same end of the shell assembly (B) as the controller
assembly (A), and perform the following (see figure 4-43 on page
4-86):
a. Connect the corrugated hose (K) to the check valve assembly
(L).
b. Carefully lower the shell assembly (B) in place on the shell
bottom (G).
c. Ensure that no cables are pinched between the shell assembly
(B) and the shell bottom (G).
