6.6 Disassembly and Assembly for Cleaning
Chapter 6: General Procedures
Isolette® Infant Incubator (Model C2000) Service Manual Page 6 - 31
6
a. Remove the humidity reservoir (I) from the unit (refer to
procedure 7.3 on page 7-15) (see figure 6-9 on page 6-31):

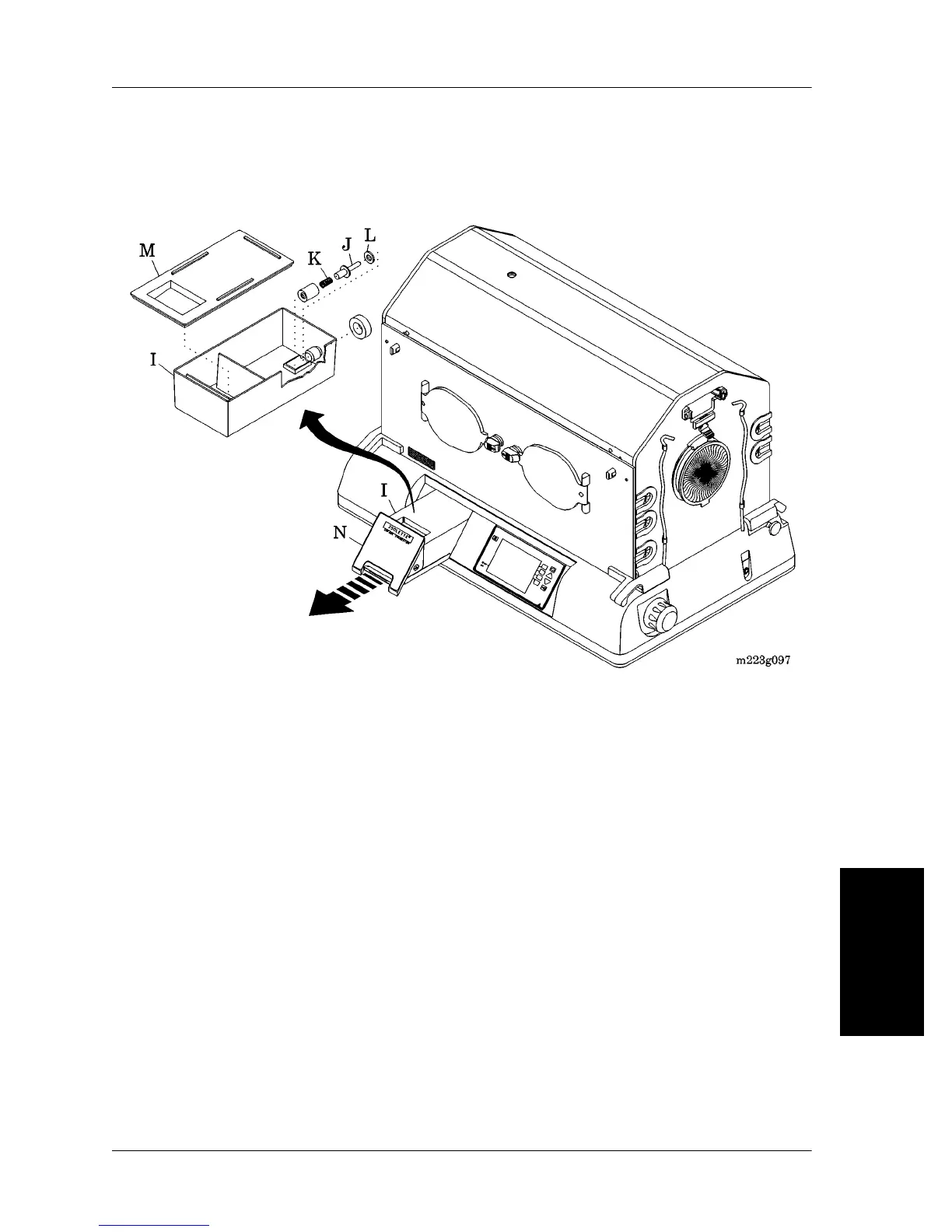

Figure 6-9. Humidity Reservoir
b. Remove the reservoir valve (J) by compressing its ends and
lifting it up on the rear end.
c. Remove the spring (K) and the seal (L) from the reservoir valve
(J), and place the spring (K), the seal (L), and the reservoir valve
(J) in the humidity reservoir (I).
14.Remove and discard the disposable access door cuffs from each
access door (refer to procedure 4.26 on page 4-74).
15.Remove the access door gaskets from each access door (refer to
procedure 4.27 on page 4-76).
16.Remove the tubing access grommets from each side of the hood
assembly (refer to procedure 4.34 on page 4-96).
17.Remove the disposable iris entry port sleeves (refer to procedure
4.11 on page 4-33). Wipe clean.
