7.2 Oxygen System
Chapter 7: Accessories
Page 7 - 12 Isolette® Infant Incubator (Model C2000) Service Manuall
c. Using pliers, squeeze the retaining clamp (M) to release the plug
(N) from the end of the oxygen hose (J).
d. Slide the retaining clamp (M) up the oxygen hose (J).
e. Remove and discard the plug (N).
11. Route the leads of the AC wiring harness assembly (K) down
through the opening in the shell assembly (I), and connect them to
the control valve assembly solenoid (O) (see figure 7-6 on page
7-12).

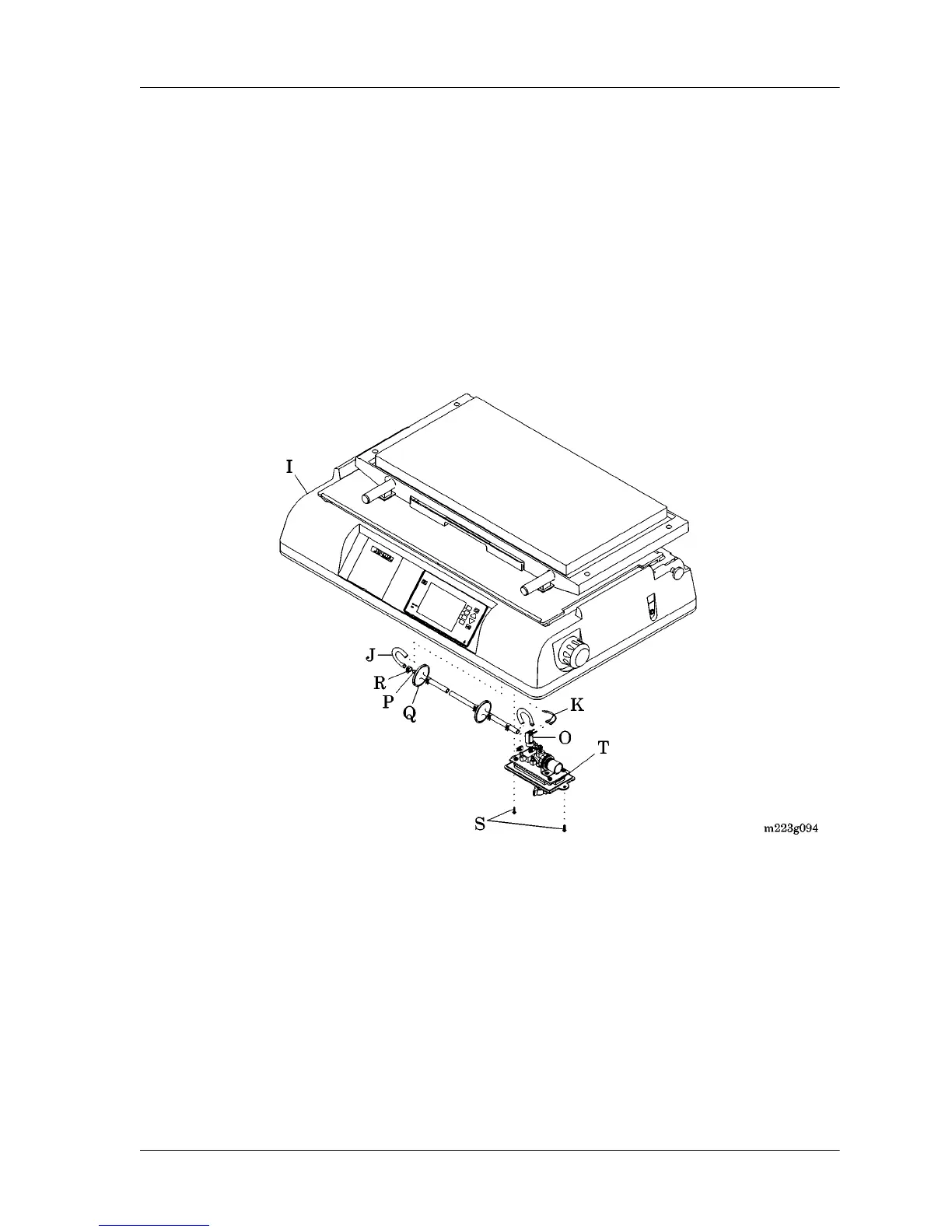

Figure 7-6. Control Valve Assembly
12.Connect the oxygen hose (J) to the barb fitting (P) on the filter
assembly (Q), and lock it in place with the retaining clip (R).
13.Install the two #8-32 screws (S) provided to secure the control valve
assembly (T) and the hose hanger on the shell assembly (I).
14.On an oxygen system other than 83 620 50 (Oxygen assembly,
green, Diameter Index Safety System (DISS)), install the oxygen
fitting at the end of the hose on the control valve assembly (T).
15.Turn the unit’s Power switch to the On position.
