Chapter 3 Image Quality Troubleshooting
3.5 Image Quality FIP
3-27
FIP-P14 "Wrinkled paper"
P14

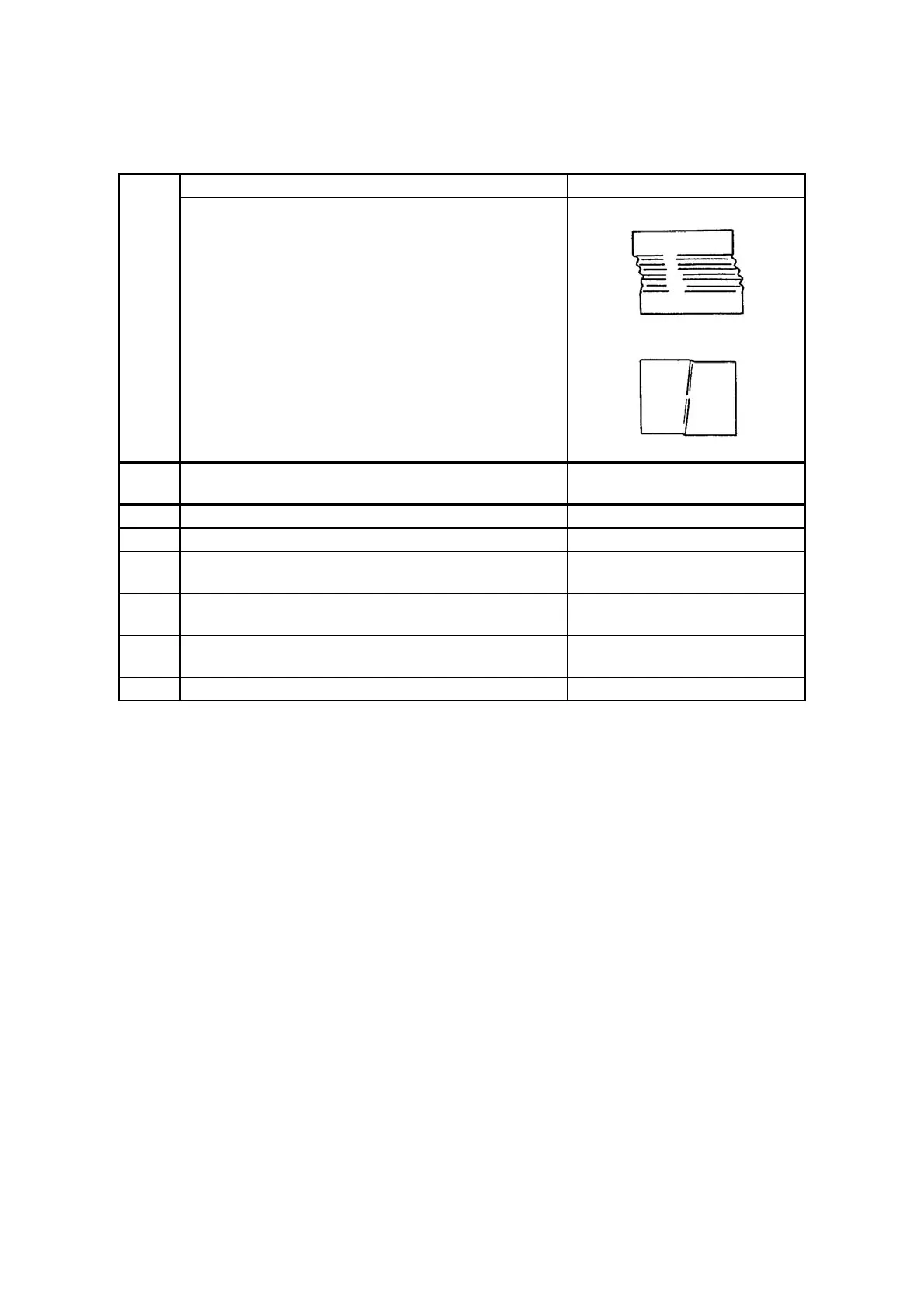

Phenomenon/Initial check Print sample
Paper is waved and wrinkled.
- Initial check -
Are there errors such as use of parts in different
specifications, attachment error, damage,
transformation, dirt or foreign object?
- Major check parts -
CASSETTE ASSY 250 CL (PL2.1.1)
Item Check
Action
(at occurrence of error)
1 Is paper set correctly? Set paper correctly.
2 Is the specified paper used? Use the specified paper.
3
Is paper stored in an appropriate place? Improve the paper storage
environment.
4
Is not paper wound round the pressure roller of the
FUSER ASSY CL CH?
Remove the FUSER ASSY CL
CH and pull out the wound paper.
5
- FUSER ASSY CL CH attachment error -
Is the FUSER ASSY CL CH attached securely?
Reattach the FUSER ASSY CL
CH.
6 Is a foreign object in the paper ejector? Remove the foreign object.
