Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-48
REP5.11 KIT ROLL FEED ASSY (PL5.1.60) [ROLL FEED FRONT D (PL5.1.35)/ROLL ASSY
FEED REAR (PL5.1.36)/GEAR (PL5.1.45)]
<Removal>
1) Remove the CASSETTE ASSY 250 CL from the printer.
NOTE
For the next and later procedures, prepare a 3cm or higher bench.
NOTE
Be careful not to touch the rubber of roll.

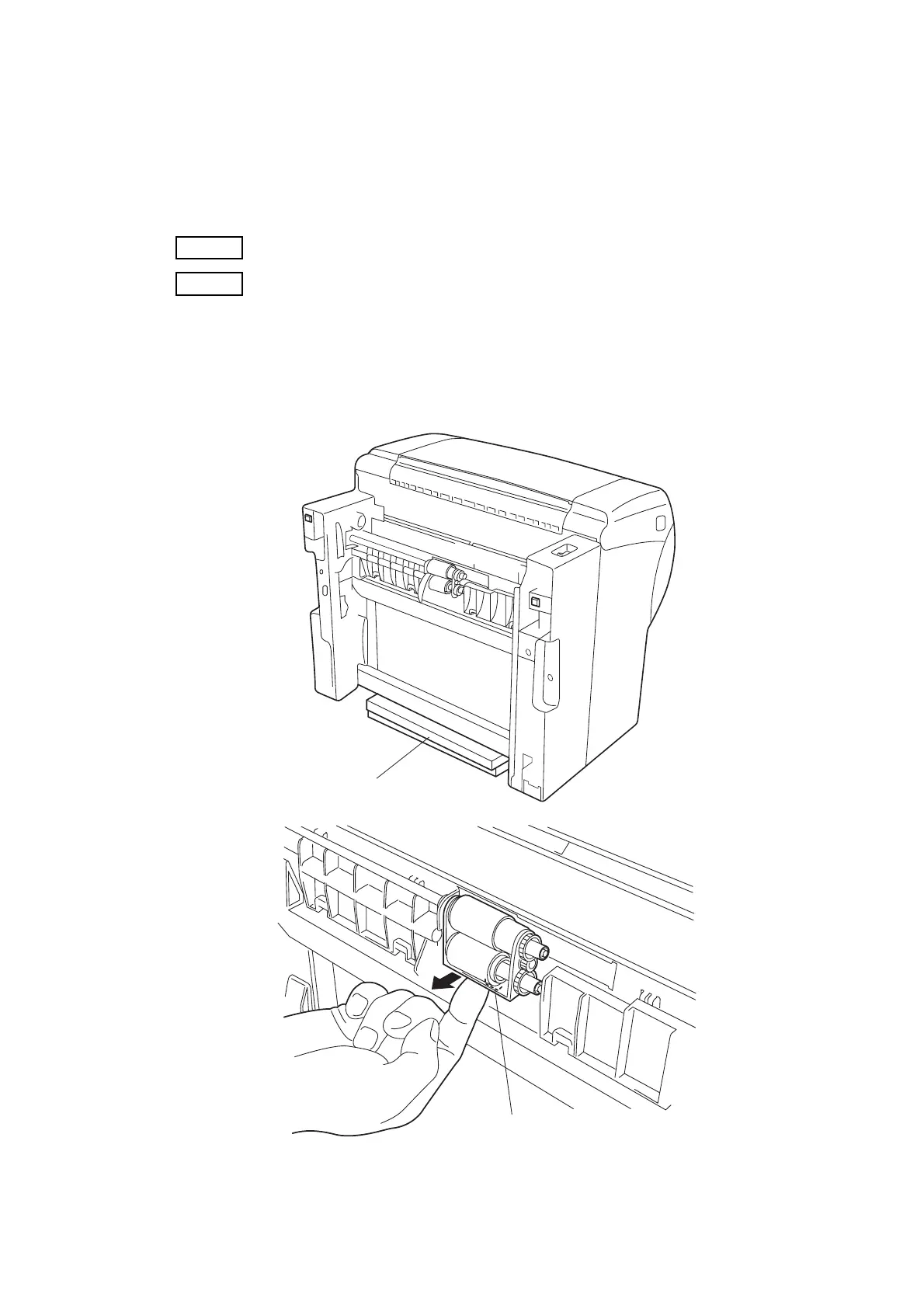

2) Erect the equipment with the rear side down.
3) Push the COVER FEED ROLL from the back and release the hook.
4) Release the hook and remove the GEAR. (Refer to PL5.45 on the parts list.)
5) Remove the ROLL FEED FRONT D. (Refer to PL5.35 on the parts list.)
6) Remove the ROLL ASSY FEED REAR. (Refer to PL5.36 on the parts list.)
AZS456CA
3cm or higher bench
Hook
AZS457CA
3)
To Next Page
