Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-9
REP1.5 PLATE GND TOP (PL1.1.12) [FG kit (main)]
<Removal>
1) Pull the LEVER FRONT R and LEVER FRONT L toward you and open the COVER ASSY FRONT.
2) Open the COVER ASSY TOP CL.
CAUTION
Since the COVER ASSY TOP CL is not removed in the procedure below,
an excess force may damage the COVER ASSY TOP CL.

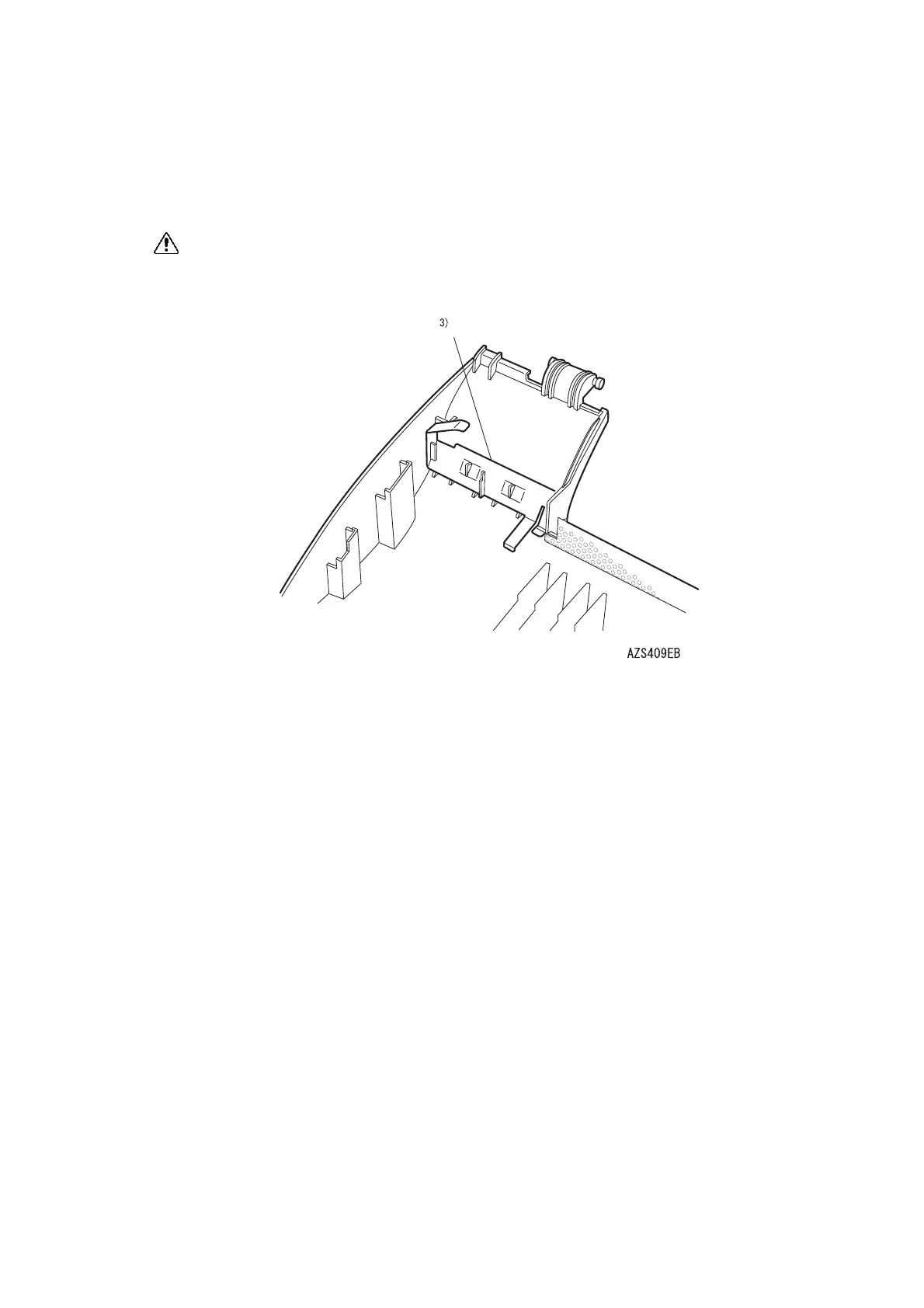

3) Lift the two tabs at the PLATE GND TOP to unlock and remove the PLATE GND TOP.
<Replacement>
Perform the removal procedures in the reverse order.
To Next Page
