Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-28
REP4. Paper Feeder
REP4.1 PLATE HV 1 (PL4.1.4) [FG kit (main)]
<Removal>
1) Pull the LEVER FRONT R and LEVER FRONT L toward you and open the COVER ASSY FRONT.
2) Remove the COVER ASSY STACK CL. (REP1.7)
3) Remove the COVER ASSY TOP CL with the FFC OPP CL. (REP1.4)
4) Remove the COVER SIDE LEFT CL. (REP1.1)
5) Remove the PWBA SENSOR. (REP4.7)

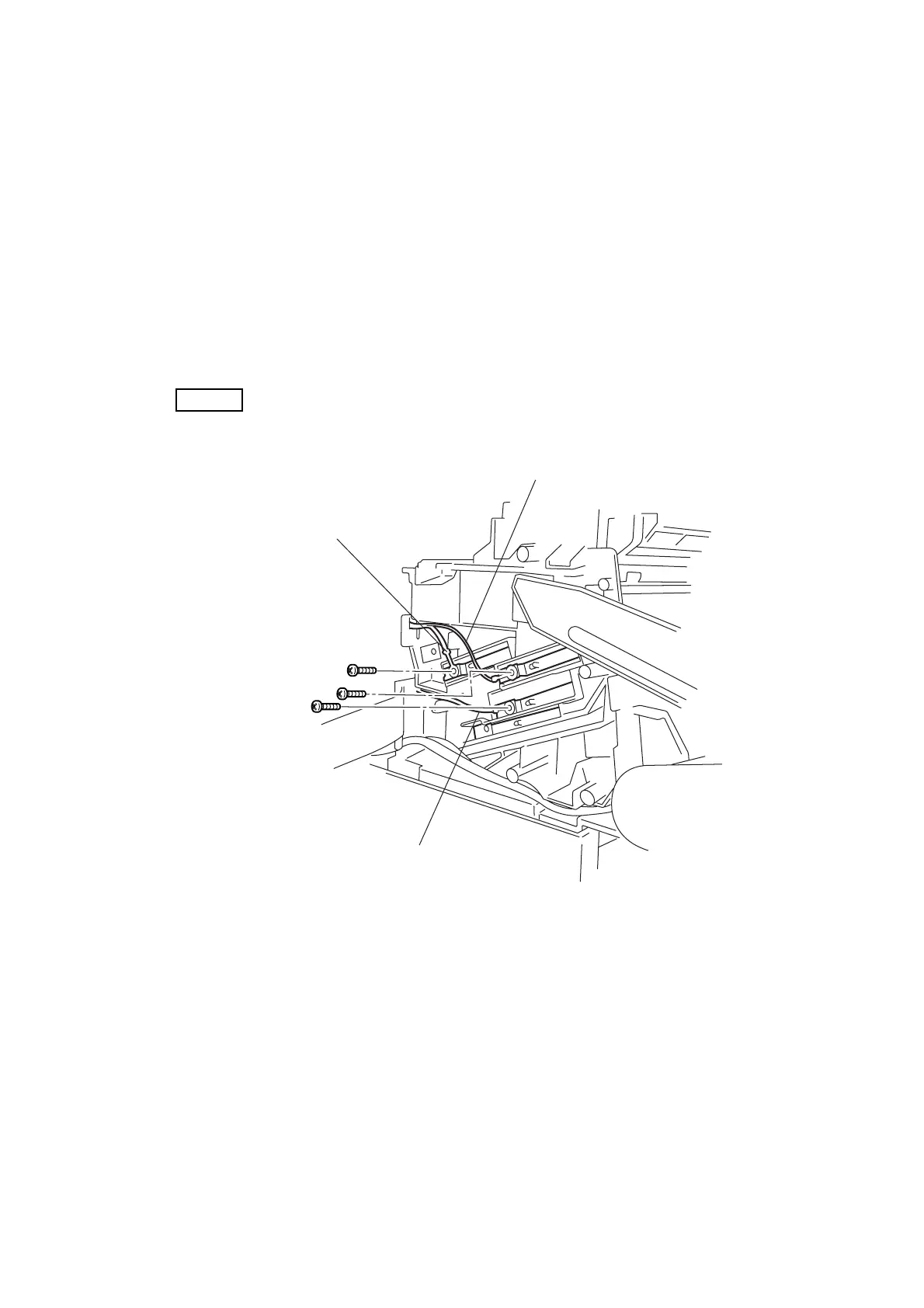

6) Remove the three screws (gold, with flange, tapping, 8mm) securing the three PLATE HV 1s and
detach the HARNESS ASSY HV.
NOTE
A straight-head precision screwdriver is recommended for the procedure below.
7) Raise the tabs of the PLATE HV 1 to unlock, and remove the plate.
<Replacement>
Perform the removal procedures in the reverse order.
6)
6)
6)
AZS427CA
HARNESS ASSY CR(Black)
HARNESS ASSY DB(White)
HARNESS ASSY CR(Red)
To Next Page
