Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-25
REP3.7 (SCC) COVER FRONT LEFT (PL3.1.31)
<Removal>

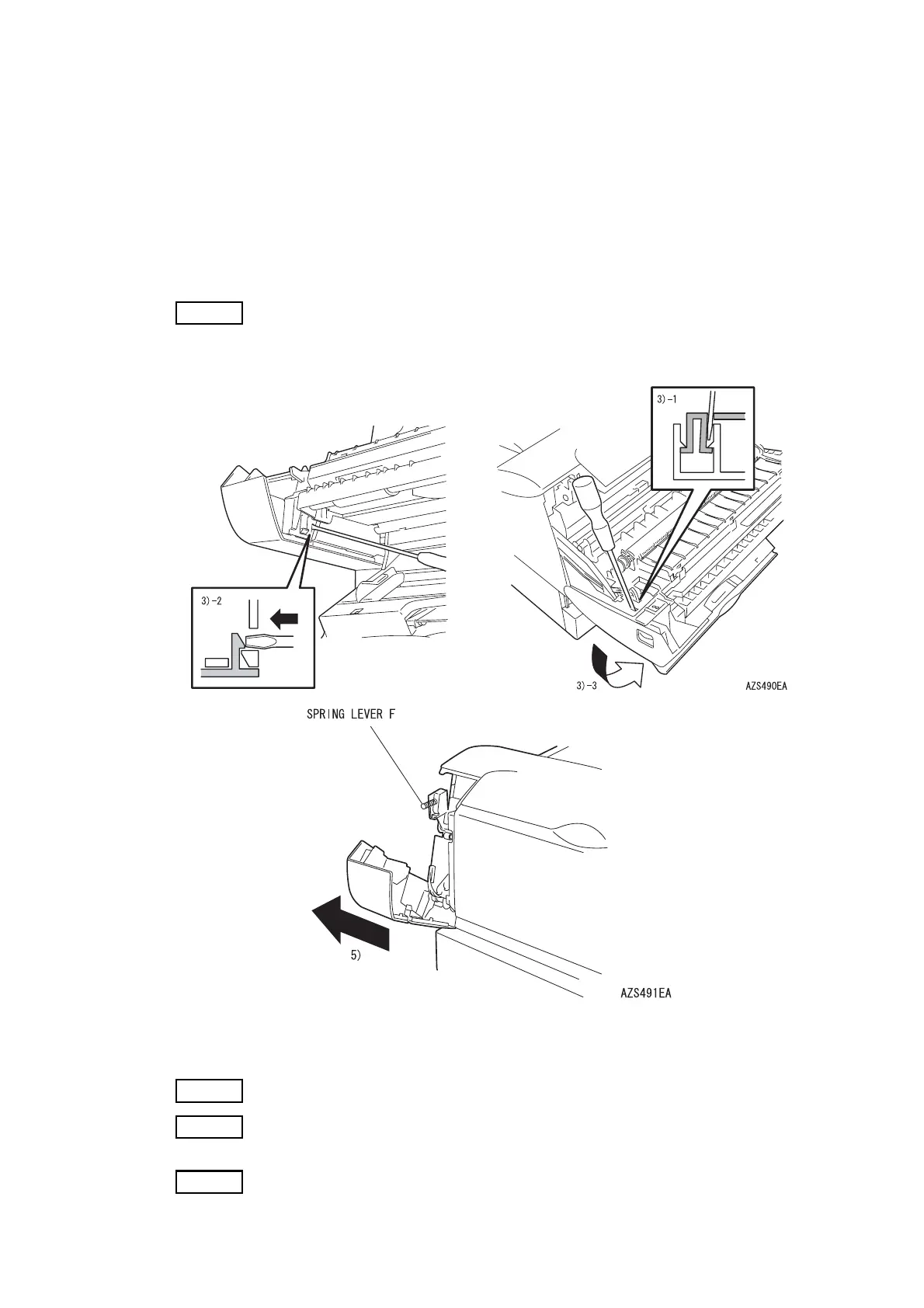

1) Pull the LEVER FRONT R (PL8.1.11) and LEVER FRONT L (PL8.1.12) concurrently toward you,
open the COVER ASSY FRONT.
2) Open the TRAY ASSY FRONT CL (PL3.2.1).
3) Release the three hooks of the COVER FRONT LEFT and rotate the COVER FRONT LEFT.
4) Close the TRAY ASSY FRONT CL and the COVER ASSY FRONT.
NOTE
Be careful not to lose the SPRING LEVER F (PL8.1.25), because spring may be
dropped by the next procedure.
5) Remove the COVER FRONT LEFT to the left.
<Replacement>
Perform the removal procedures in the reverse order.
NOTE
Be careful not to pinch the harness by the shaft of the cover.
NOTE
Attach the rib of COVER FRONT LEFT to the inside of the rib of the FRAME
FRONT (PL8.1.2). (Refer to REP 3.6)
NOTE
After completion, confirm the LEVER FRONT L (PL8.1.12) movement.
