5 - 10 Chapter 5 Parts List
5.2 Parts List

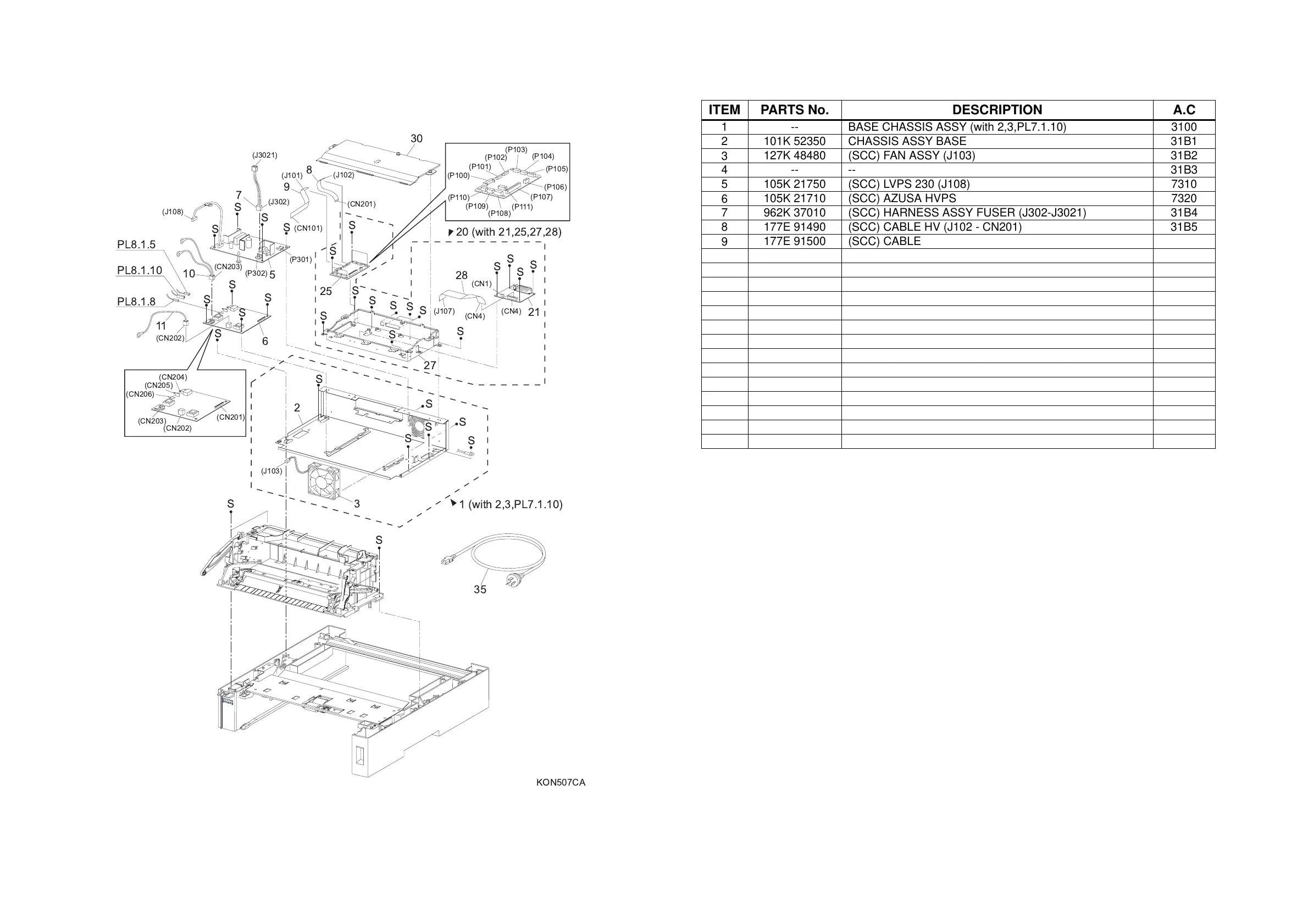

PL9.1 Frame & Electrical
ITEM PARTS No. DESCRIPTION A.C
1
-- BASE CHASSIS ASSY (with 2,3,PL7.1.10) 3100
2
101K 52350 CHASSIS ASSY BASE 31B1
3
127K 48480 (SCC) FAN ASSY (J103) 31B2
4
-- -- 31B3
5
105K 21750 (SCC) LVPS 230 (J108) 7310
6
105K 21710 (SCC) AZUSA HVPS 7320
7
962K 37010 (SCC) HARNESS ASSY FUSER (J302-J3021) 31B4
8
177E 91490 (SCC) CABLE HV (J102 - CN201) 31B5
9
177E 91500 (SCC) CABLE SENSOR (J101 - CN101) 31B6
10
962K 37020 (SCC) HARNESS ASSY CR (CN203) 31B7
11
962K 37030 (SCC) HARNESS ASSY DB (CN202) 31B8
12-19
-- -- 31B9
20
-- CHASSIS ASSY CONTROLLER (with 21,25,27,28) 31BB
21
960K 16400 ESS PWB 7600
22-24
-- -- 31BC
25
960K 17530 PWBA MCU XFABK(B) 76B1
26
-- -- 31BD
27
-- CHASSIS CONTROLLER 31BE
28
962K 37040 FFC VIDEO (J107 - CN4) 31BF
29
-- -- 31BG
30
802K 86810 COVER ASSY PWB 31BH
31-34
-- -- 31BJ
35
117K 37470 (SCC) POWER CABLE CN 31BK
To Next Page
