Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-69
REP9.4 PWBA MCU XFABK(B) (PL9.1.25)
<Removal>
1) Remove the COVER ASSY STACK CL. (REP1.7)
2) Remove the COVER ASSY PWB. (REP9.5)

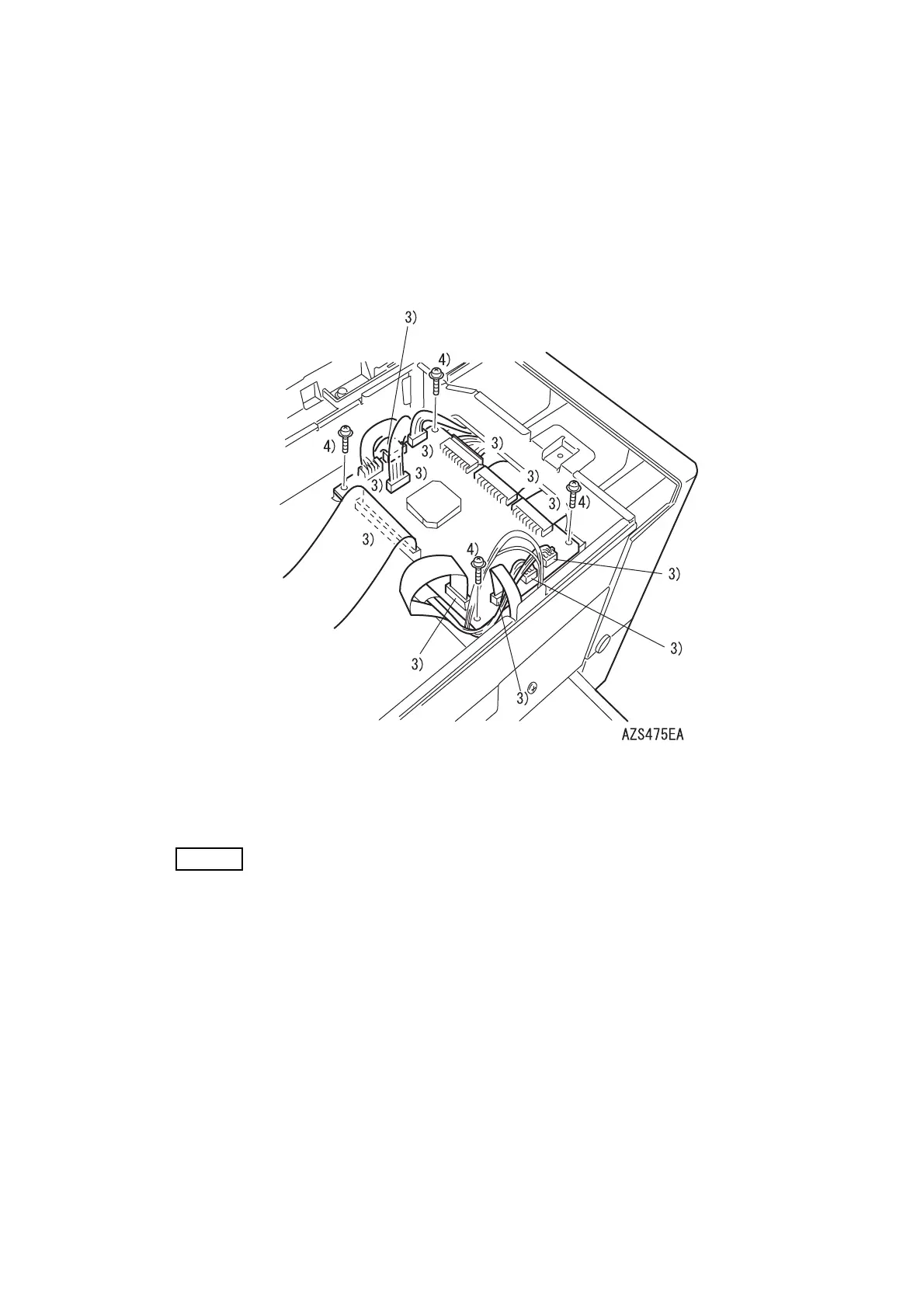

3) Disconnect the twelve connectors (P/J100 to P/J111) of the PWBA MCU XFABK(B).
4) Remove the four screws (gold, with washer, 8mm) securing the PWBA MCU XFABK(B) and
remove the PWBA MCU XFABK(B).
<Replacement>
Perform the removal procedures in the reverse order.
NOTE
When connecting the flat cable, make sure that the blue marking on the cable
comes to the bottom or inside.
