Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-72
REP9.7 (SCC) AZUSA HVPS (PL9.1.6)
<Removal>
1) Pull the LEVER FRONT R and LEVER FRONT L toward you and open the COVER ASSY FRONT.
2) Remove the COVER ASSY STACK CL. (REP1.7)
3) Remove the COVER ASSY PWB. (REP9.5)
4) Remove the COVER ASSY TOP CL. (REP1.4)
5) Remove the COVER SIDE LEFT CL. (REP1.1)
6) Remove the COVER ASSY RIGHT CL. (REP1.2)
7) Remove the COVER MIDDLE CL. (REP1.3)
8) Remove the CHASSIS ASSY CONTROLLER. (REP9.2)
9) Remove the ROS ASSY. (REP10.1)

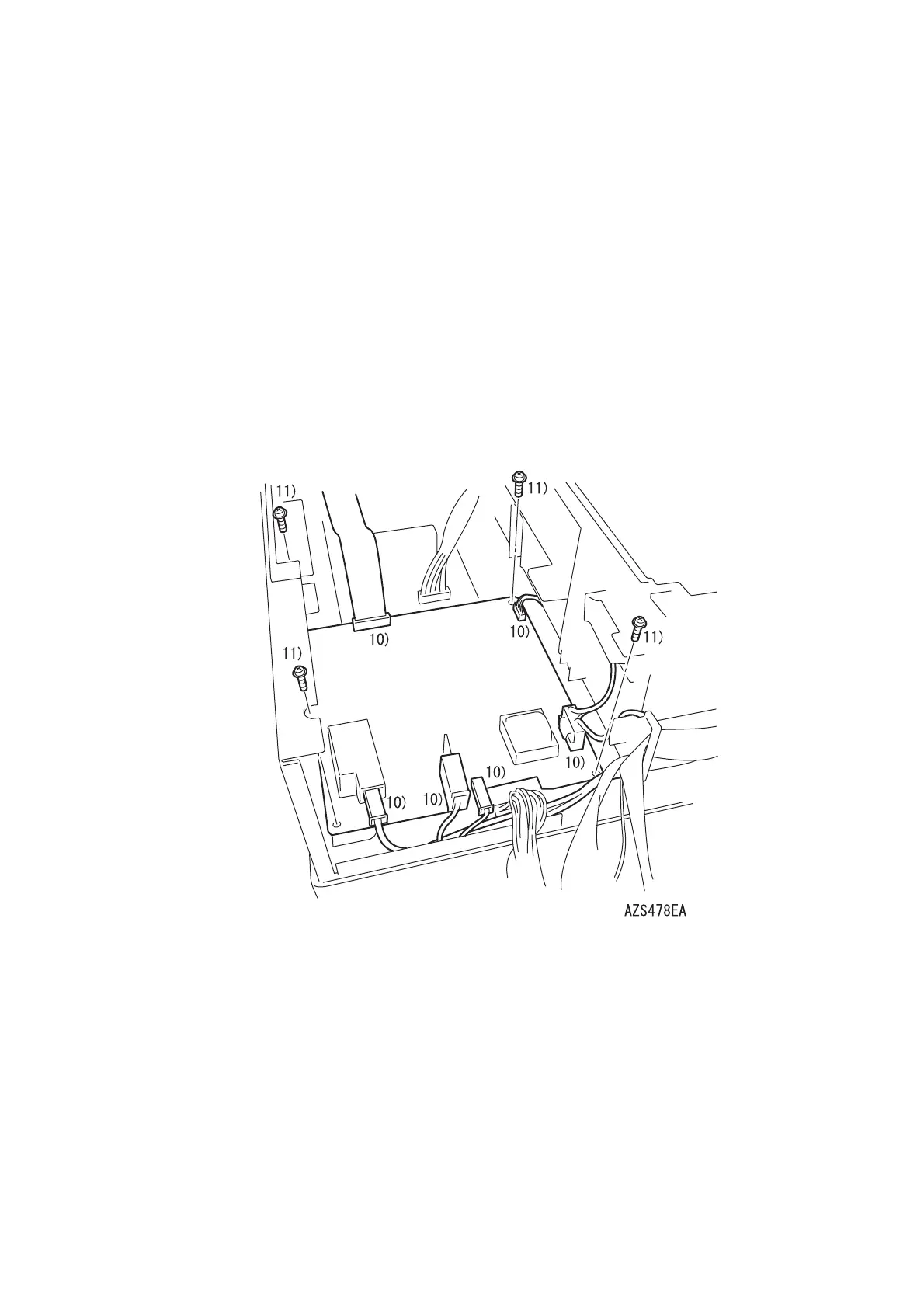

10) Disconnect the six connectors (CN201 to CN206) of AZUSA HVPS.
11) Remove the four screws (gold, with washer, 8mm) securing AZUSA HVPS and remove the AZUSA
HVPS.
<Replacement>
Perform the removal procedures in the reverse order.
