Fuji Xerox DocuPrint 2050 Service Manual

Chapter 7 Wiring Data
7.3 Wiring Diagram between Parts
7-20

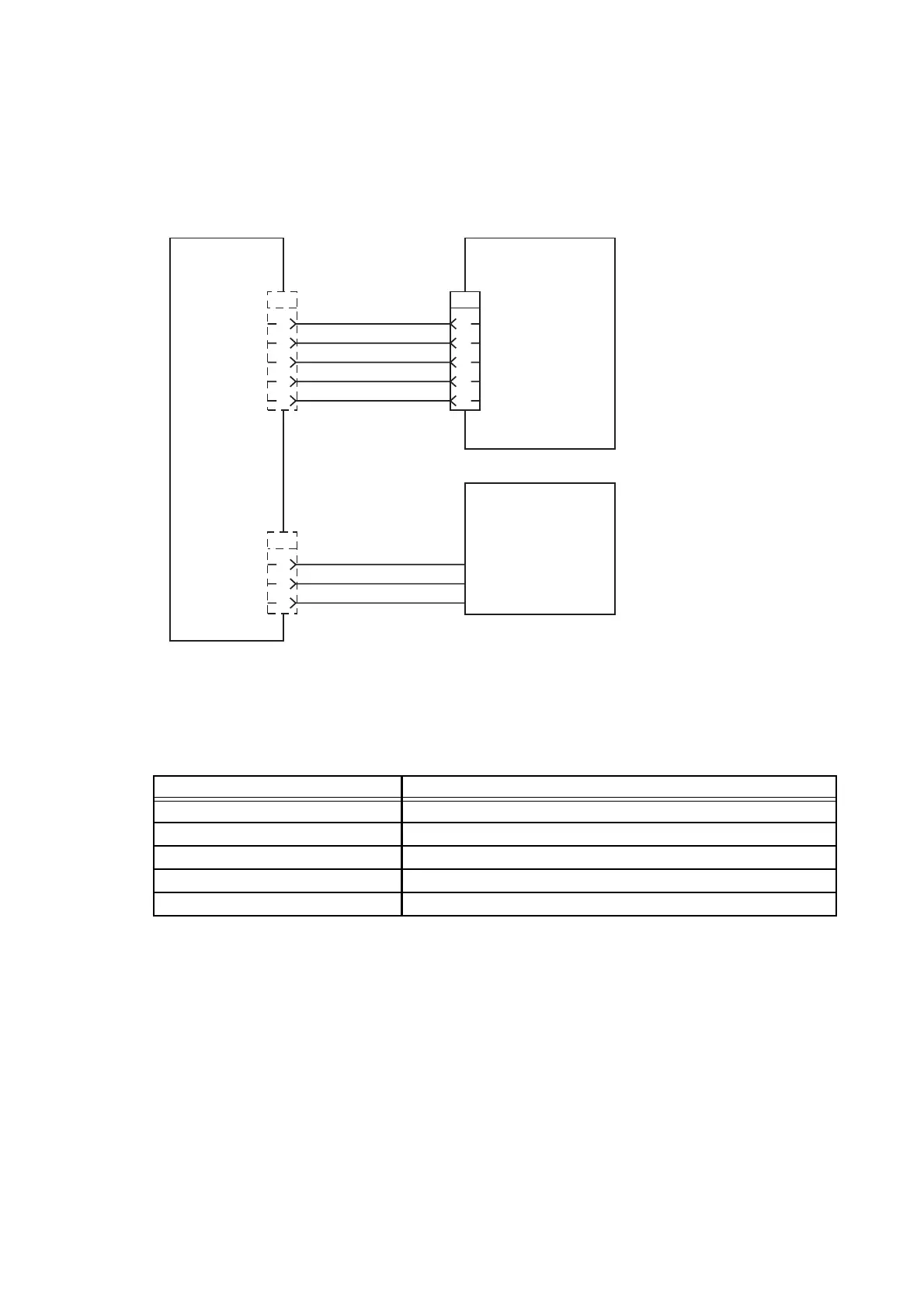

§ 9 PWBA MCU <-> MOTOR ASSY MAIN, FAN ASSY
Signal line name Reference
MainMotorLockSignal (L) MOTOR ASSY MAIN rotation error (lock) sense signal
MainMotorDrive MOTOR ASSY MAIN control signal
InterLock24V Interlock 24VDC
Main FAN DRIVE(H) Power voltage with FAN rotation control signal
Main FAN ALRM(H) FAN rotation error (lock) sense signal
P/J109
1
2
3
4
5
1
2
3
4
5
P/J103
1
2
3
MOTOR ASSY MAIN
PL7.1.2
FAN ASSY
PL9.1.3
P/J1090
MainMotorLockSignal(L)
MainMotorDrive
5VDC
GND
InterLock24V
Main FAN DRIVE (H)
Main FAN ALRM (H)
GND
KON663CA
[HARNESS ASSY MOTOR
MAIN PL7.1.4]
CN101
: The number is
printed on the board.
**
PWBA MCU
XFABK(B)
PL9.1.25
