Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-71
REP9.6 (SCC) LVPS 230 (PL9.1.5)
<Removal>
1) Pull the LEVER FRONT R and LEVER FRONT L toward you and open the COVER ASSY FRONT.
2) Remove the COVER ASSY STACK CL. (REP1.7)
3) Remove the COVER ASSY PWB. (REP9.5)
4) Remove the COVER ASSY TOP CL. (REP1.4)
5) Remove the COVER SIDE LEFT CL. (REP1.1)
6) Remove the COVER ASSY RIGHT CL. (REP1.2)
7) Remove the COVER MIDDLE CL. (REP1.3)
8) Remove the CHASSIS ASSY CONTROLLER. (REP9.2)
9) Remove the ROS ASSY. (REP10.1)

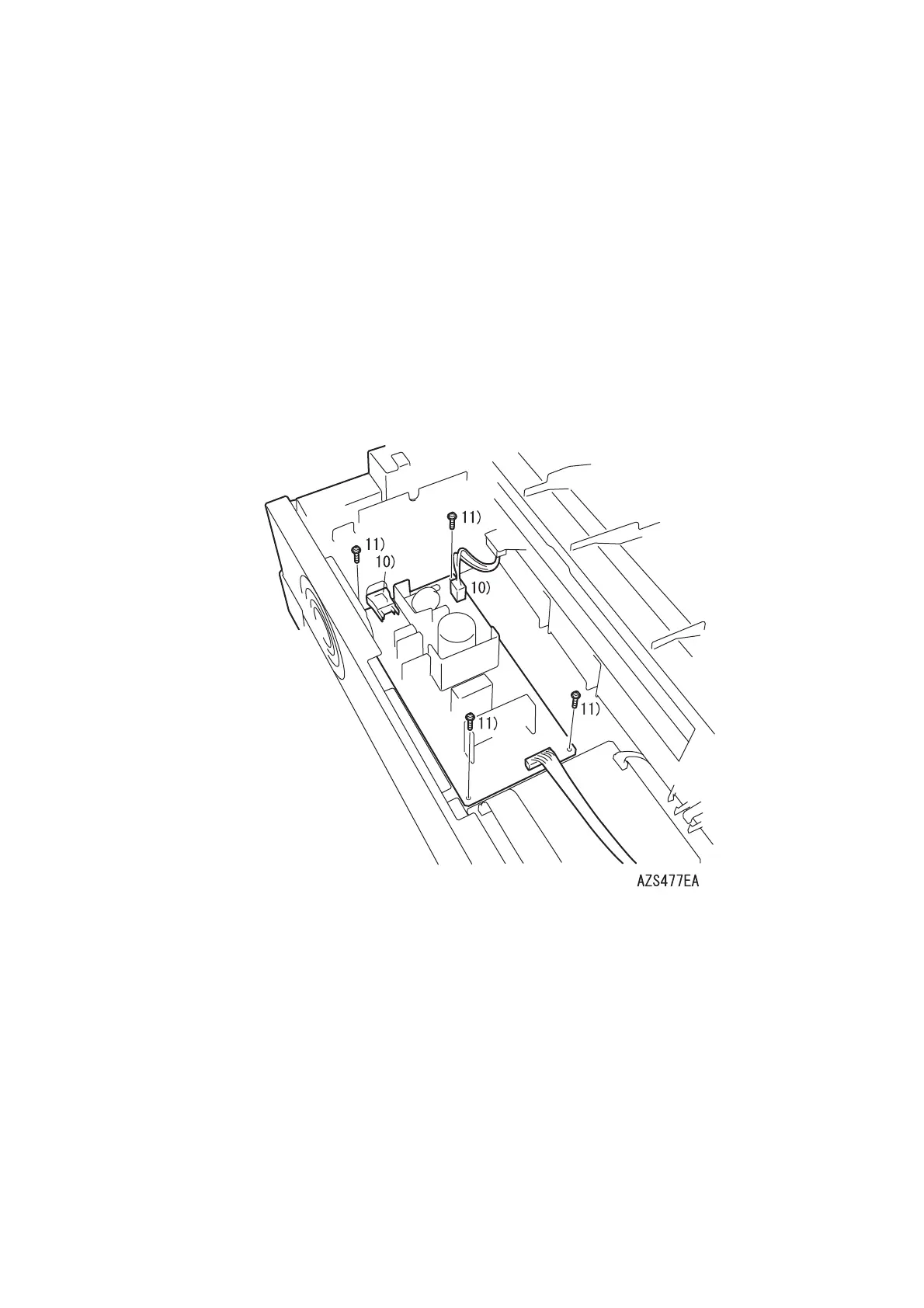

10) Disconnect the two connectors (P/J301, P/J302) of LVPS 230.
11) Remove the four screws (gold, with washer, 8mm) securing LVPS 230 and remove the LVPS 230.
<Replacement>
Perform the removal procedures in the reverse order.
