Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-61

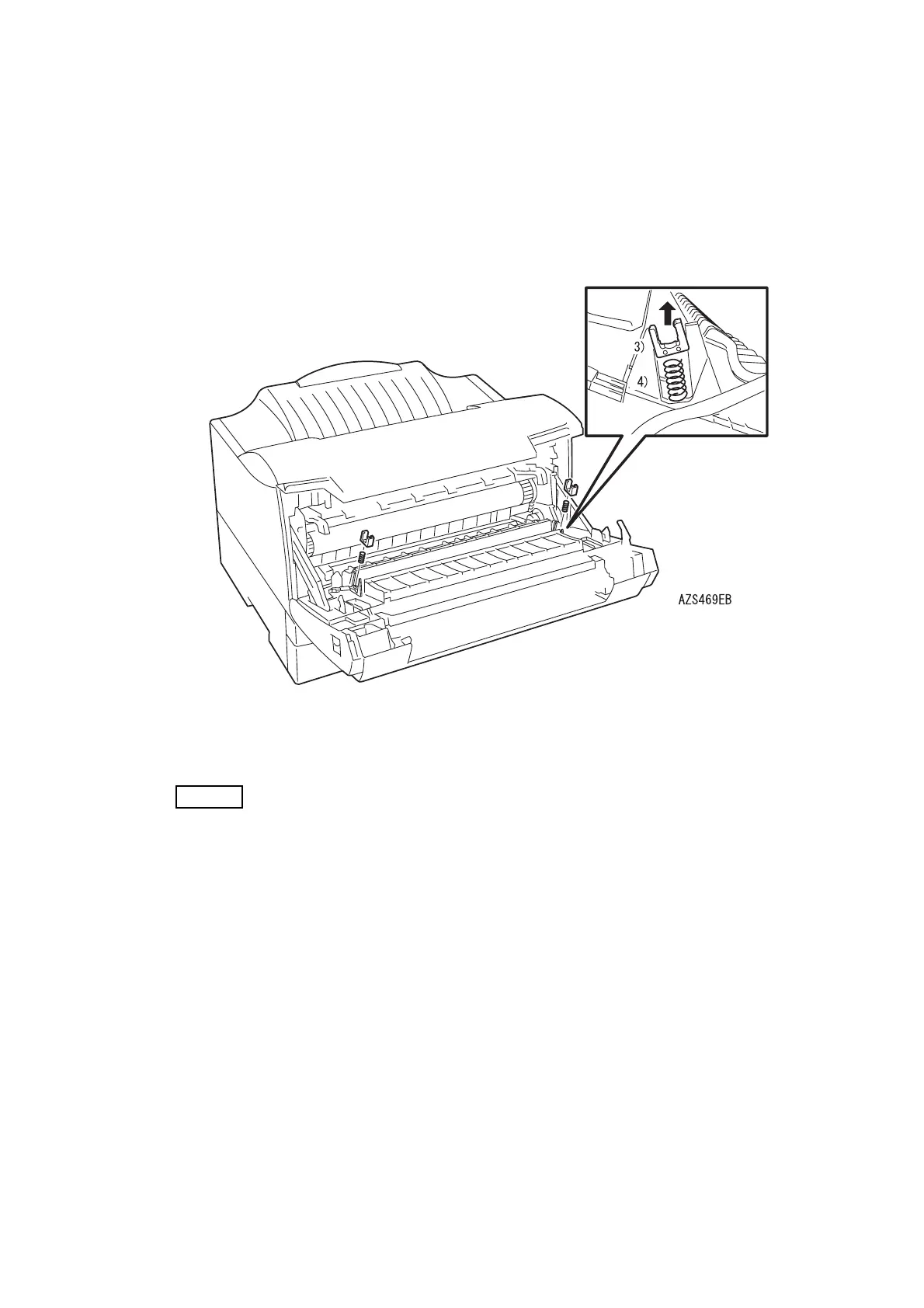

REP8.5 SPRING BTR (PL8.1.6)/BEARING BTR (PL8.1.7)
<Removal>
1) Pull the LEVER FRONT R and LEVER FRONT L toward you and open the COVER ASSY FRONT.
2) Remove the ROLL ASSY BTR. (REP8.3)
3) Loosen the BEARING BTR with a pliers and remove it upward.
4) Remove the SPRING BTR.
<Replacement>
Perform the removal procedures in the reverse order.
NOTE
When attaching the left side SPRING BTR and BEARING BTR, press the terminal
of the HARNESS ASSY HV BTR with the SPRING BTR.
