Chapter 10 Machine Overview
10.5 Functions of Major Components
10-13
10.5.2 Paper Feeder
10.5.2.1 Major Functions [Paper Feeder]
- ROLL FEED FRONT D
Rotates, receiving the driving force from the MOTOR ASSY FEED, and outputs paper from the
paper cassette.
- ROLL ASSY REGI
Transports the paper fed from the paper cassette by the driving force of the MOTOR ASSY FEED,
using the ROLL ASSY REGI that receives the driving force by the MOTOR ASSY MAIN.
- SENSOR PHOTO
Senses whether paper is set in the paper cassette with ACTUATOR PAPER EMPTY.

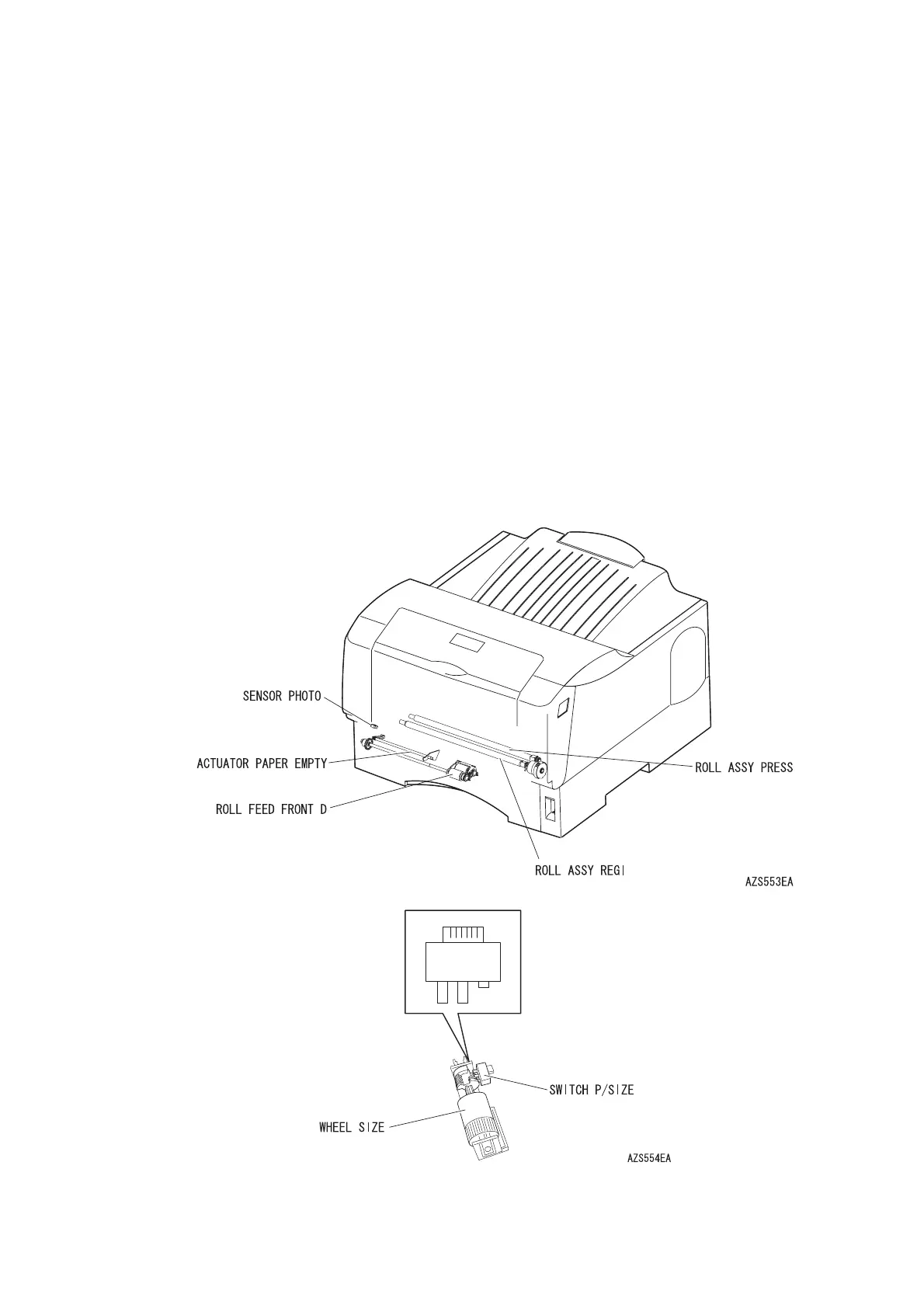

10.5.2.2 Reference Figure [Paper Feeder]
To Next Page
