Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-59
REP8.4 PLATE DT SAW (PL8.1.4)/CHUTE TRANS (PL8.1.9)
<Removal>
1) Pull the LEVER FRONT R and LEVER FRONT L toward you and open the COVER ASSY FRONT.
CAUTION
Since the HARNESS ASSY HV TRANS is mounted in the procedure
below, do not lift the CHUTE TRANS too high.

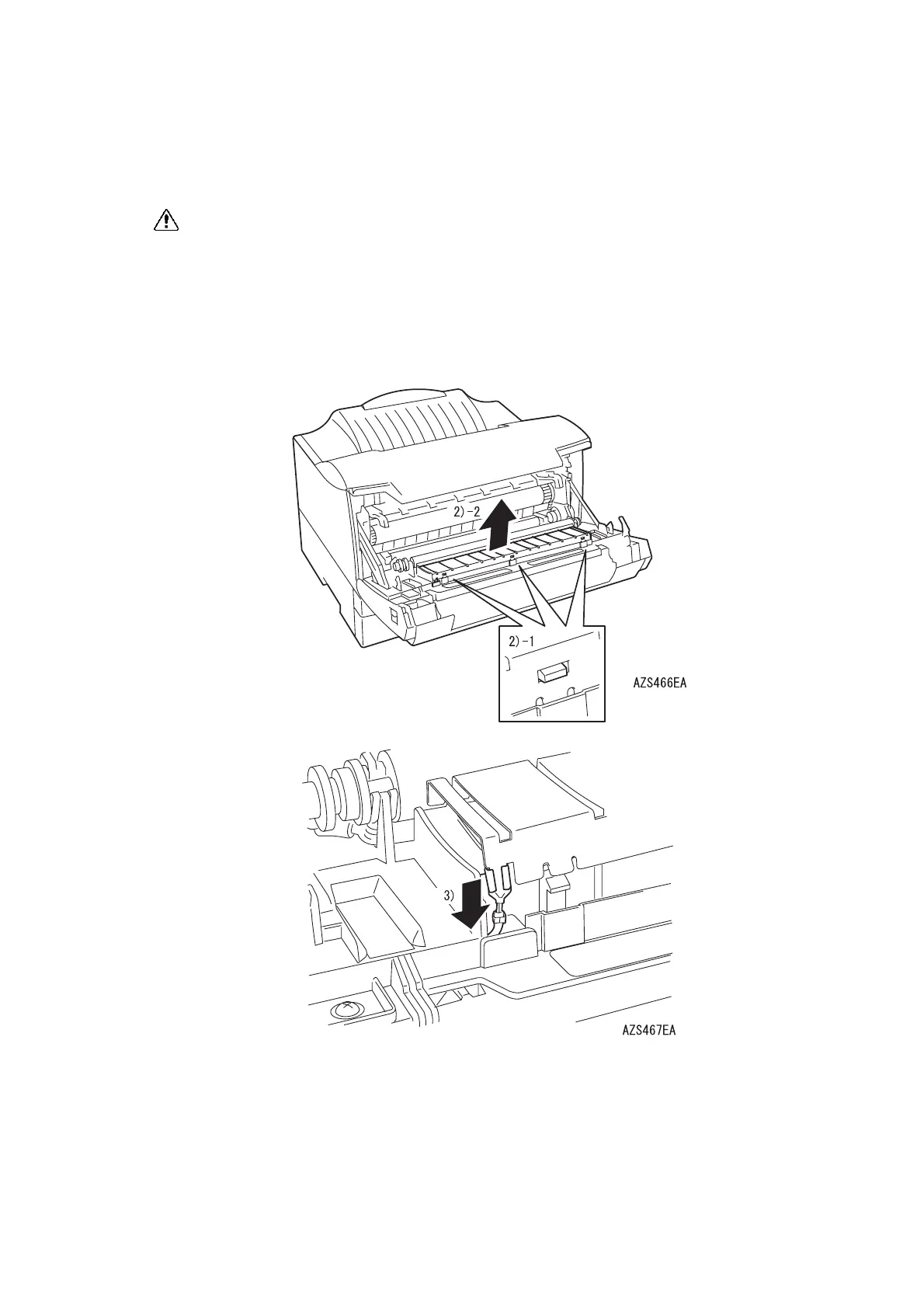

2) Release the three hooks of the CHUTE TRANS and remove it upward.
3) Remove the HARNESS ASSY HV TRANS from the CHUTE TRANS.
4) Remove the screw (gold, with flange, tap, 8mm) securing the PLATE DT SAW and remove the
HARNESS ASSY HV DT.
5) Raise the five tabs of the PLATE DT SAW and remove the PLATE DT SAW.
To Next Page
