Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-6
REP1.2 (SCC) COVER ASSY RIGHT CL (PL1.1.2)
<Removal>
1) Pull the LEVER FRONT R and LEVER FRONT L toward you and open the COVER ASSY FRONT.
2) Remove the COVER ASSY STACK CL. (REP1.7)
CAUTION
Be careful not to damage the FFC OPP CL (PL1.1.21) in the procedure
below.
3) Remove the COVER ASSY TOP CL with the FFC OPP CL. (REP1.4)

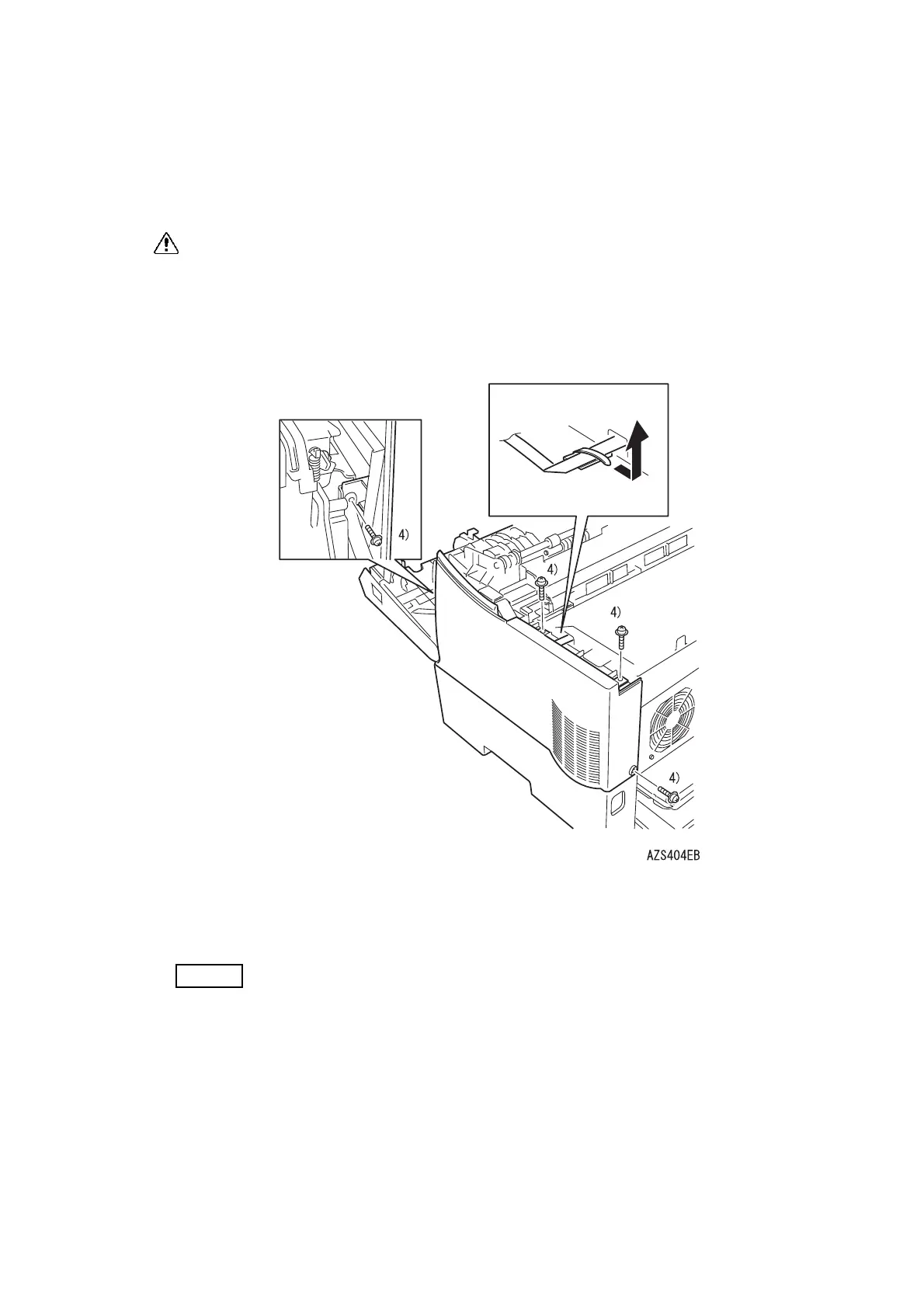

4) Remove the four screws (gold, with washer, 8mm) securing the COVER ASSY RIGHT CL.
5) Open the COVER ASSY RIGHT CL to right and lift the rear to remove the COVER ASSY RIGHT
CL upward.
<Replacement>
Perform the removal procedures in the reverse order.
NOTE
The COVER SIDE RIGHT should come to the bottom of the front cover.
