Fuji Xerox DocuPrint 2050 Service Manual

Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-70
REP9.5 COVER ASSY PWB (PL9.1.30)
<Removal>
1) Remove the COVER ASSY STACK CL. (REP1.7)
NOTE
Do not remove any screw in the procedure below because there are washers
between the CHASSIS CONTROLLER and COVER ASSY PWB.

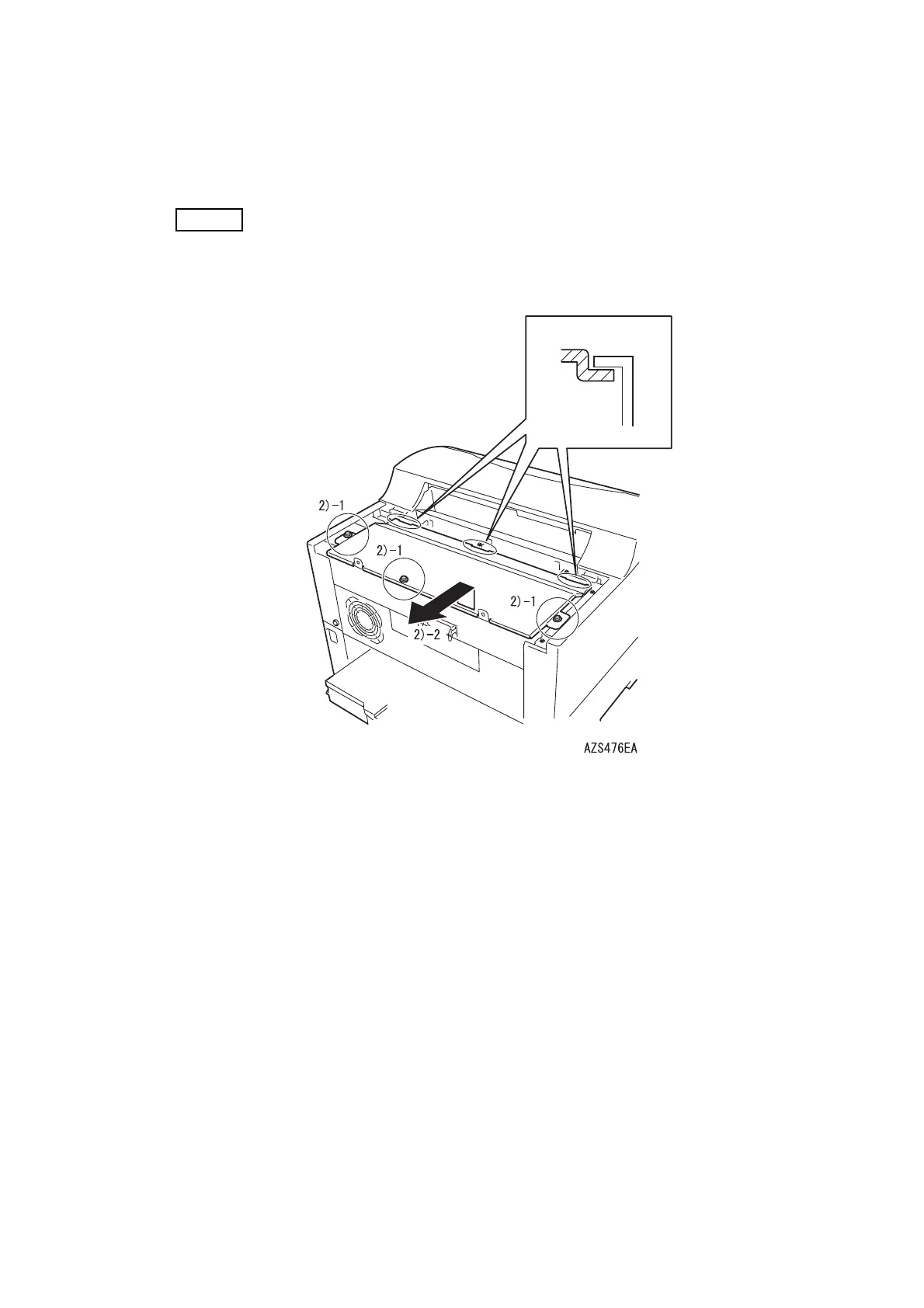

2) Fully loosen the three screws (gold, with washer, 10mm) securing the COVER ASSY PWB and lift
the back of the COVER ASSY PWB to remove backward.
<Replacement>
Perform the removal procedures in the reverse order.
