5.2 Parts List
5 - 9 Chapter 5 Parts List

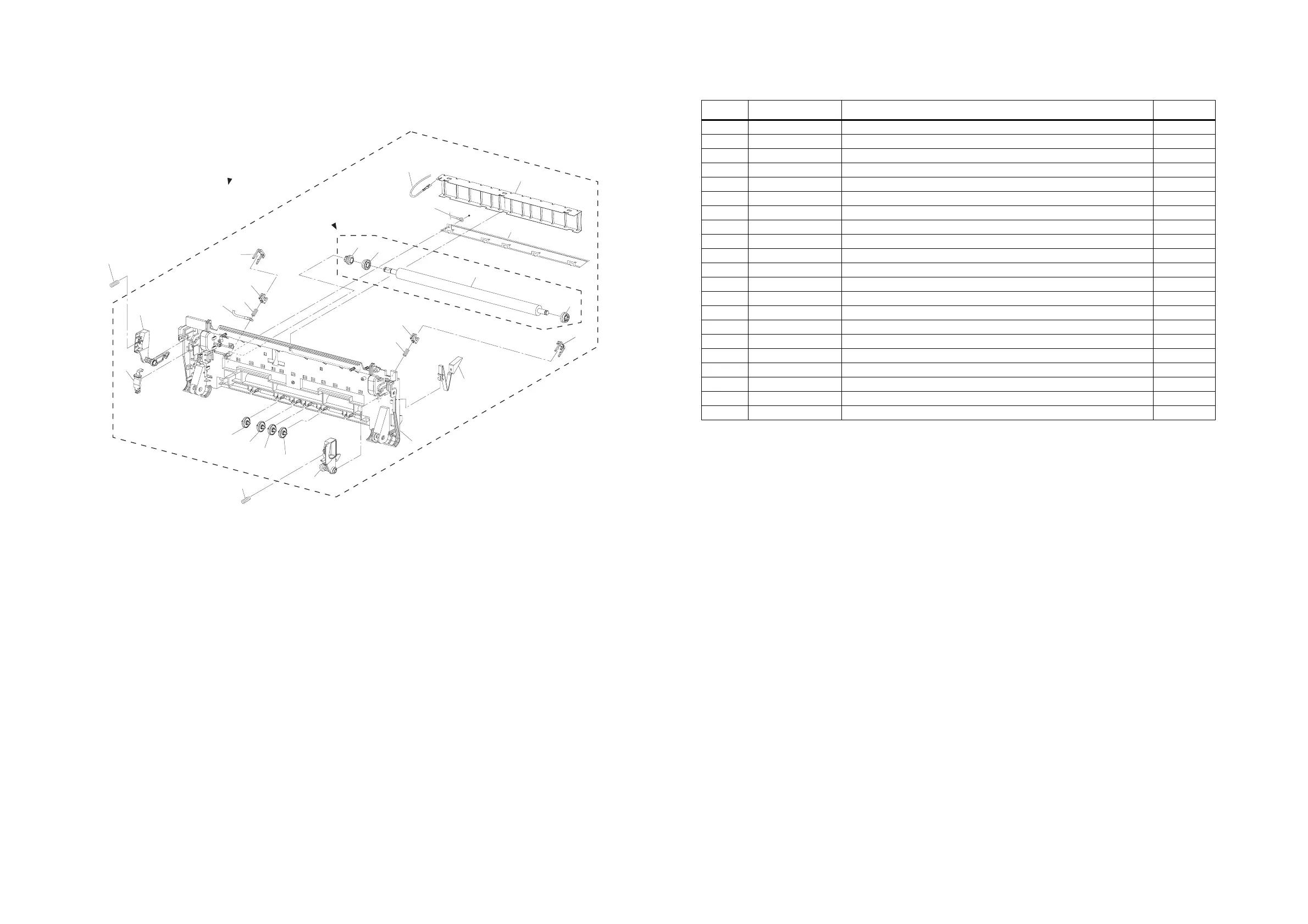

PL8.1 Paper Transportation
*: Periodical replacement part (after 100,000 prints)
AZS311EC
S
9
1 (with 2-19)
10
8
4
14
15
15
16
13 (with 14-16)
19
19
3
2
11
25
25
12
18
17
7
6
7
6
5
17
17
17
ITEM PARTS No. DESCRIPTION A.C
1
801K 22340 FRAME ASSY FRONT (with 2-19) 5300
2
-- FRAME FRONT 53B1
3
003E 64630 BELT FRONT 5311
4
-- PLATE DT SAW 53B2
5
162K 64680 HARNESS ASSY HV BTR (CN204) 53B3
6
-- SPRING BTR 53B4
7
-- BEARING BTR 53B5
8
162K 64670 (SCC) HARNESS ASSY HV DT (CN206) 53B6
9
-- CHUTE TRANS 53B7
10
162K 64690 (SCC) HARNESS ASSY HV TRANS (CN205) 53B8
11
011E 18140 LEVER FRONT R 53B9
12
011E 18150 LEVER FRONT L 53BB
13
059K 20420 ROLL ASSY BTR (with 14-16) * 53BC
14
-- ROLL BTR 53BD
15
-- COLLAR BTR 53BE
16
-- GEAR BTR 53BF
17
022E 28970 ROLL UNDER 53BG
18
-- HOLDER STOPPER L FRONT 53BH
19
021E 11570 CAP BTR BEARING 53BJ
20-24
-- -- 53BK
25
809E 33300 SPRING LEVER F 53BL
To Next Page
