Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-27
REP3.9 PLATE ASSY BTM TRAY (PL3.2.3)
NOTE
Do not disassemble the TRAY ASSY FRONT CL except handling parts in these
procedures.
<Removal>
1) Remove the FRAME BASE RTD TRAY HN. (Refer to REP 3.5)
2) Open the TRAY ASSY FRONT CL (PL3.2.1).
3) Remove TRAY ASSY FRONT CL. (REP3.8)

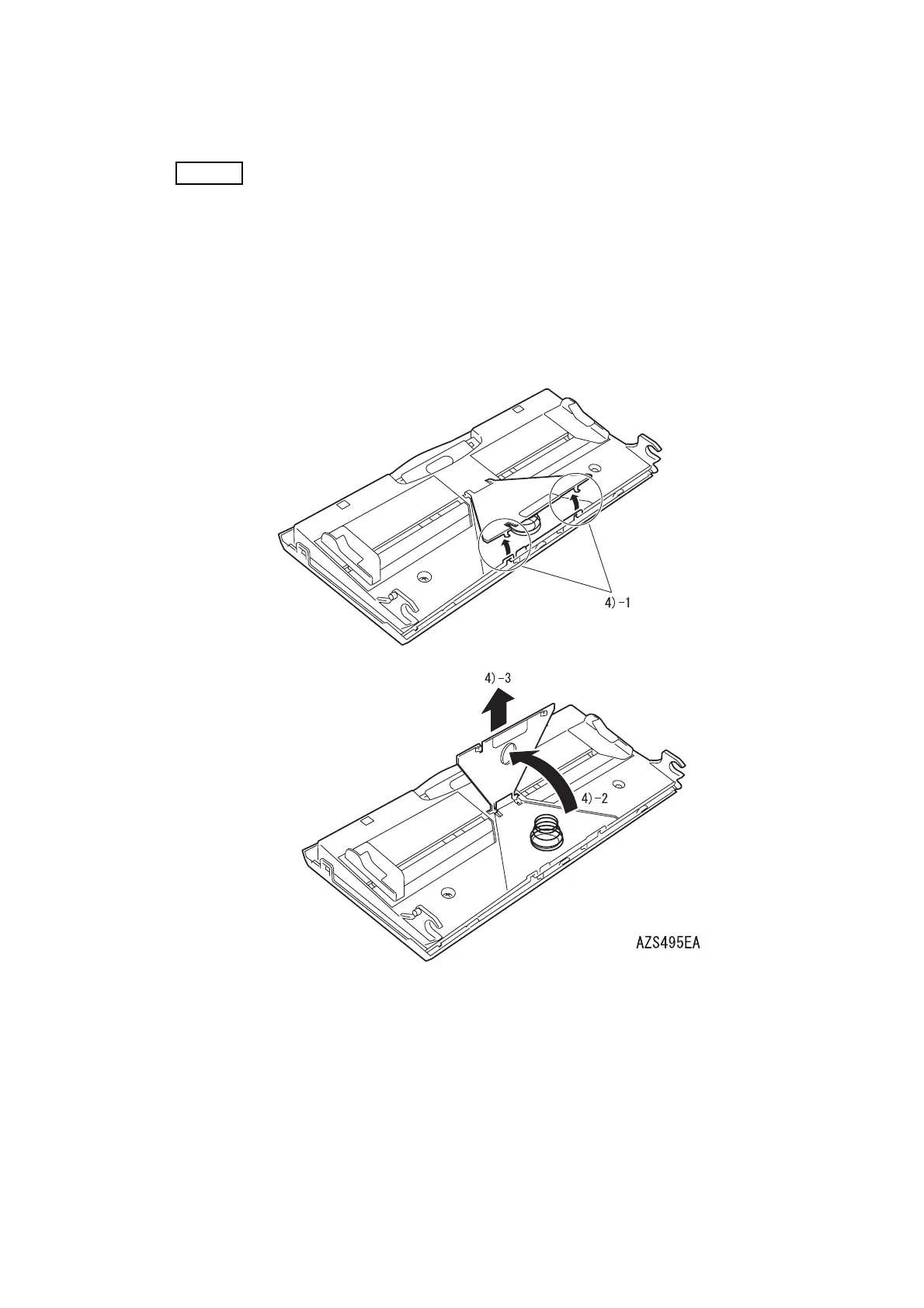

4) Release the two hooks using the small screwdriver and open the PLATE ASSY BTM TRAY to 90
degrees, remove it.
<Replacement>
Perform the removal procedures in the reverse order.
To Next Page
