Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-66
REP9. Frame & Electrical

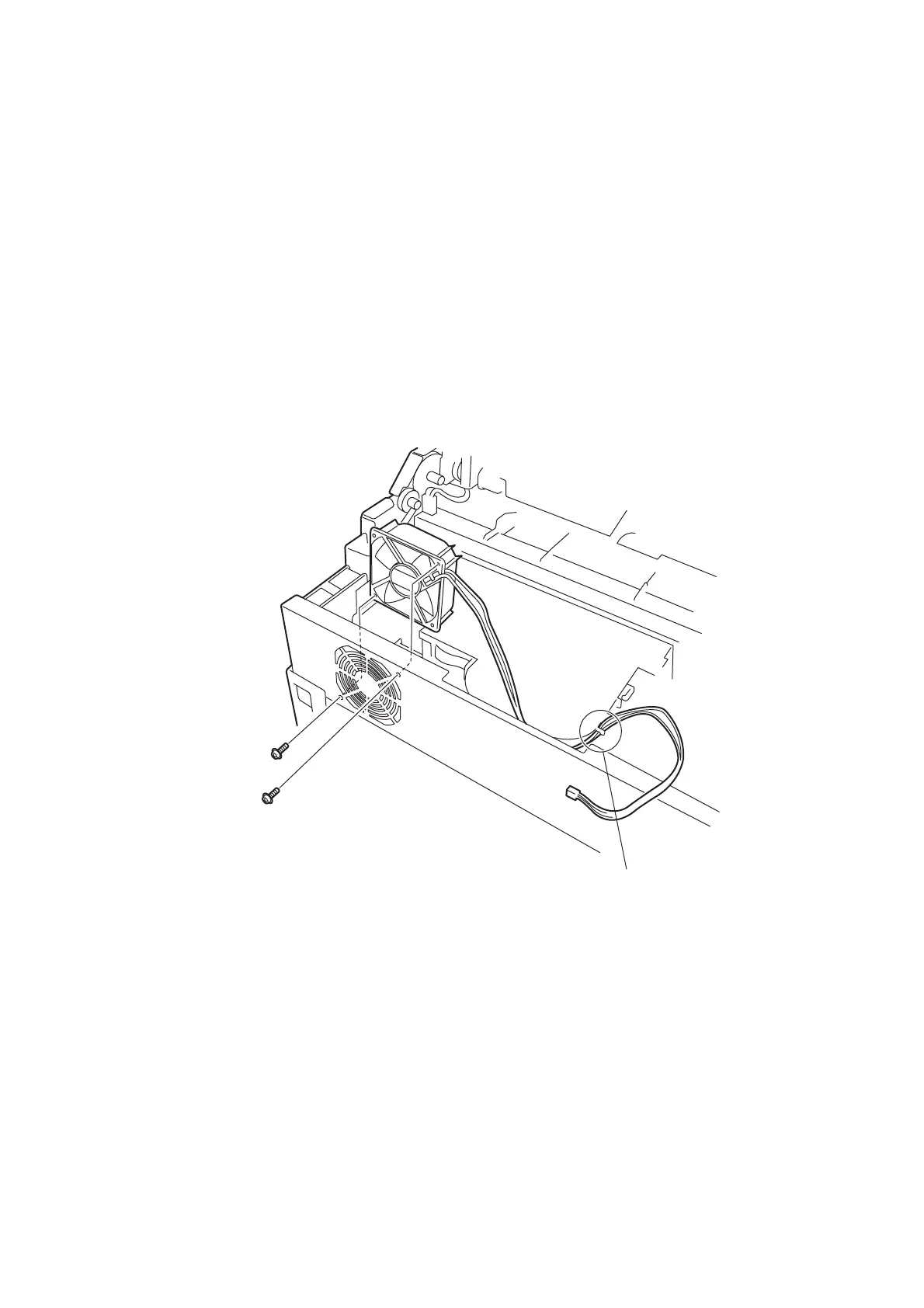

REP9.1 (SCC) FAN ASSY (PL9.1.3)
<Removal>
1) Pull the LEVER FRONT R and LEVER FRONT L toward you and open the COVER ASSY FRONT.
2) Remove the COVER ASSY STACK CL. (REP1.7)
3) Remove the COVER ASSY PWB. (REP9.5)
4) Remove the COVER ASSY TOP CL. (REP1.4)
5) Remove the COVER SIDE LEFT CL. (REP1.1)
6) Remove the COVER ASSY RIGHT CL. (REP1.2)
7) Remove the COVER MIDDLE CL. (REP1.3)
8) Remove the CHASSIS ASSY CONTROLLER. (REP9.2)
9) Remove the two screws (gold, with flange, tap, 8mm) securing the FAN and remove the FAN.
<Replacement>
Perform the removal procedures in the reverse order.
Hook
9)
9)
AZS470CA
