Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-57
REP8.2 LEVER FRONT L (PL8.1.12)
<Removal>
1) Pull the LEVER FRONT R and LEVER FRONT L toward you and open the COVER ASSY FRONT.
2) Remove the COVER FRONT LEFT. (REP3.7)
3) Remove the SPRING LEVER F (PL8.1.25).

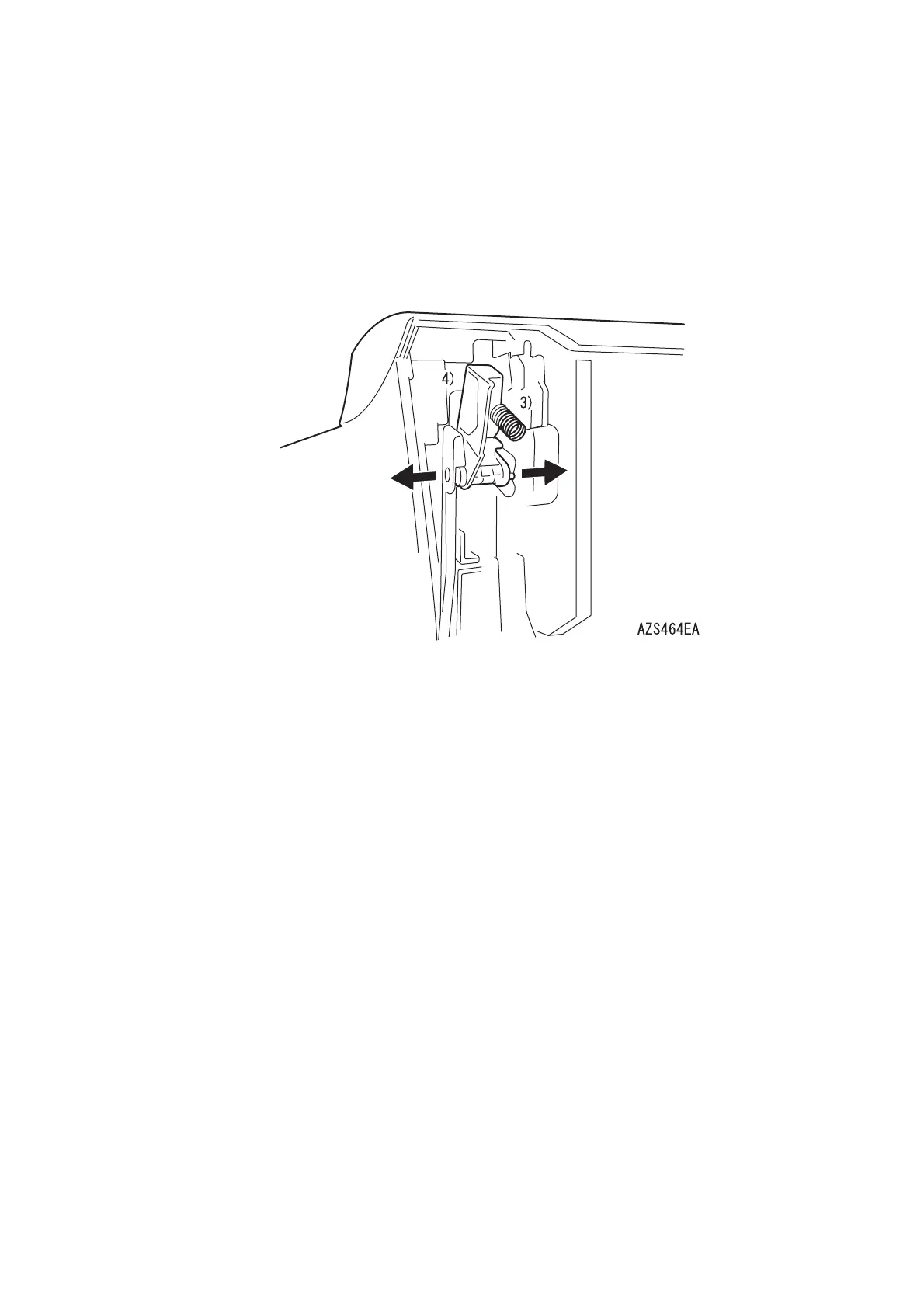

4) While pressing the bearing of the FRAME FRONT (PL8.1.2) with a straight-head screwdriver,
remove the LEVER FRONT L.
<Replacement>
Perform the removal procedures in the reverse order.
