Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-7
REP1.3 (SCC) COVER MIDDLE CL (PL1.1.6)
<Removal>
1) Pull the LEVER FRONT R and LEVER FRONT L toward you and open the COVER ASSY FRONT.
2) Remove the COVER ASSY STACK CL. (REP1.7)
CAUTION
Be careful not to damage the FFC OPP CL (PL1.1.21) in the procedure
below.
3) Remove the COVER ASSY TOP CL with the FFC OPP CL. (REP1.4)
4) Remove the COVER SIDE LEFT CL. (REP1.1)

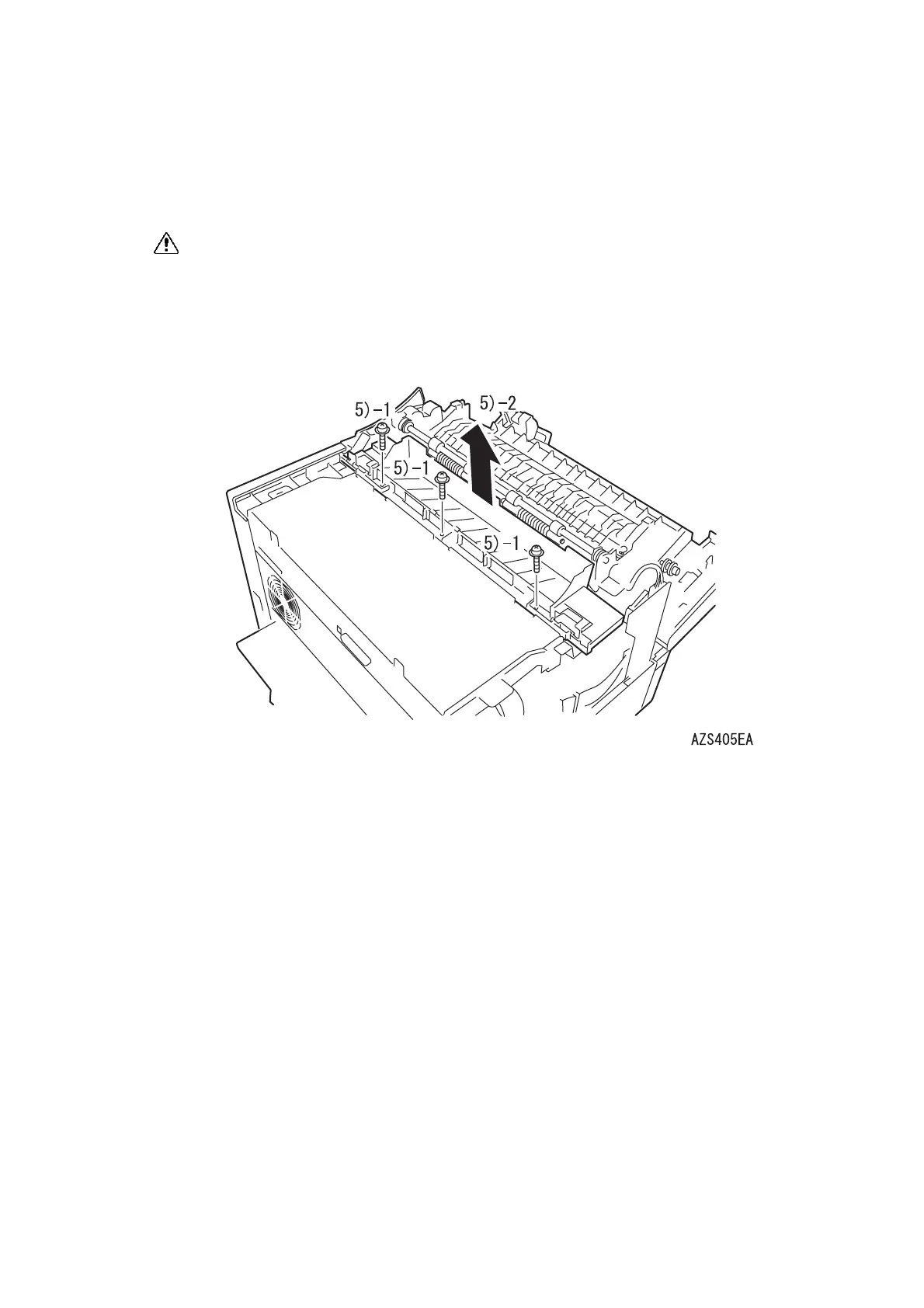

5) Remove the three screws (gold, with washer, 8mm) securing the COVER MIDDLE CL and lift the
cover backward to remove.
<Replacement>
Perform the removal procedures in the reverse order.
