Chapter 2 Troubleshooting
2.4 How to use PC Diag.
2-49

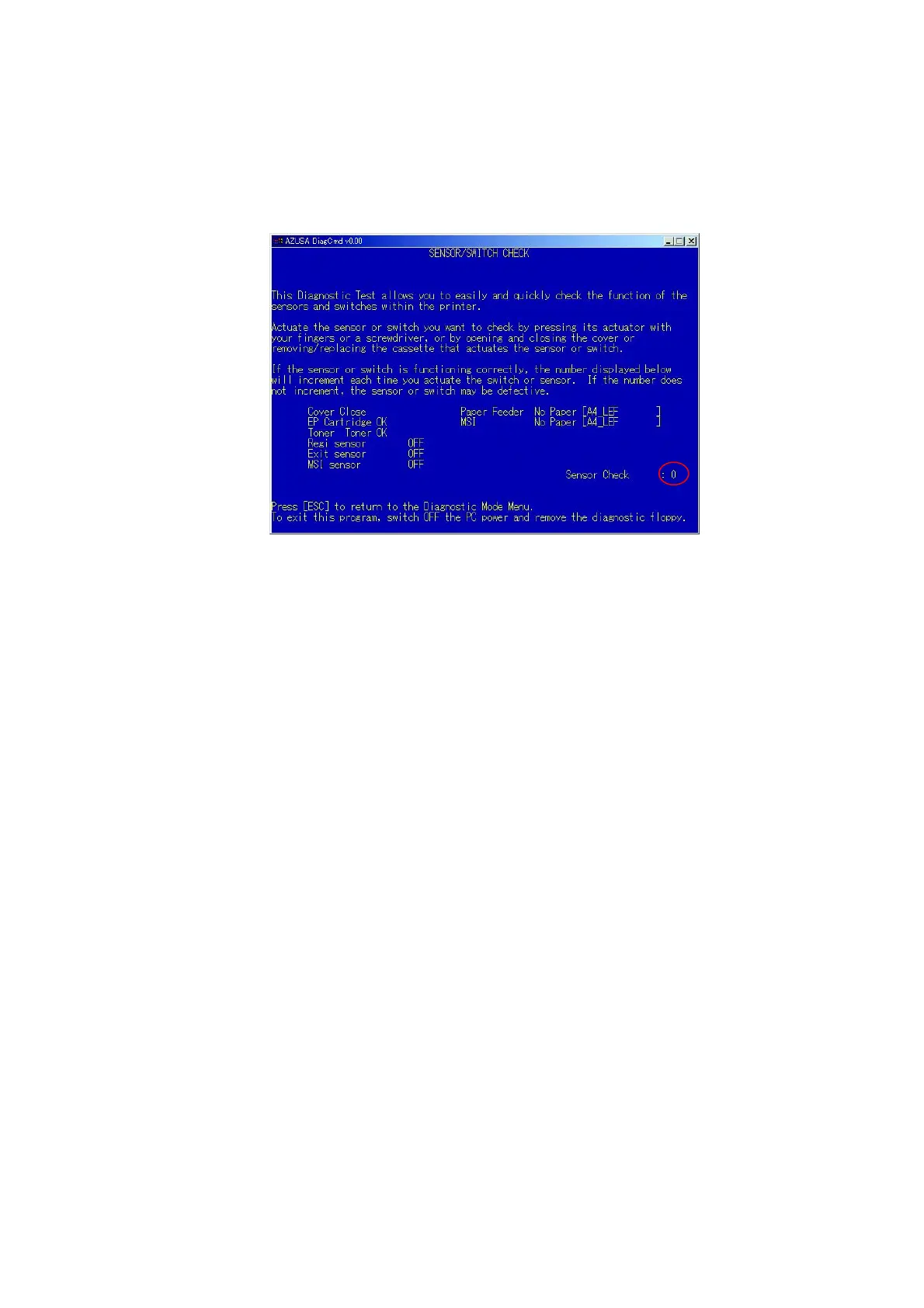

2.4.1.9.5 SENSOR/SWITCH CHECK (Diagnostic Code 01)
This function displays the reaction for each sensor provided in the device.
Use the up arrow, down arrow, left arrow, and right arrow keys to select [Sensor/Switch Check]
from DIAGNOSTIC MODE MENU. Press the [Enter] key.
When the change of the sensor is sensed, the numeric value on the lower right of the screen
(Sensor Check) is counted up. When the count reaches 15, it returns to 0 and count-up restarts.
Press the [Esc] key, return to the DIAGNOSTIC MODE MENU.
To Next Page
