Chapter 10 Machine Overview
10.5 Functions of Major Components
10-18
10.5.5 Frame and Drive
10.5.5.1 Major Functions [Drive]
- GEAR ASSY DRIVE
Consists of the MOTOR ASSY MAIN and driving gear that transmits the driving force of the MOTOR
ASSY MAIN to each part, and performs the mechanical driving by rotation of the MOTOR ASSY
MAIN.

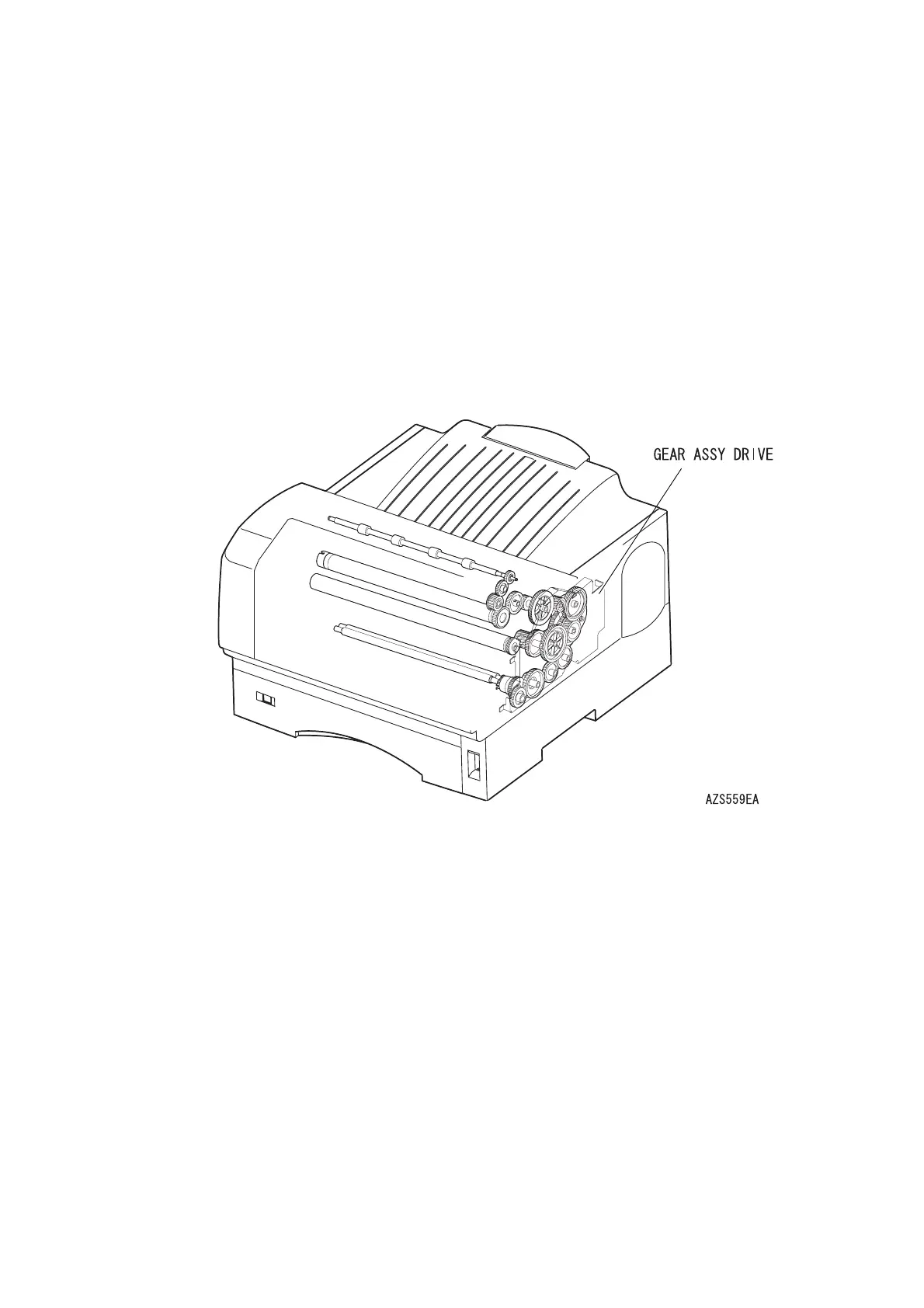

10.5.5.2 Reference Figure [Drive]
