Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-58

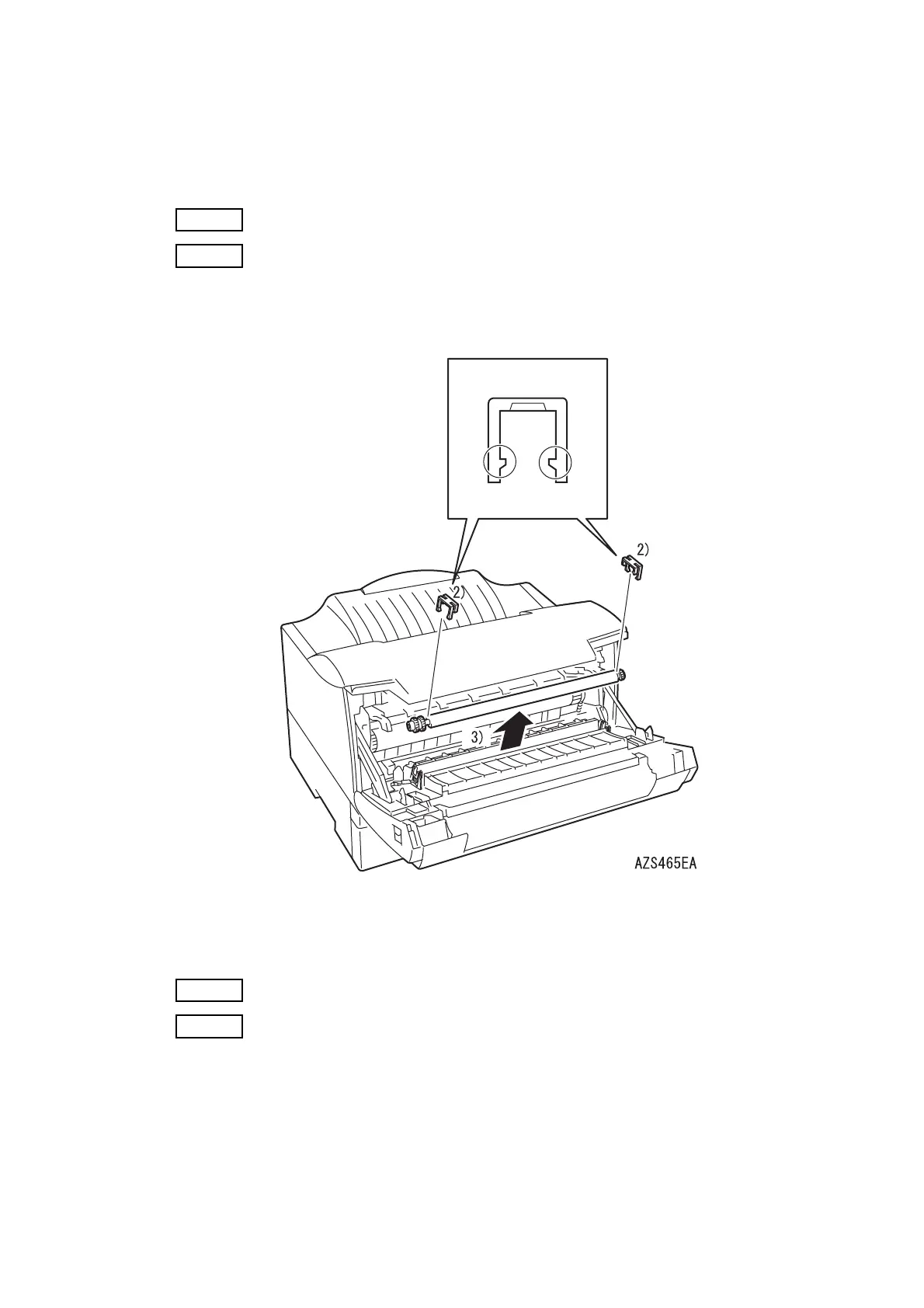

REP8.3 ROLL ASSY BTR (PL8.1.13)
<Removal>
1) Pull the LEVER FRONT R and LEVER FRONT L toward you and open the COVER ASSY FRONT.
NOTE
In the following procedure, the removal may be started from right or left.
NOTE
There are the hook of CAP BTR BEARING (PL8.1.19) in the outside of left and
right.
2) Unlock and remove the right and left CAP BTR BEARINGs.
3) Remove the ROLL ASSY BTR upward.
<Replacement>
Perform the removal procedures in the reverse order.
NOTE
Be careful to the direction when attaching the CAP BTR BEARING.
NOTE
After attaching, confirm that the ROLL ASSY BTR is slid up and down correctly.
