5.2 Parts List
5 - 7 Chapter 5 Parts List

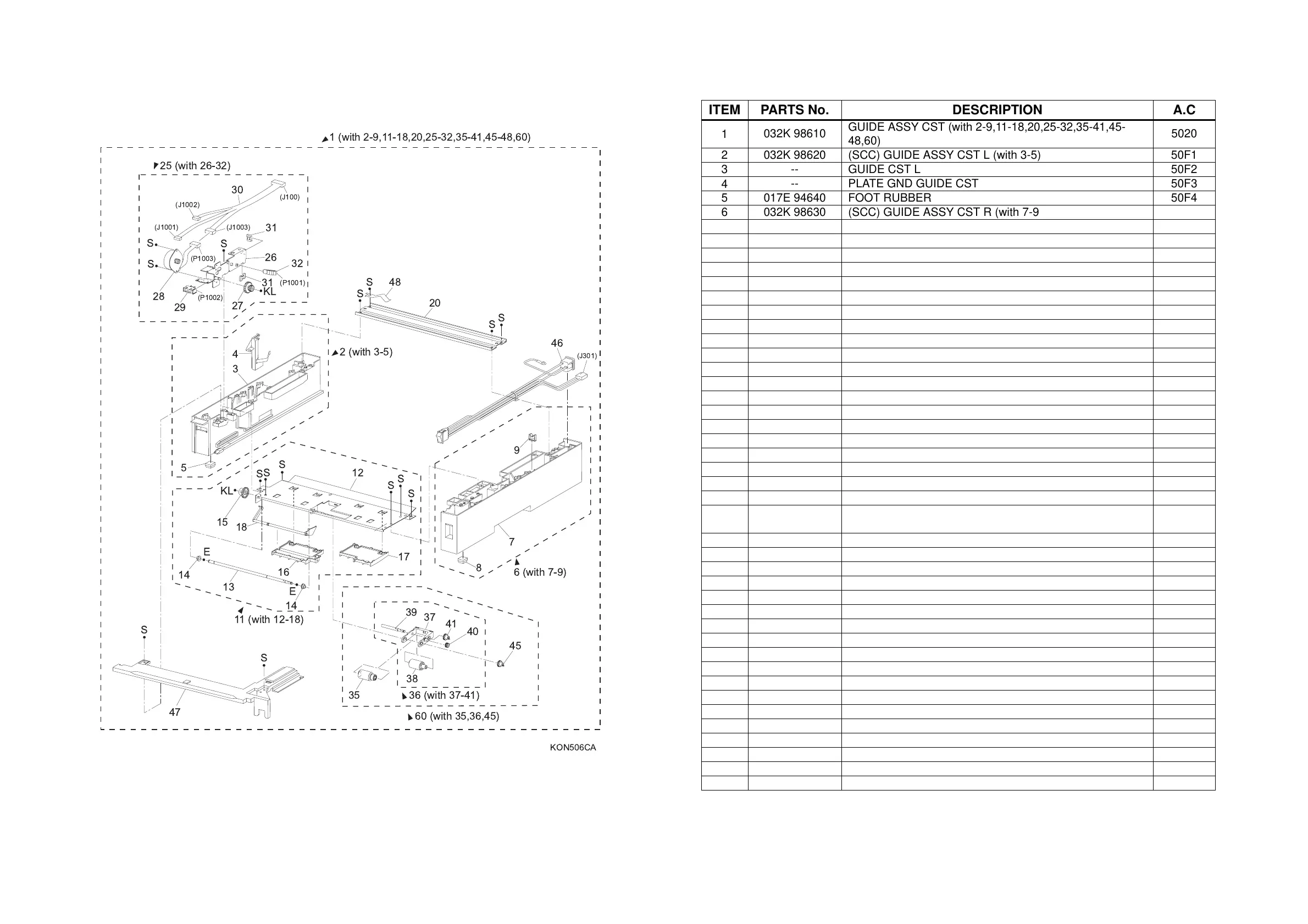

PL5.1 Cassette Guide
*: Periodical replacement part (after 100,000 prints)
ITEM PARTS No. DESCRIPTION A.C
1
032K 98610
GUIDE ASSY CST (with 2-9,11-18,20,25-32,35-41,45-
48,60)
5020
2
032K 98620 (SCC) GUIDE ASSY CST L (with 3-5) 50F1
3
-- GUIDE CST L 50F2
4
-- PLATE GND GUIDE CST 50F3
5
017E 94640 FOOT RUBBER 50F4
6
032K 98630 (SCC) GUIDE ASSY CST R (with 7-9) 50F5
7
-- GUIDE CST R 50F6
8
017E 94640 FOOT RUBBER 50F7
9
-- SADDLE WIRE 50F8
10
-- -- 50F9
11
-- FEEDER ASSY (with 12-18) 50FB
12
-- FRAME FEEDER 50FC
13
-- SHAFT FEED ROLL FRONT 50FD
14
-- BEARING FEED ROLL 50FE
15
007E 70770 GEAR FEED ROLL 50FF
16
-- GUIDE PAPER 250 CST L 50FG
17
-- GUIDE PAPER 250 CST R 50FH
18
120E 26850 ACTUATOR PAPER EMPTY 50FJ
19
-- -- -
20
032E 25720 STAY GUIDE CASSETTE 50FK
21-24
-- -- 50FL
25
007K 94310 (SCC) GEAR ASSY CST (with 26-32) 50FM
26
-- PLATE ASSY GEAR 50FN
27
807E 10830 GEAR FEED 39-20 50FP
28
127K 48450 (SCC) FEED MOTOR ASSY (P1003) 5021
29
110E 10670 SWITCH P/SIZE (P1002) 50FQ
30
962K 36990
(SCC) HARNESS ASSY PH (J100 - J1001, J1002,
J1003A)
50FR
31
-- SADDLE WIRE 50FS
32
130E 89320 (SCC) SENSOR PHOTO (P1001) 50FT
33
-- -- 50FV
34
-- -- 50FW
35
-- ROLL FEED FRONT D 50FX
36
-- ROLL ASSY FEED REAR (with 37-41) 50FY
37
-- COVER FEED ROLL 50G1
38
-- ROLL FEED REAR 2 50G2
39
-- SHAFT FEED ROLL REAR 50G3
40
-- GEAR IDLE 50G4
41
-- GEAR 50G5
42-44
50G6
45
-- GEAR 50G7
46
962K 37000 (SCC) HARNESS ASSY ACIN (J301) 50G8
47
032K 98650 GUIDE ASSY FRONT 50G9
48
115E 08330 PLATE GND CHASSIS 50GA
49-59
-- -- 50GB
60
604K26230 KIT ROLL FEED ASSY (with 35,36,45) * 50GC
To Next Page
