Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-52
REP7.2 (SCC) MOTER ASSY MAIN (PL7.1.2)
<Removal>
1) Pull the LEVER FRONT R and LEVER FRONT L toward you and open the COVER ASSY FRONT.
2) Remove the COVER ASSY STACK CL. (REP1.7)
3) Remove the COVER ASSY PWB. (REP9.5)
4) Remove the COVER ASSY TOP CL. (REP1.4)
5) Remove the COVER ASSY RIGHT CL. (REP1.2)
6) Remove the GEAR ASSY. (REP7.1)

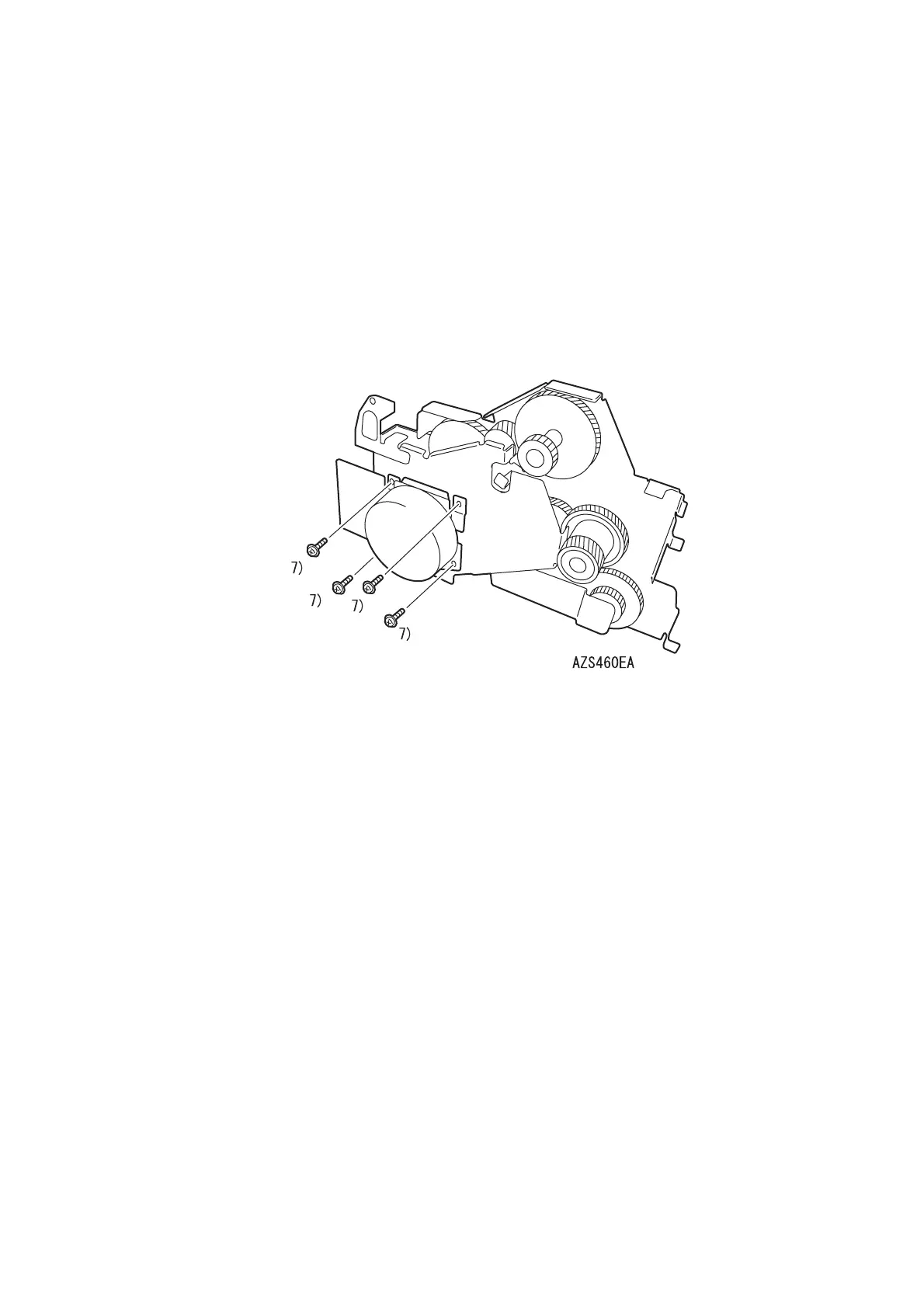

7) Remove the four screws (gold, with washer, 6mm) that fix the MOTOR ASSY MAIN to the PLATE
ASSY GEAR (PL7.1.3).
<Replacement>
Perform the removal procedures in the reverse order.
