Chapter 10 Machine Overview

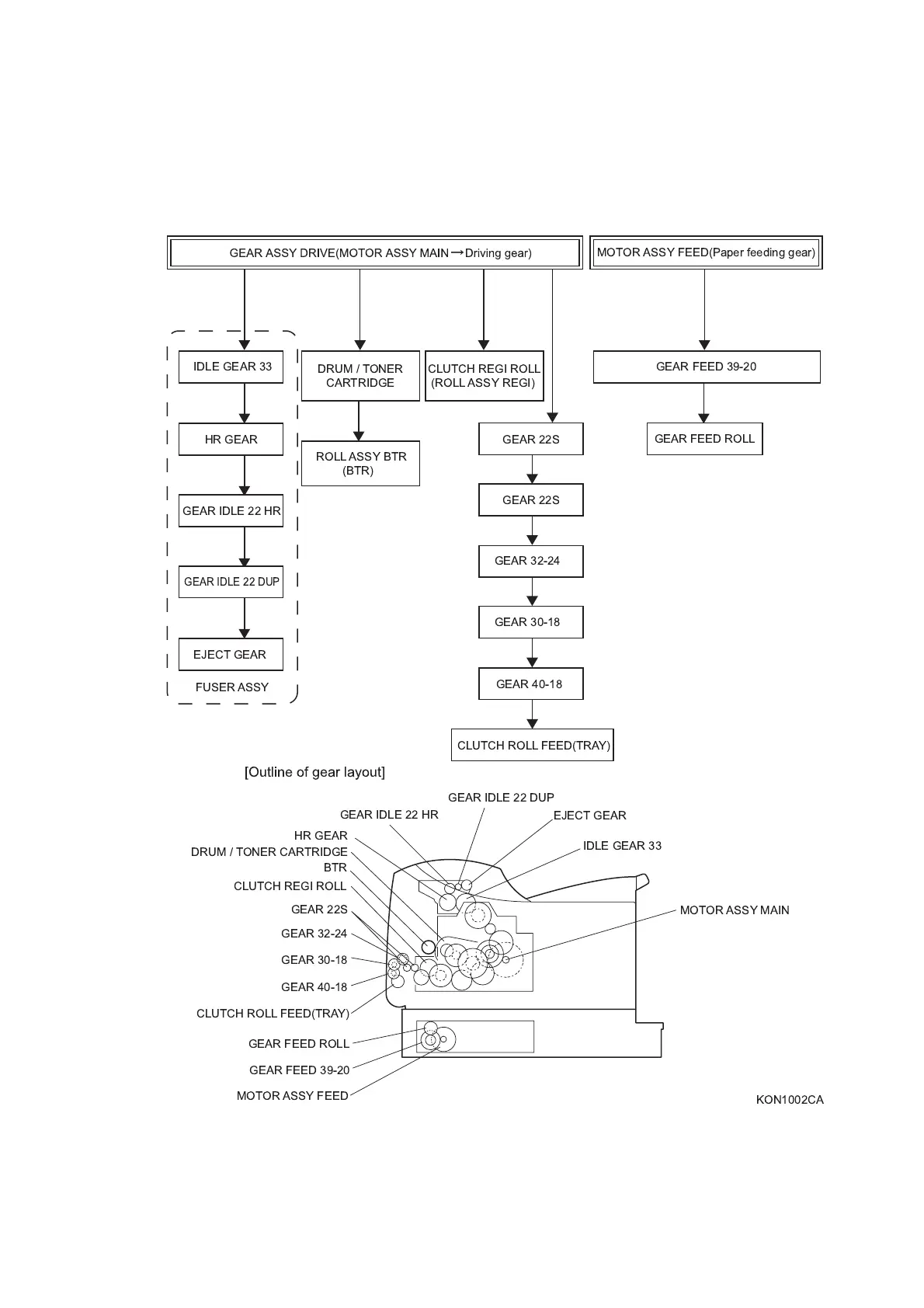

10.3 Drive Transmission Route
10-10
10.3 Drive Transmission Route
The torque of the Main Motor in the GEAR ASSY DRIVE changes to the driving forth through the
driving gear, and transmitted in the following flow.
GEAR 22S
GEAR 32-24
GEAR 30-18
GEAR 40-18
CLUTCH ROLL FEED(TRAY)
GEAR 22S
MOTOR ASSY FEED(Paper feeding gear)
GEAR 22S
GEAR 32-24
GEAR 30-18
GEAR 40-18
CLUTCH ROLL FEED(TRAY)
KON1002CA
CLUTCH REGI ROLL
(ROLL ASSY REGI)
GEAR IDLE 22 HR
GEAR IDLE 22 HR
GEAR IDLE 22 DUP
GEAR IDLE 22 DUP
EJECT GEAR
EJECT GEAR
FUSER ASSY
IDLE GEAR 33
IDLE GEAR 33
HR GEAR
HR GEAR
BTR
CLUTCH REGI ROLL
GEAR FEED ROLL
GEAR FEED ROLL
GEAR FEED 39-20
GEAR FEED 39-20
MOTOR ASSY FEED
[Outline of gear layout]
MOTOR ASSY MAIN
ROLL ASSY BTR
(BTR)
DRUM / TONER CARTRIDGE
DRUM / TONER
CARTRIDGE
