Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-22
REP3.4 ROLL FEED ASSY TRAY (PL3.1.21)
<Removal>
1) Remove the CASSETTE ASSY 250 CL from the printer.
2) Remove the FRAME BASE RTD TRAY HN. (Refer to REP 3.5)
3) Open the TRAY ASSY FRONT CL (PL3.2.1).

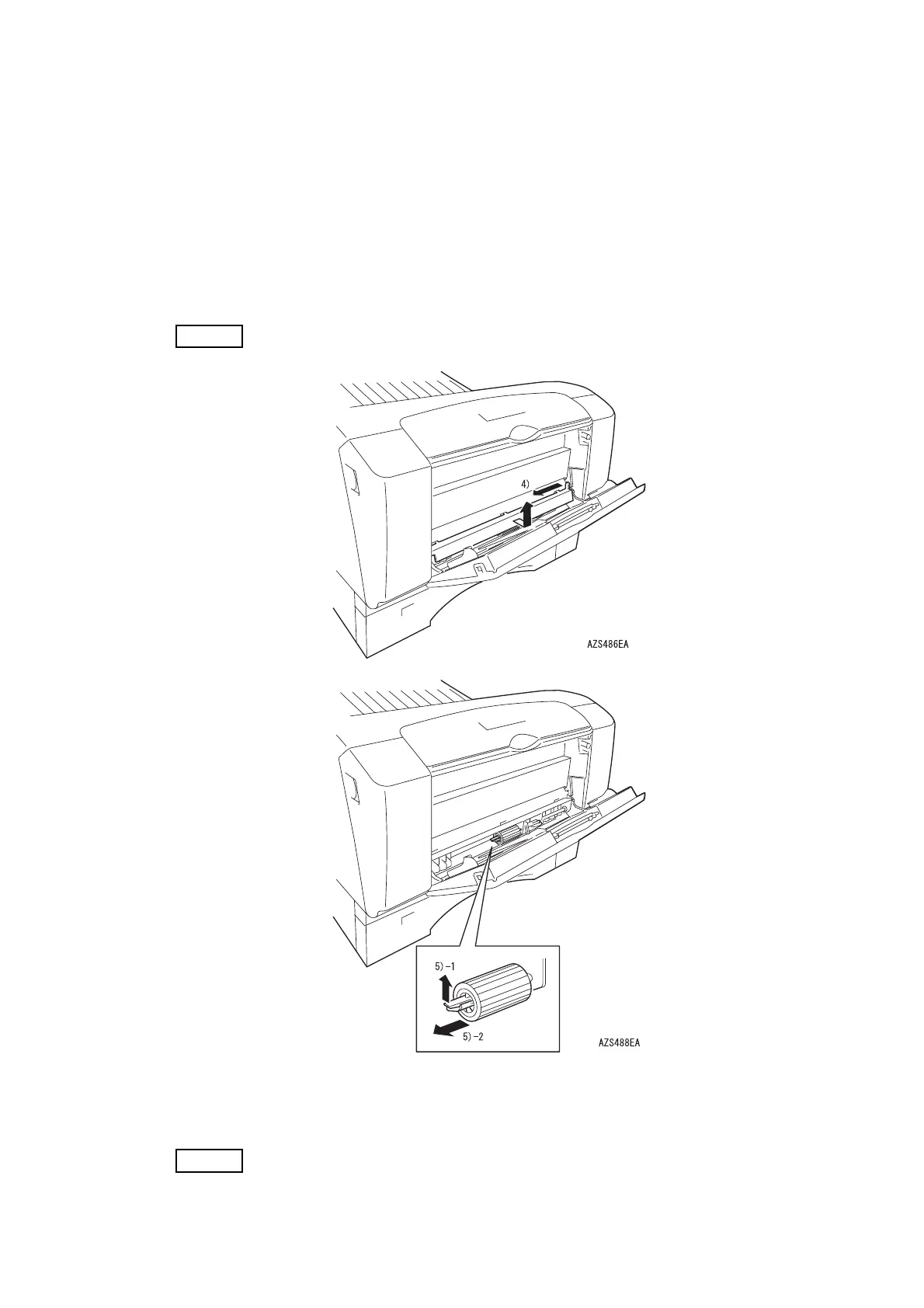

4) Pick the tab of the GUIDE ASSY PAPER TRAY (PL3.1.25) and slide it to the left.
5) Release the hook of the ROLL FEED ASSY TRAY, remove it from the SHAFT ROLL FEED
(PL3.1.14).
NOTE
When removing the ROLL ASSY TRAY, be careful not to touch the rubber part.
<Replacement>
Perform the removal procedures in the reverse order.
NOTE
When attaching the SHAFT ROLL FEED, be careful to the direction because the
cross section of SHAFT ROLL ASSY is D-shaped.
To Next Page
