Fuji Xerox DocuPrint 2050 Service Manual

Chapter 10 Machine Overview
10.5 Functions of Major Components
10-23
10.5.8 MSI Assy
10.5.8.1 Major Functions [MSI Assy]
ROLL FEEDER ASSY TRAY
Transports the paper fed from the MSI by the driving force of the MOTOR ASSY MAIN.
CLUTCH ROLL FEED (TRAY)
Starts operation the predetermined time after the SENSOR PHOTO senses paper, transmits the
driving force the gear unit to the ROLL FEED ASSY TRAY.
SENSOR PHOTO
Senses whether paper is set in the MSI with the ACTUATOR PE SENSOR.

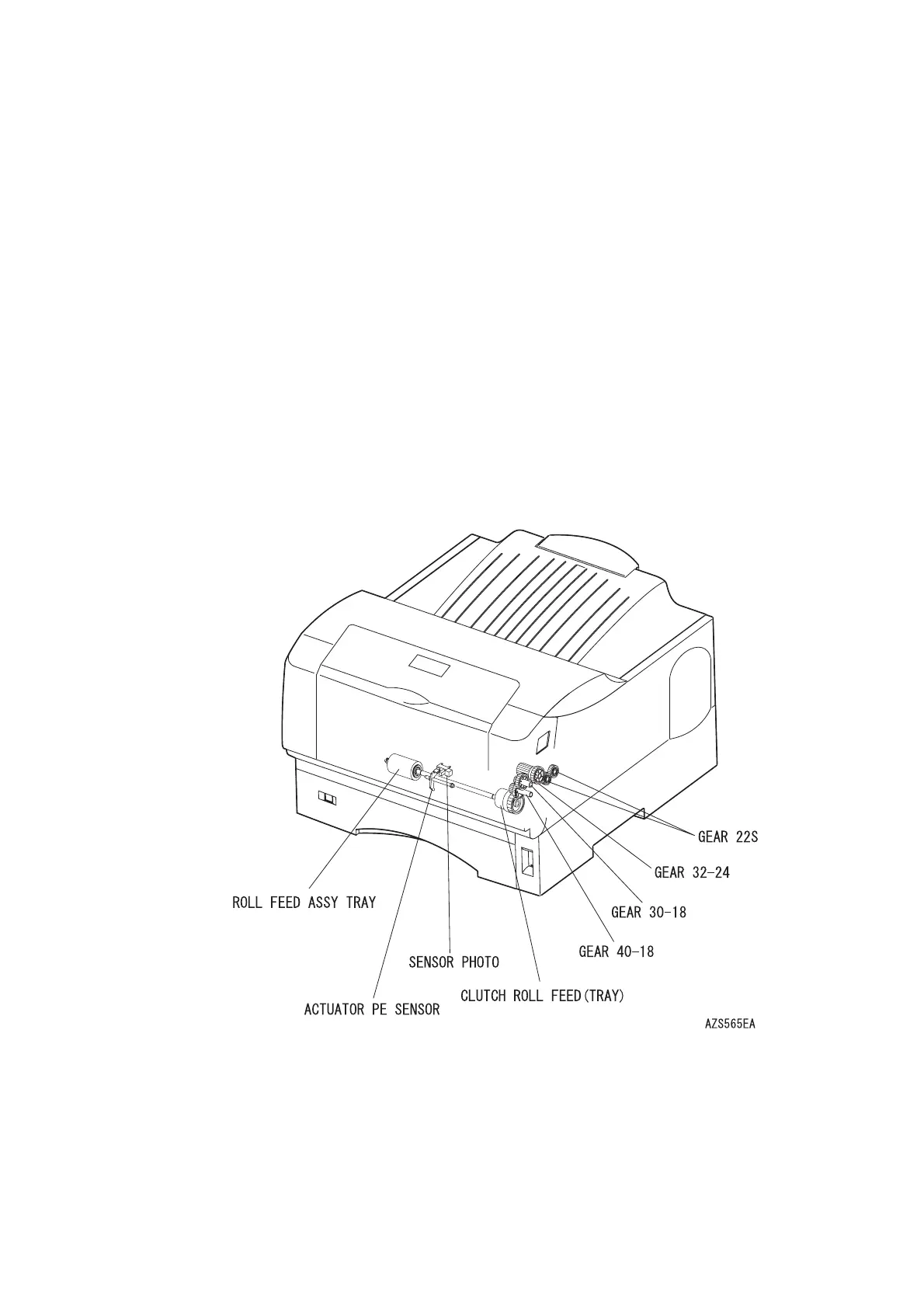

10.5.8.2 Reference Figure [MSI Assy]
