Fuji Xerox DocuPrint 2050 Service Manual

Chapter 7 Wiring Data
7.3 Wiring Diagram between Parts
7-15

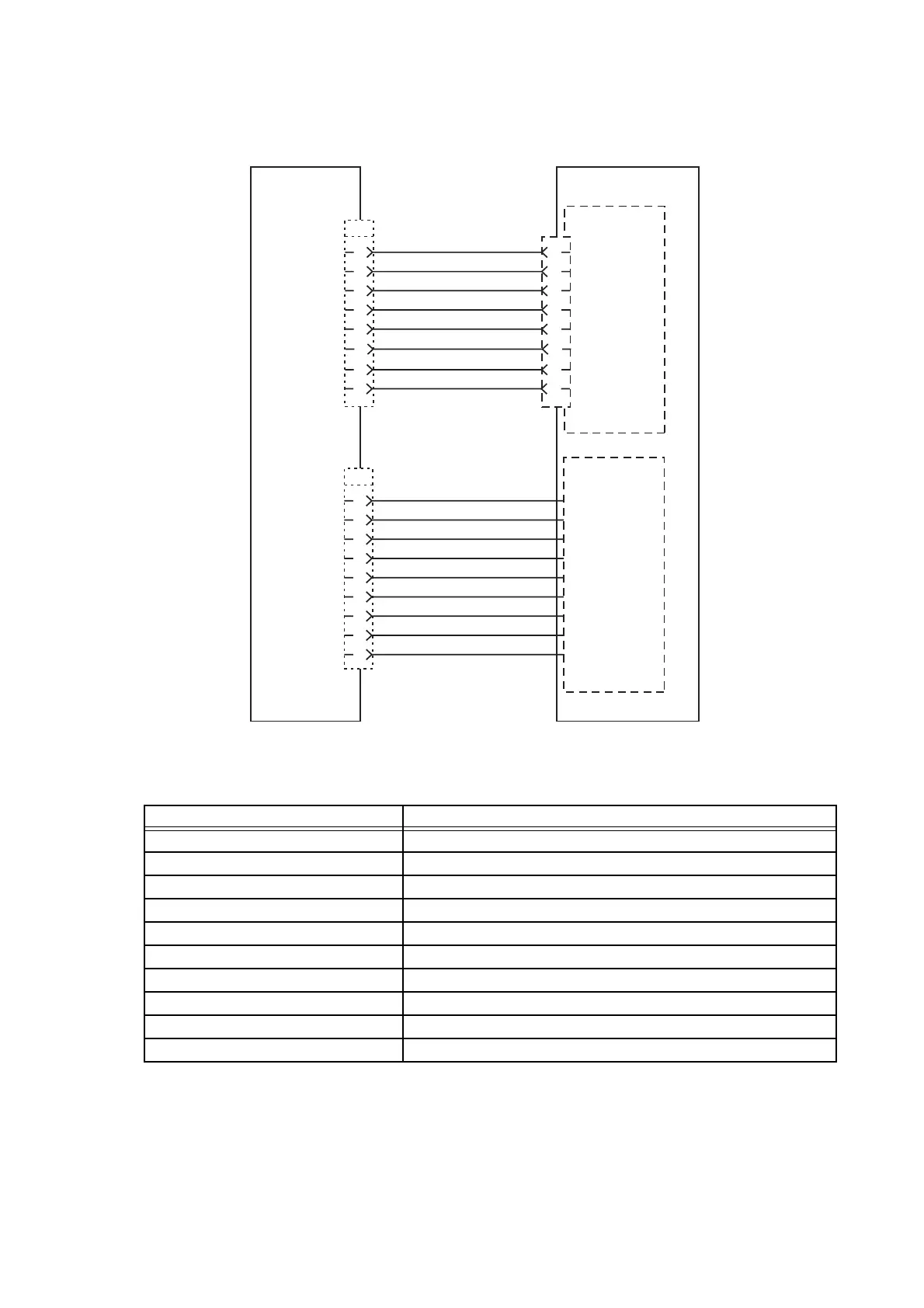

§ 5 PWBA MCU <-> ROS ASSY
Signal line name Reference
ScanMotorDrive (LowAct) (L) Scanner Motor ON/OFF control signal
ScanMotorLock (L) Scanner Motor lock signal
ScanMotorClock Scanner Motor clock signal
LD PowerControl Laser luminous-energy control signal
LD Monitor Laser luminous-energy monitor signal
HSYNC Signal (L) Horizontal cycle signal
InterLock5V Interlock 5VDC
LD On/Off (L) Laser ON/OFF control signal
Video Data Video data signal
LD Driver IC Enable (L) Laser driver enable control signal
P/J105
1
2
3
4
5
8
7
6
5
4
P/J106
1
2
3
4
5
6
7
8
9
24VDC
LD PowerControl
LD Monitor
HSYNC Signal (L)
GND
InterLock5V
GND
LDOn/Off (L)
Video Data
LD Driver IC Enable (L)
GND
ScanMotorDrive(LowAct)(L)
ScanMotorLock (L)
ScanMotorClock
ROS ASSY
PL10.1.1
Scanner
Motor
LD ASSY
KON659CA
6
3
7 2
8 1
GND
GND
24VDC
PWBA MCU
XFABK(B)
PL9.1.25
