Fuji Xerox DocuPrint 2050 Service Manual

Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-16
REP2.4 LOCK SIDE GUIDE 250 CL (PL2.1.16)
<Removal>
1) Remove the GUIDE SIDE R 250 CL. (REP2.3)

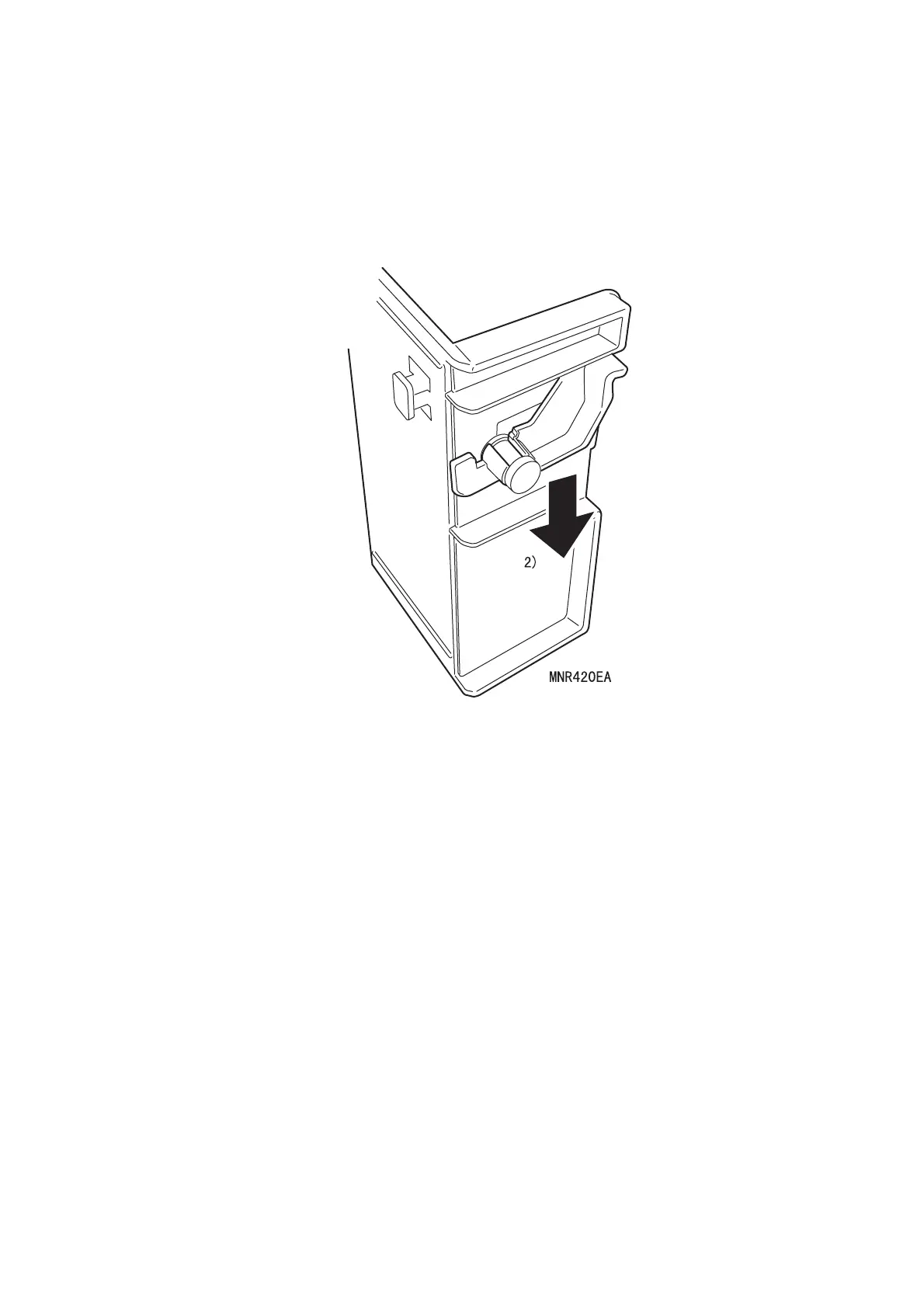

2) Set the LOCK SIDE GUIDE 250 CL (PL2.1.16) to the lock position and remove the LOCK SIDE
GUIDE 250 CL (PL2.1.16) from the pin of GUIDE SIDE R 250 CL.
<Replacement>
Perform the removal procedures in the reverse order.
