Fuji Xerox DocuPrint 2050 Service Manual

Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-13
REP2.2 GUIDE END 250 CL (PL2.1.12)
<Removal>
1) Remove CASSETTE ASSY 250 CL from the printer.

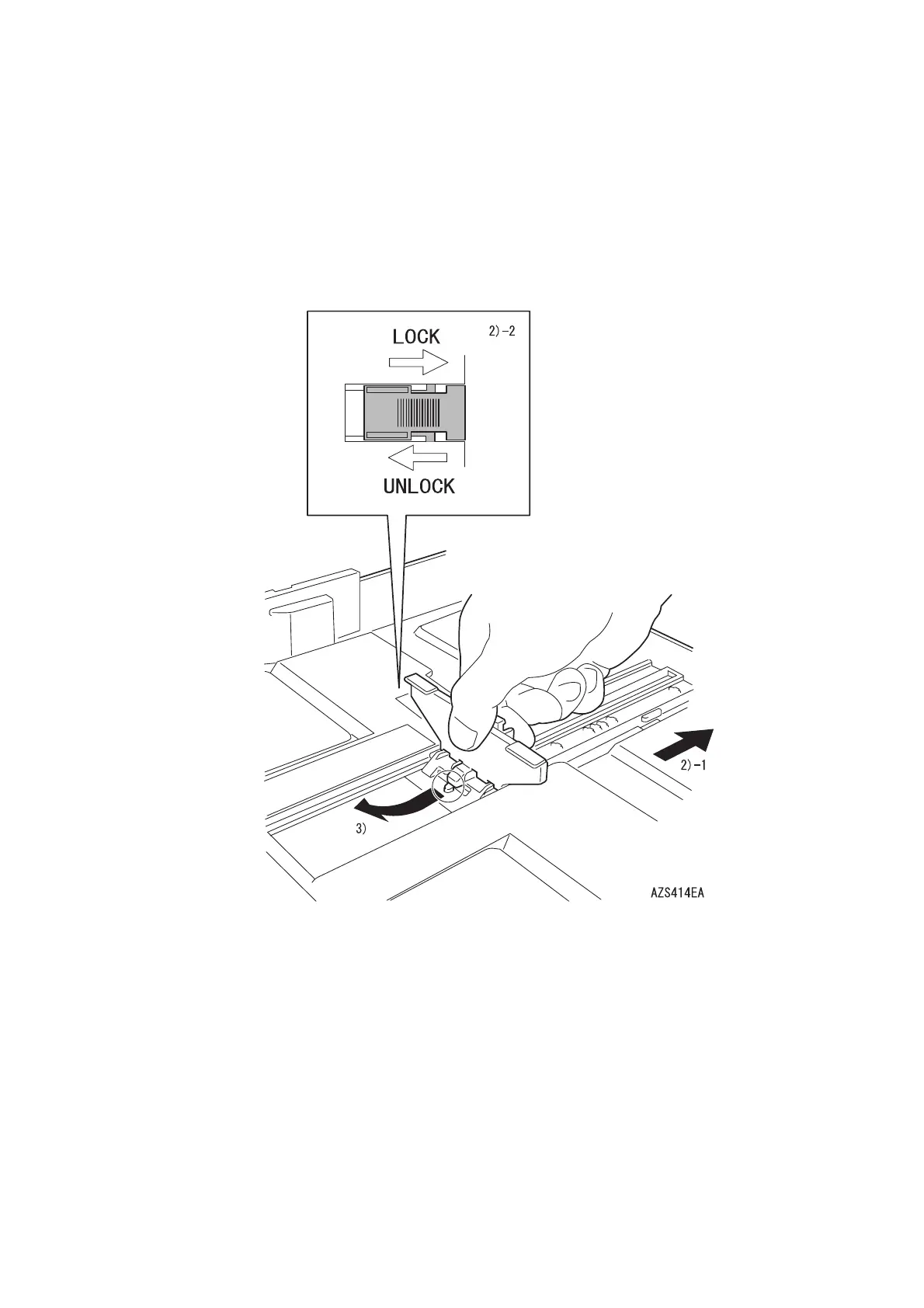

2) Extend the CASSETTE SLIDE CL to the full and lock it with the LOCK SIDE GUIDE 250 CL
(PL2.1.18).
3) Hold the lock of the GUIDE END 250 CL.
While lifting the tip, slide the end guide to the front and remove it.
<Replacement>
Perform the removal procedures in the reverse order.
