Chapter 6 General
6.5 Installation Procedure
6-33
6.5.5.3 Installing SimpleMonitor

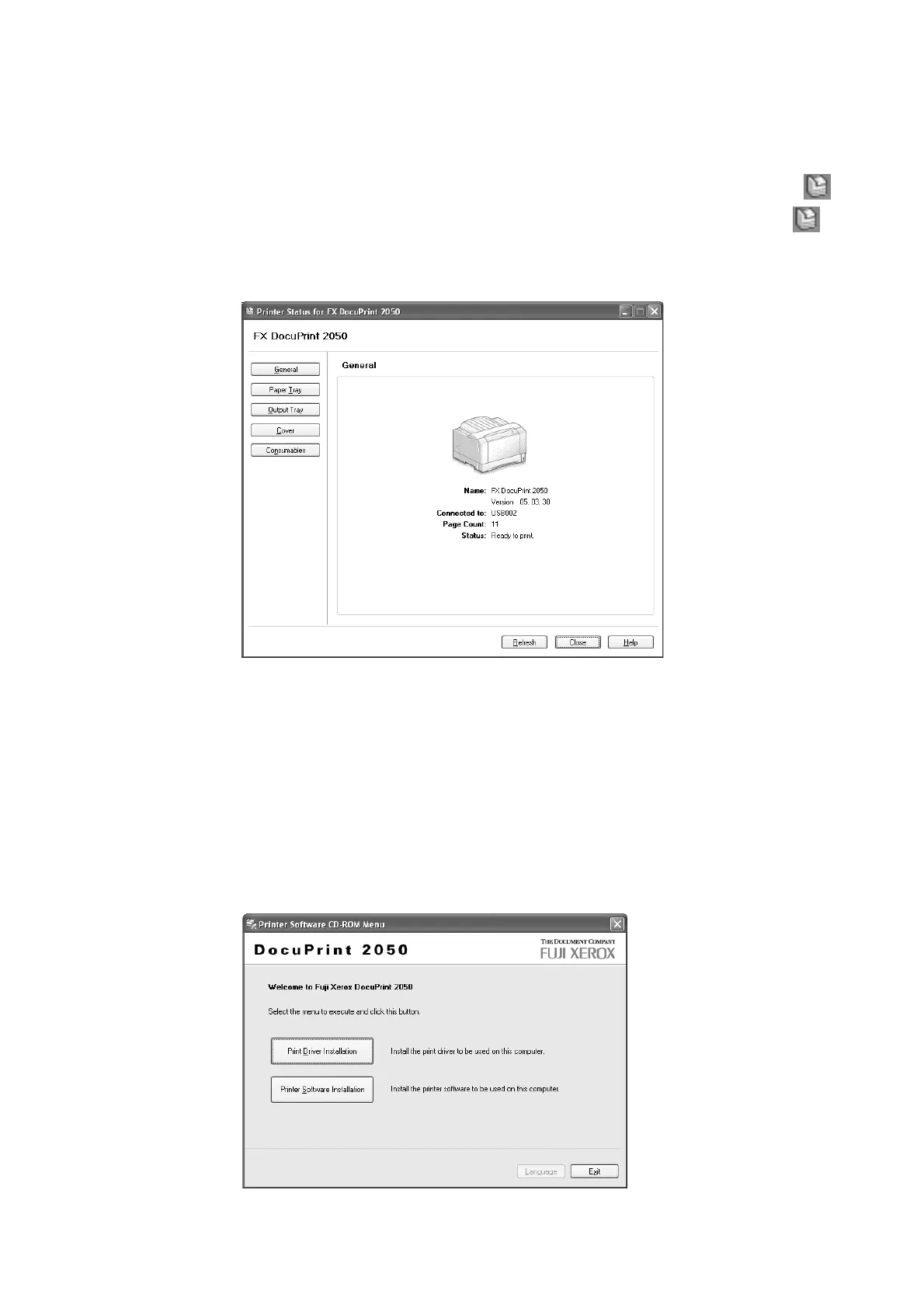

SimpleMonitor is software that allows you to check the status of the printer and stop print jobs
in progress from the computer. When SimpleMonitor is installed, the SimpleMonitor icon
will be displayed on the taskbar at the bottom right of the screen. Double-click the icon
and then select the printer in the [Select Printer] dialog box.
For details about SimpleMonitor, refer to the Online Help for SimpleMonitor.
Follow this procedure to install SimpleMonitor.
Important
• Make sure that the [Enable bidirectional support] check box in the [Port] tab of the printer properties dialog
box is selected for the bi-directional communication. If the check box is not selected, SimpleMonitor does
not start.
1. Insert the Software Pack CD-ROM into the CD-ROM drive. The [Printer Software
CD-ROM Menu] dialog box appears automatically.
2. Click [Printer Software Installation].
To Next Page
