Chapter 2 Troubleshooting
2.4 How to use PC Diag.
2-61
2.4.1.9.17 TRANSFER ROLL-TEST (Diagnostic Code 1B)
This function applies minus voltage to the Transfer Roll.
WARNING
Take great care that you do not receive an electric shock because the
minus voltage is high.

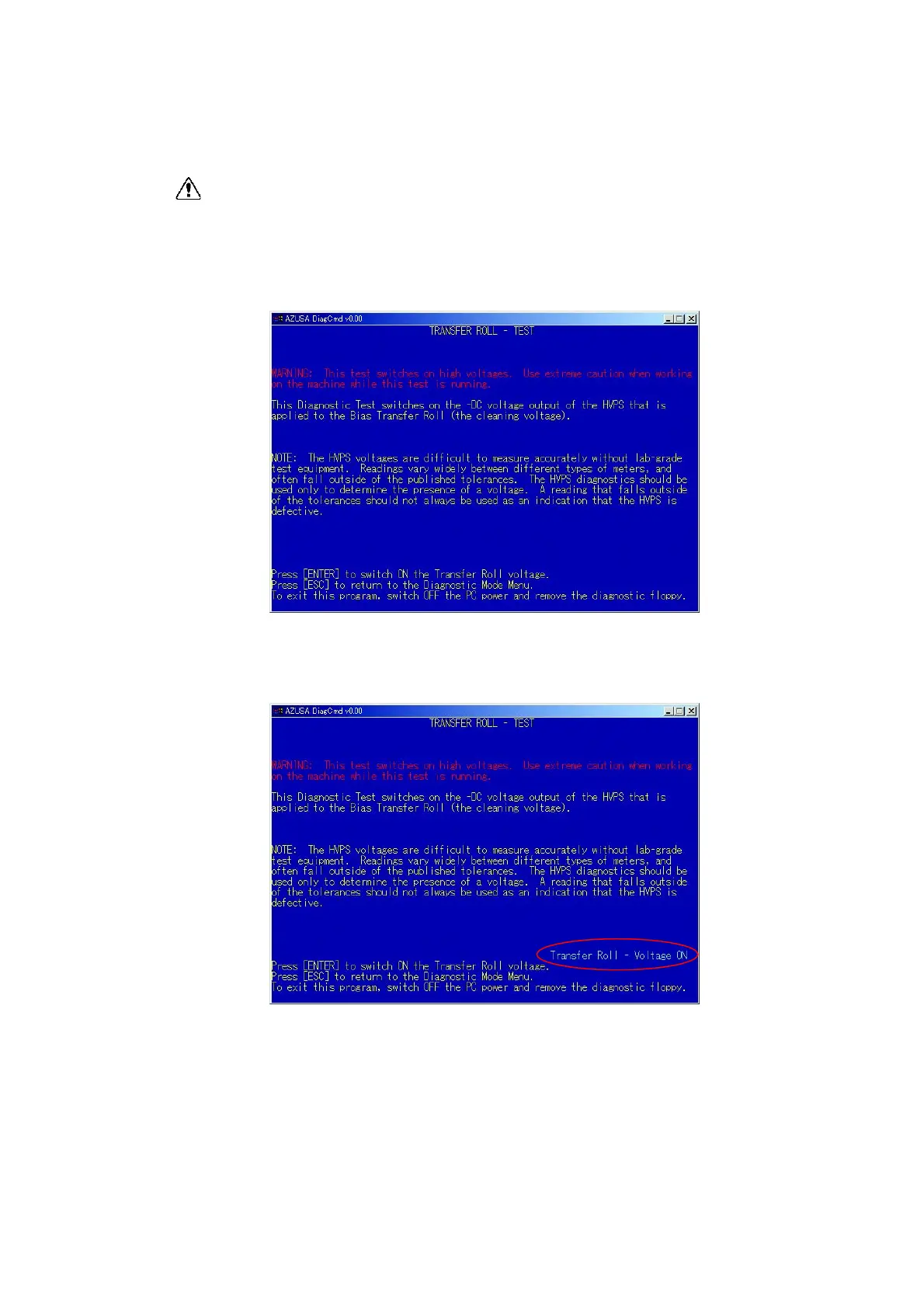

Use the up arrow, down arrow, left arrow, and right arrow keys to select [Transfer Roll - Test] and
press the [Enter] key; the screen below appears.
Then press the [Enter] key again to execute this processing.
The state of operation is displayed on the lower right of screen.
Press the [Esc] key, return to the DIAGNOSTIC MODE MENU.
To Next Page
