Fuji Xerox DocuPrint 2050

Chapter 2 Troubleshooting
2.4 How to use PC Diag.
2-43
2.4.1.8 TEST PATTERN MODE MENU
2.4.1.8.1 Functions

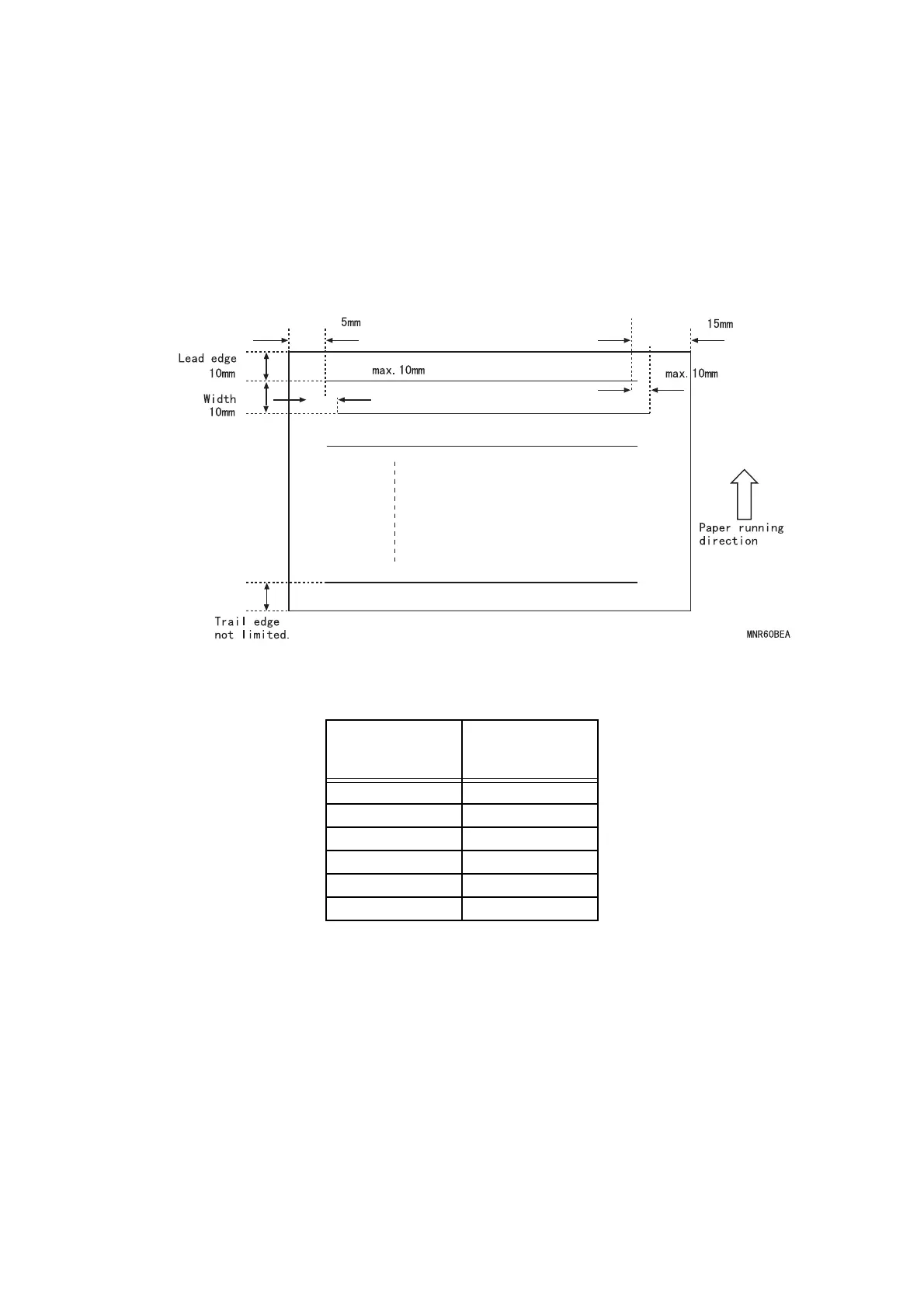

The Test Pattern Mode is used to print out the test patterns built in the device for operation
check.
The test printing self patterns are as follows:
Number of
horizontal solid
lines
A3P 41
B4P 35
LTL 20
A4L 20
B5L 17
A5L 13
