Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-24

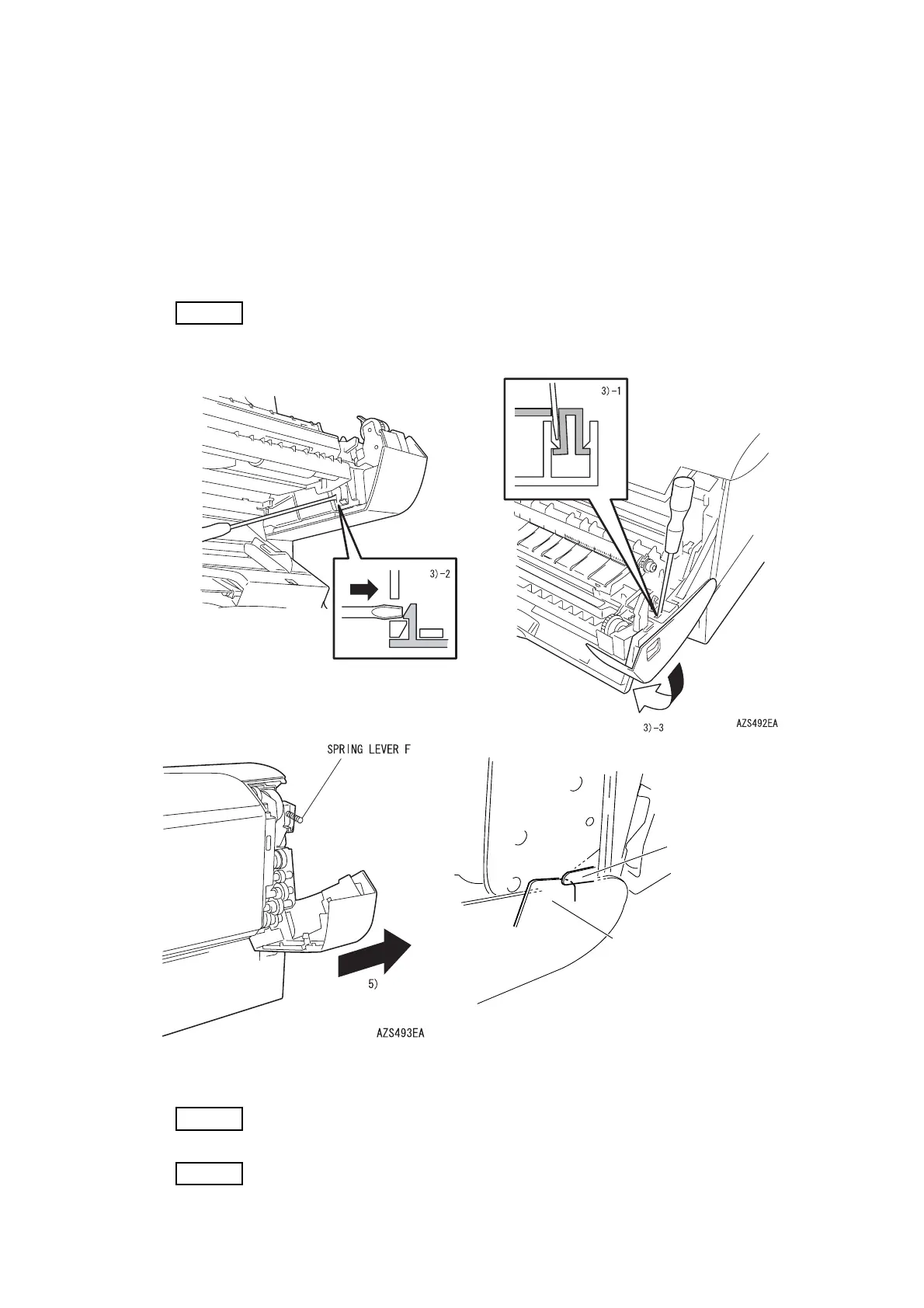

REP3.6 (SCC) COVER FRONT RIGHT (PL3.1.30)
<Removal>
1) Pull the LEVER FRONT R (PL8.1.11) and LEVER FRONT L (PL8.1.12) concurrently toward you,
open the COVER ASSY FRONT.
2) Open the TRAY ASSY FRONT CL (PL3.2.1).
3) Release the three hooks of the COVER FRONT RIGHT and rotate the COVER FRONT RIGHT.
4) Close the TRAY ASSY FRONT CL and the COVER ASSY FRONT.
NOTE
Be careful not to lose the SPRING LEVER F (PL8.1.25), because spring may be
dropped by the next procedure.
5) Remove the COVER FRONT RIGHT to the right.
<Replacement>
Perform the removal procedures in the reverse order.
NOTE
Attach the rib of COVER FRONT LEFT to the inside of the rib of the FRAME
FRONT (PL8.1.2).
NOTE
After completion, confirm the LEVER FRONT R (PL8.1.11) movement.
AZS501CA
The rib of the
FRAME FRONT (PL8.2)
The rib of the
COVER FRONT RIGHT
