Chapter 4 Disassembly/Assembly and Adjustment
4.2 Disassembly/Assembly
4-23
REP3.5 PAD ASSY RETARD TRAY (PL3.1.23)
<Removal>
1) Remove the CASSETTE ASSY 250 CL from the printer.

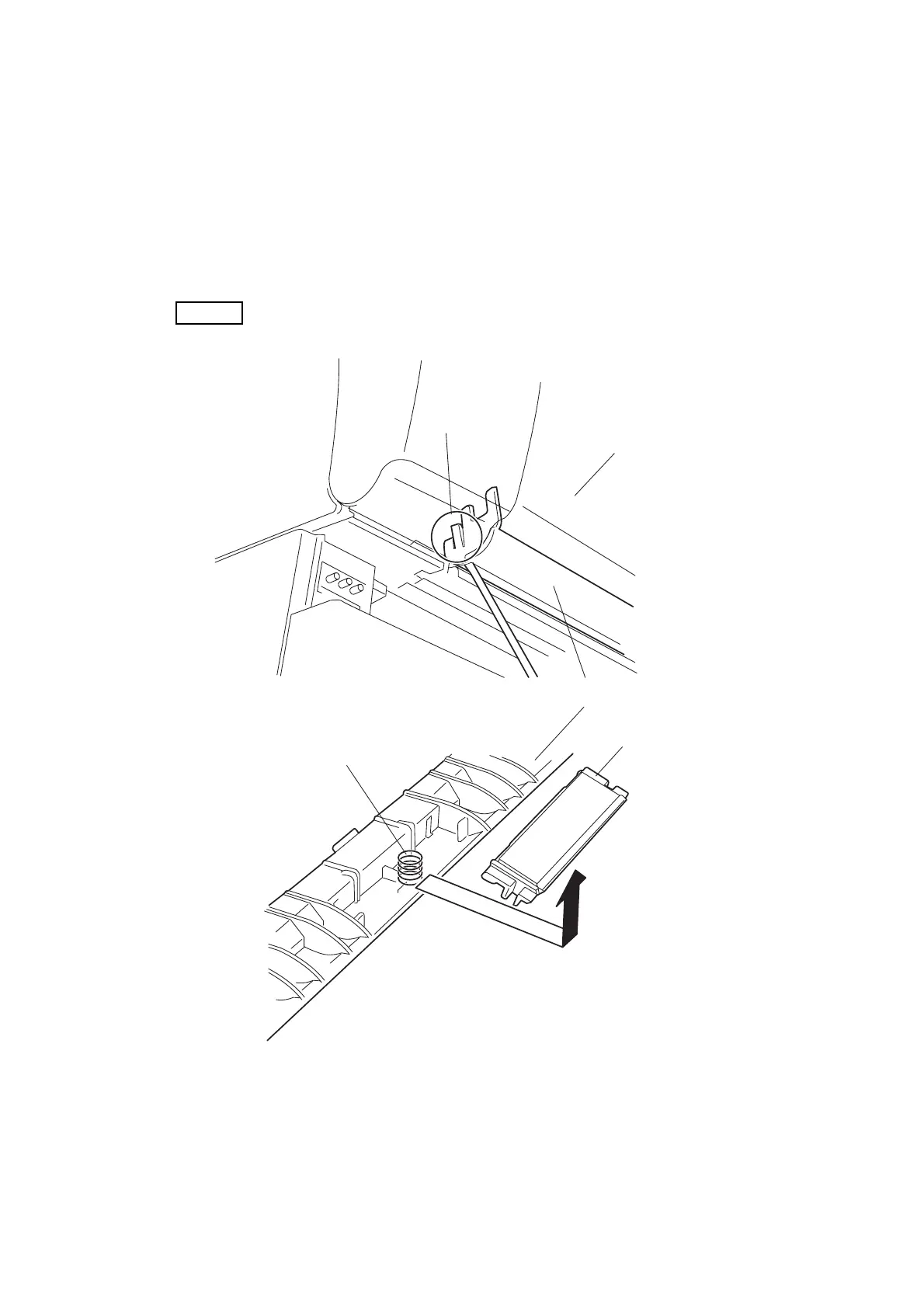

2) Release the hook using the small screwdriver through the left and right holes of FRAME BASE
RTD TRAY HN (PL3.1.22), remove the FRAME BASE RTD TRAY HN.
3) Remove the PAD ASSY RETARD TRAY and SPRING RETARD TRAY (PL3.1.24) from the
FRAME BASE RTD TRAY HN.
NOTE
When removing the PAD ASSY RETARD TRAY, be careful not to touch the rubber
part.
<Replacement>
Perform the removal procedures in the reverse order.
Hook
TRAY ASSY FRONT
FRAME BASE RTD TRAY HN
SPRING RETARD TRAY
PAD ASSY RETARD TRAY
AZS489CA
2)
3)
To Next Page
